RCF SUB 705‑AS MK3 | 15″ – 131 dB | High-Power Active Subwoofer with DSP

$1,149.00

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

RCF SUB 705‑AS MK3 | 15″ – 131 dB | High-Power Active Subwoofer with DSP

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

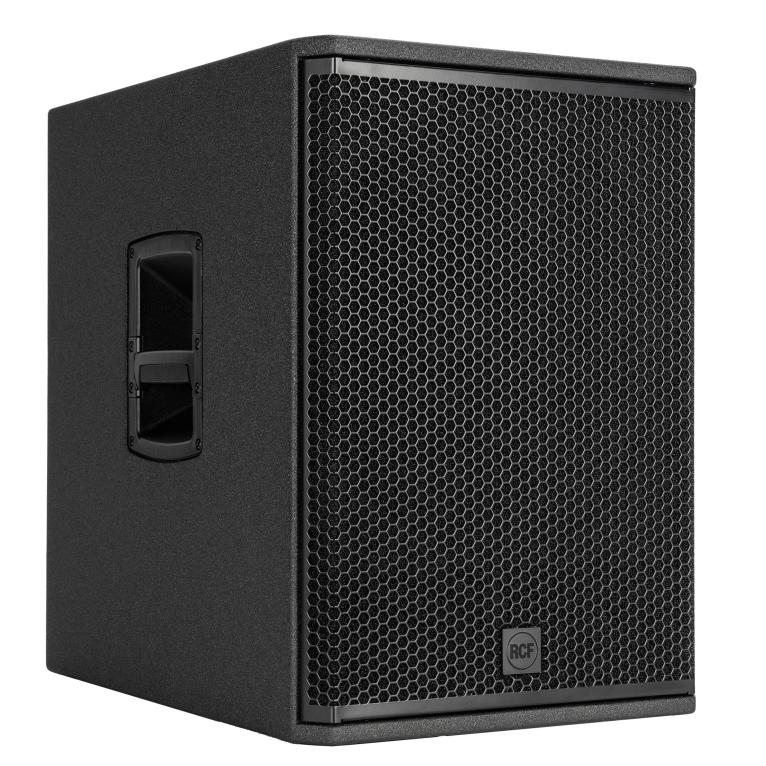

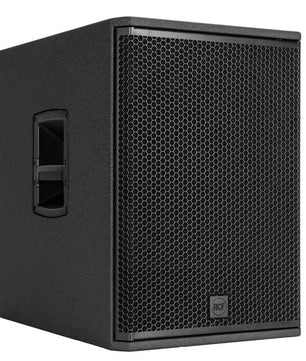

The SUB 705-AS mk3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 705-AS MK3 is perfect for small to mid-sized venues and portable applications.

FEATURES:

1400 Watt Class-D Amplifier
15” Woofer, bass reflex housing
Stereo Crossover
Switchable Crossover Frequencies
Polarity-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
Bass Motion Control excursion management

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response:
40 Hz ÷ 120 Hz
Max SPL @ 1m:
131 dB
TRANSDUCERS
Woofer:
15'', 3.0'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
PROCESSOR SECTION
Hi-Pass Frequencies:
110 Hz
Low-Pass Frequencies:
80 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter

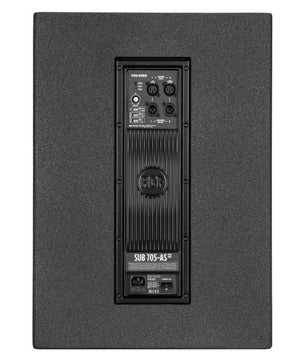

Controls:
Volume, EQ, Phase, Xover
POWER SECTION
Total Power:
1400 W Peak, 700 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
VDE
STANDARD COMPLIANCE
Safety agency:
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
Baltic birch plywood
Handles:
One each side

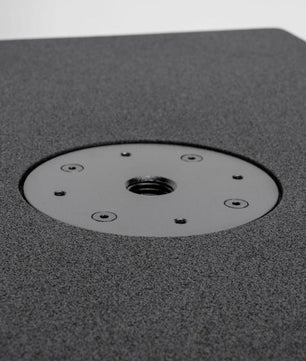

Pole mount/Cap:
Yes
Grille:
Steel with clothing
Color:
Black
SIZE
Height:
598 mm / 23.54 inches
Width:
420 mm / 16.54 inches
Depth:
590 mm / 23.23 inches
Weight:
27.5 kg / 60.63 lbs
SHIPPING INFORMATION
Package Height:
648 mm / 25.51 inches
Package Width:
638 mm / 25.12 inches
Package Depth:
478 mm / 18.82 inches
Package Weight:
32.4 kg / 71.43 lbs
