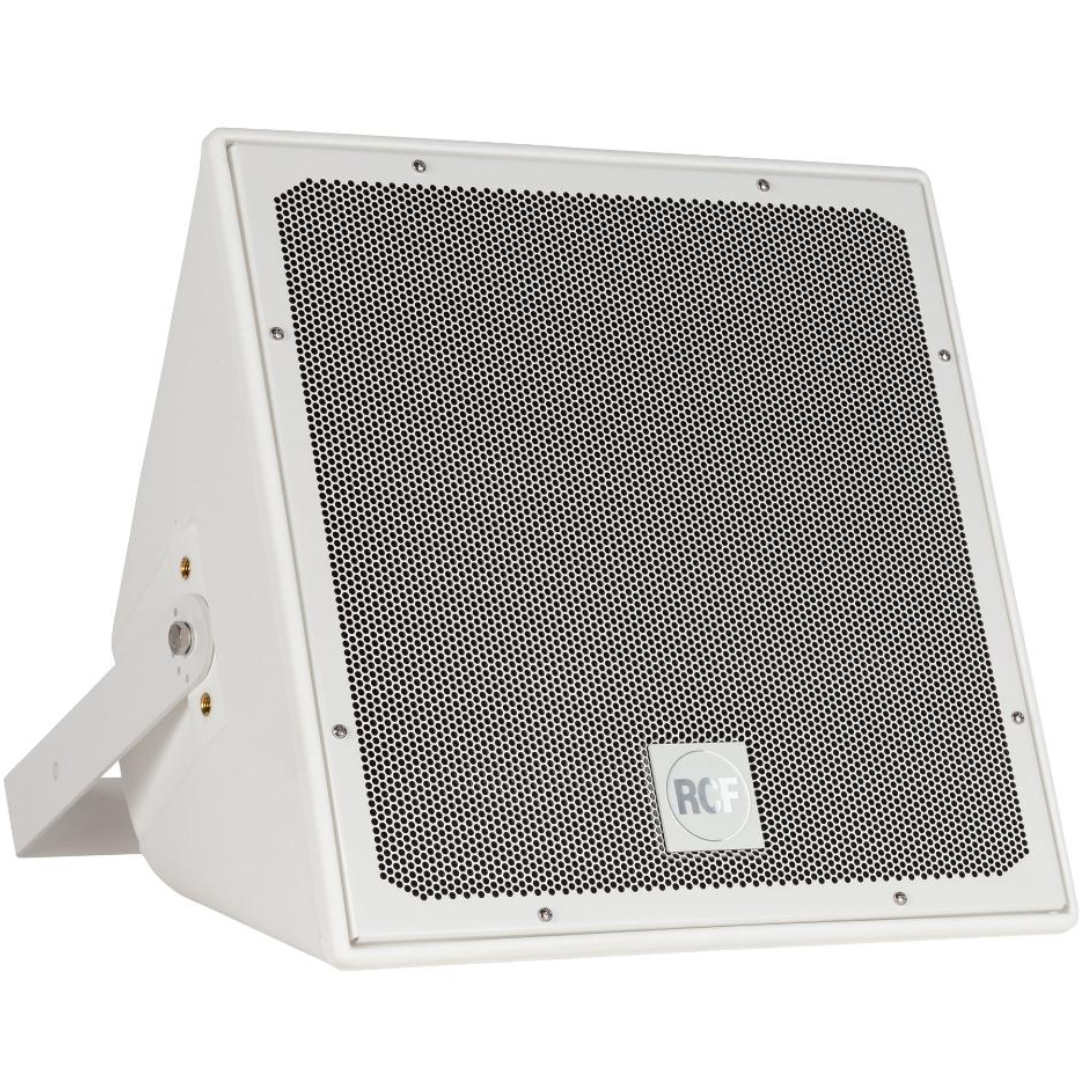

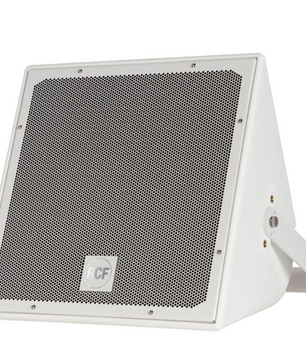

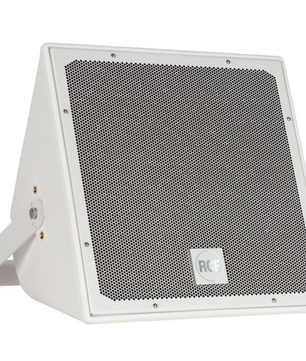

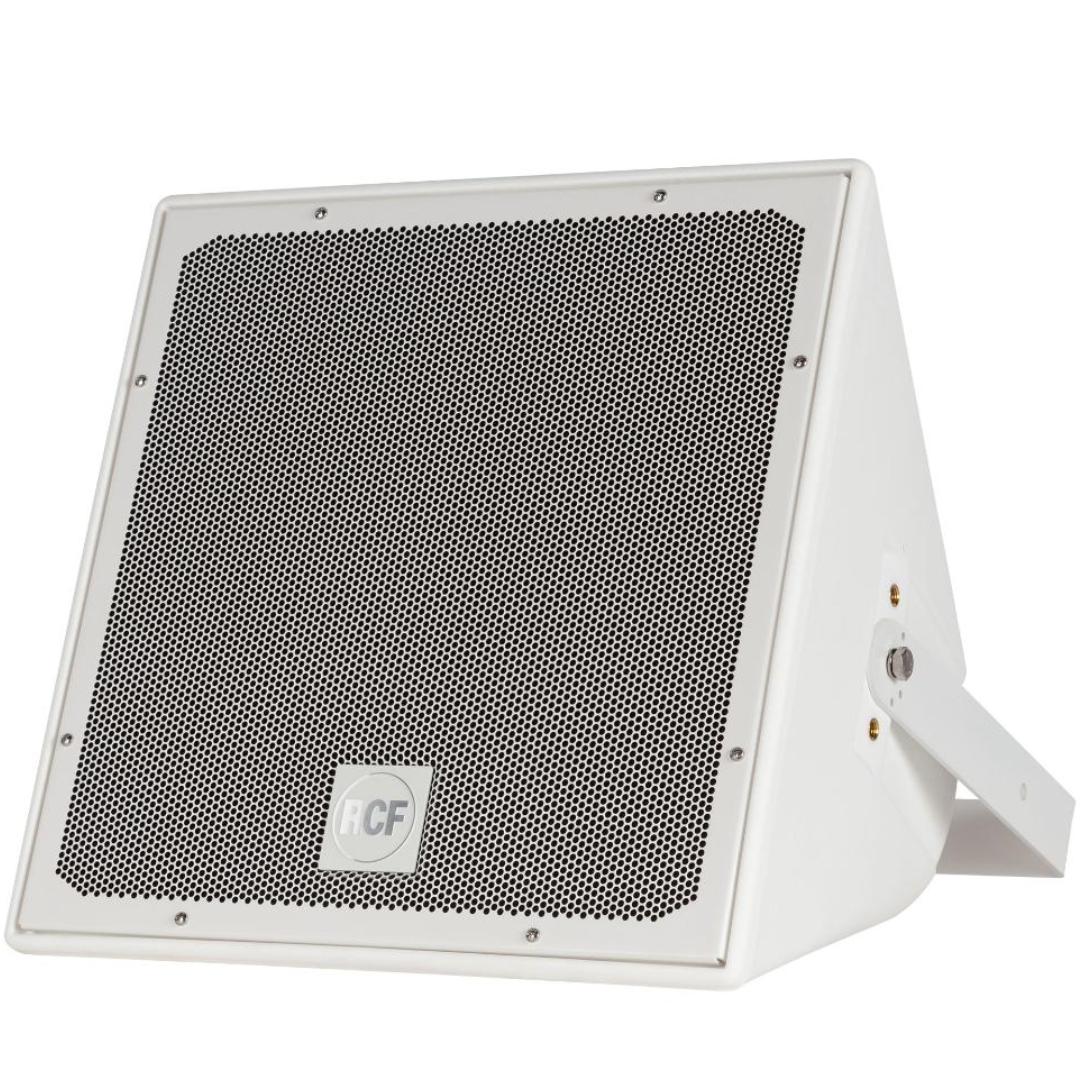

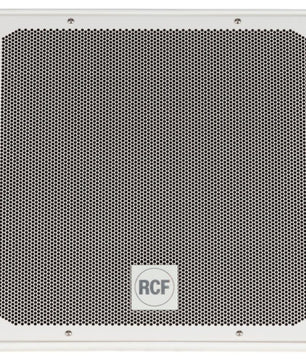

RCF P3115-T-W | 100V Coaxial Weatherproof Speaker with 15" Woofer & IP55 Rating

$1,499.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Outdoor-Rated Coaxial Loudspeaker with Transformer for 70V/100V Systems

The RCF P3115-T-W is a weatherproof full-range coaxial loudspeaker engineered for high-quality sound in both indoor and outdoor installations. Designed for distributed audio systems, this speaker features a built-in 100V line transformer, wide 90° x 60° dispersion, and durable IP55-rated construction, making it an excellent solution for stadiums, arenas, theme parks, and large public spaces.

RCF P3115-T-W Competitive Differences

Built-in 100V line transformer with selectable power taps (30W, 60W, 120W)
129 dB maximum SPL with 300W RMS power handling
Coaxial design with 15" woofer and 1.3" compression driver for wide frequency coverage and clarity
90° x 60° constant directivity horn for optimized sound dispersion
Weatherproof, UV-protected cabinet with IP55 rating for outdoor durability

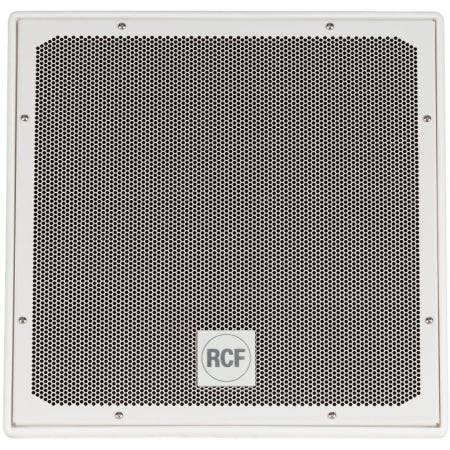

Aluminum grille with water-repellent backing and rotatable logo
Active Mosfet Compression Driver Protection (AMCDP) for increased driver longevity
LICC crossover network and CMD horn alignment for improved transient response and uniform coverage

RCF P3115-T-W Description

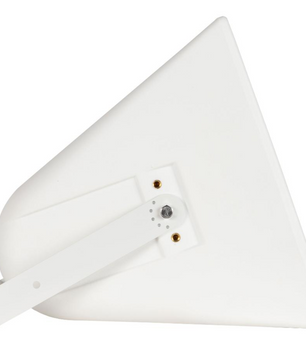

The RCF P3115-T-W is a high-performance coaxial two-way loudspeaker built for versatility in distributed audio systems using 70V/100V lines. Equipped with a built-in transformer and selectable power taps (30W, 60W, 120W), it is ideal for installations requiring long cable runs and multiple speakers. The 15" neodymium woofer and 1.3" neodymium compression driver provide high output and intelligible sound across a 75 Hz – 20,000 Hz frequency range. Its constant directivity horn delivers 90° horizontal and 60° vertical coverage, ensuring even sound distribution across large areas. With a weatherproof IP55-rated cabinet, UV-resistant polyethylene enclosure, and powder-coated aluminum grille with waterproof cloth, the P3115-T-W withstands harsh environmental conditions. The included stainless steel U-bracket with spacers supports 90° mounting flexibility and secure installation. Designed for seamless array or standalone use, the speaker includes 12 M10 suspension points for mounting in any orientation. RCF’s CMD (Coverage Matching Design) and LICC (Low Impedance Compensated Crossover) technologies enhance system stability, phase coherence, and audio fidelity, making the P3115-T-W a robust and reliable component for any pro audio installation.

P3115-T-W Features

300W RMS / 1200W peak power handling
129 dB maximum SPL output
75 Hz – 20,000 Hz frequency response
15" neodymium woofer with 2.5" voice coil
1.3" neodymium compression driver with 1.75" voice coil
90° x 60° constant directivity horn
Built-in 100V transformer with 30W / 60W / 120W selectable taps
AMCDP – Active Mosfet Compression Driver Protection
LICC crossover for reduced delay and improved transient response
CMD horn design for uniform high-frequency coverage
Weatherproof IP55-rated enclosure for outdoor installations

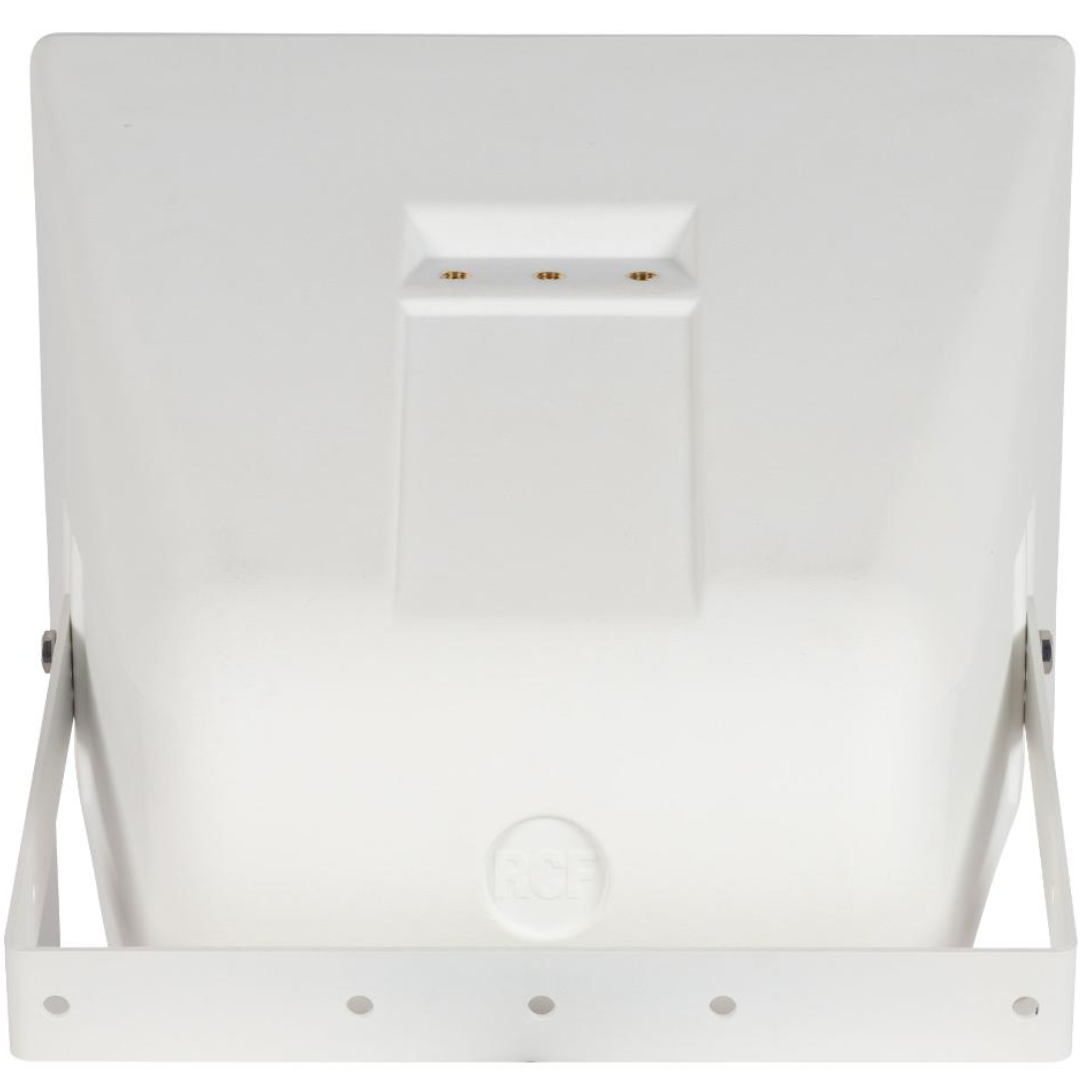

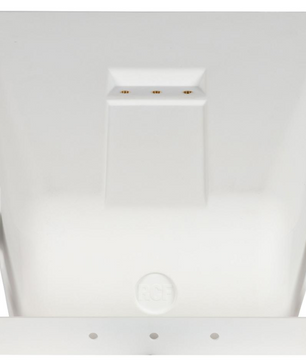

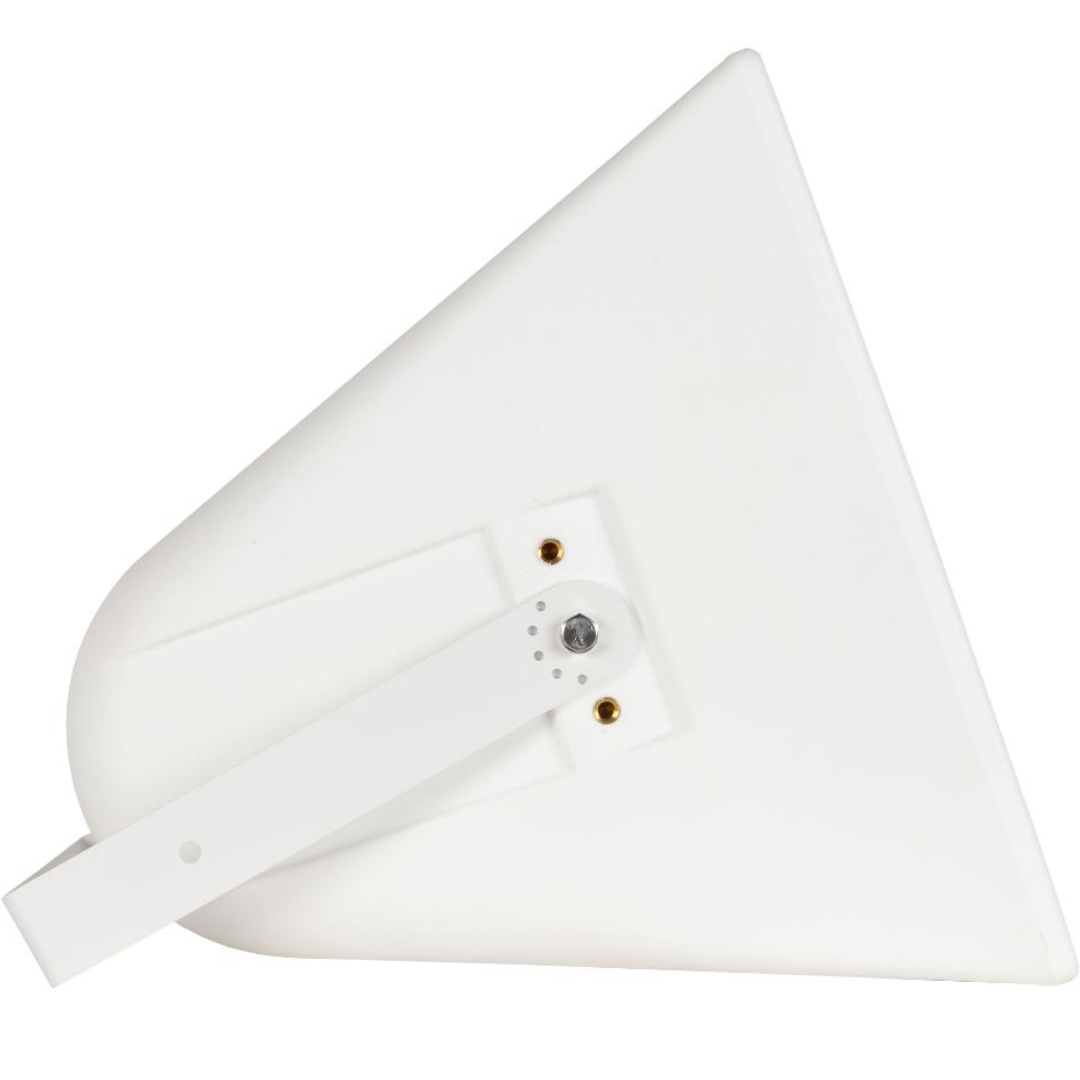

UV-protected rotomolded cabinet with stainless steel U-bracket
12x M10 mounting points for flexible installation
Rotatable logo for vertical or horizontal orientation

P3115-T-W Specifications

Frequency Response (-10 dB): 75 Hz – 20,000 Hz
Max SPL: 129 dB
Horizontal Coverage: 90°
Vertical Coverage: 60°
Directivity Index Q: 13
Sensitivity: 98 dB
Nominal Impedance: 16 ohms
Crossover Frequency: 1300 Hz
Compression Driver: 1.3", 1.75" voice coil
Woofer: 15", 2.5" voice coil
Built-in Transformer: 100V line
Power Taps: 30W (333 ohm), 60W (167 ohm), 120W (83 ohm)
Input Connector: Neoprene cable
Cabinet Material: PE Low Density
Grille: Aluminum with waterproof cloth backing
IP Rating: IP55 (weatherproof)
Safety Certification: CE Compliant
Color Options: Grey, White (RAL 9003)
Product Dimensions (H x W x D): 18.23" x 18.23" x 17.05" (463 mm x 463 mm x 433 mm)
Product Weight: 40.57 lbs (18.4 kg)
Shipping Dimensions (H x W x D): 20.87" x 19.29" x 19.29" (530 mm x 490 mm x 490 mm)
Shipping Weight: 51.15 lbs (23.2 kg)
