RCF P1108-T | 100V Weatherproof Speaker with 8" Woofer & 121dB SPL Output

Compact Weatherproof Speaker for 100V Audio Installations

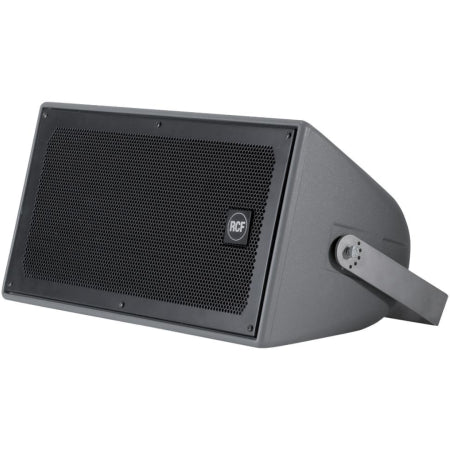

The RCF P1108-T is a full-range, weatherproof loudspeaker built for professional 100V line applications in both indoor and outdoor environments. With a rugged IP55-rated enclosure, 8" woofer, and a precision neodymium compression driver, this compact speaker delivers clarity, durability, and wide coverage, making it ideal for commercial installations, public spaces, and sports venues.

RCF P1108-T Competitive Differences

• Built-in 100V line transformer with selectable power taps (15W, 30W, 60W)
• 121 dB maximum SPL from a compact enclosure
• 8" woofer with 1.5" voice coil and 1" neodymium compression driver with 1.4" voice coil
• Wide 90° x 60° dispersion via CMD (Coverage Matching Design) horn
• Weatherproof IP55 cabinet with UV protection and rotatable horn for flexible installation
• LICC crossover for low distortion and better phase coherence
• AMCDP – Active Mosfet Compression Driver Protection for long-term reliability
• Rugged aluminum grille with water-repellent backing and rotatable logo

RCF P1108-T Description

The RCF P1108-T is designed to provide premium sound reinforcement in challenging environmental conditions. Engineered with a two-way system featuring an 8" low-frequency woofer and a neodymium high-frequency compression driver, the speaker ensures consistent intelligibility and smooth coverage across its 80 Hz to 20,000 Hz frequency range. With a built-in 100V transformer offering three power tap selections (15W, 30W, 60W), the P1108-T is ideal for distributed audio applications where long cable runs or multiple speakers are required. RCF’s CMD horn provides a 90° x 60° dispersion pattern, and its rotatable design allows for both vertical and horizontal mounting, increasing installation flexibility. Built to endure, the single-piece rotomolded cabinet is fully UV-resistant and meets IP55 standards for outdoor protection. An electroplated steel U-bracket and four M8 mounting points allow for secure and adjustable installation. The aluminum grille is powder-coated and backed with water-repellent fabric, while the front logo can be rotated for different mounting orientations.

P1108-T Features

• 100W RMS / 400W peak power handling
• 121 dB maximum SPL
• 80 Hz – 20,000 Hz frequency response
• 8" woofer with 1.5" voice coil
• 1" compression driver with 1.4" voice coil
• Built-in 100V transformer with 15W / 30W / 60W power taps
• Rotatable CMD horn for 90° x 60° constant directivity
• LICC (Low Impedance Compensated Crossover) network
• AMCDP – Active Mosfet Compression Driver Protection
• IP55 weatherproof cabinet with UV protection
• Powder-coated aluminum grille with water-repellent backing
• Rotatable logo for vertical/horizontal use
• Electroplated steel U-bracket and 4x M8 mounting inserts

P1108-T Specifications

• Frequency Response (-10 dB): 80 Hz – 20,000 Hz
• Max SPL: 121 dB
• Horizontal Coverage: 90°
• Vertical Coverage: 60°
• Directivity Index Q: 11
• Sensitivity: 95 dB
• Nominal Impedance: 16 ohms
• Crossover Frequency: 2200 Hz
• Compression Driver: 1" with 1.4" voice coil
• Woofer: 8" with 1.5" voice coil
• Input Connector: Neoprene cable
• Built-in Transformer: 100V line
• Power Taps: 15W (667 ohm), 30W (333 ohm), 60W (167 ohm)
• Cabinet Material: PE Low Density (rotomolded)
• Grille: Aluminum with waterproof cloth backing
• IP Rating: IP55 (weatherproof)
• Safety Certification: CE Compliant

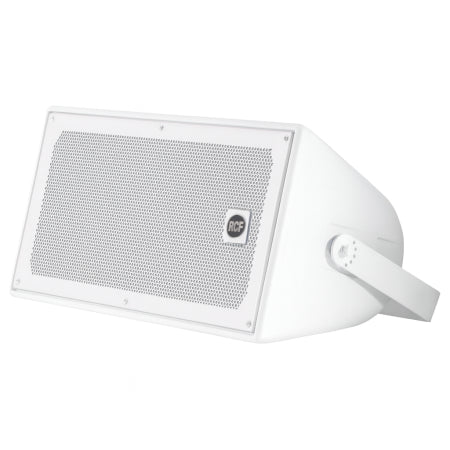

• Color Options: Grey, White (RAL 9003)
• Product Dimensions (H x W x D): 10.47" x 19.41" x 9.84" (266 mm x 493 mm x 250 mm)
• Product Weight: 26.01 lbs (11.8 kg)
• Shipping Dimensions (H x W x D): 21.02" x 11.38" x 11.38" (534 mm x 289 mm x 289 mm)
• Shipping Weight: 29.1 lbs (13.2 kg)
