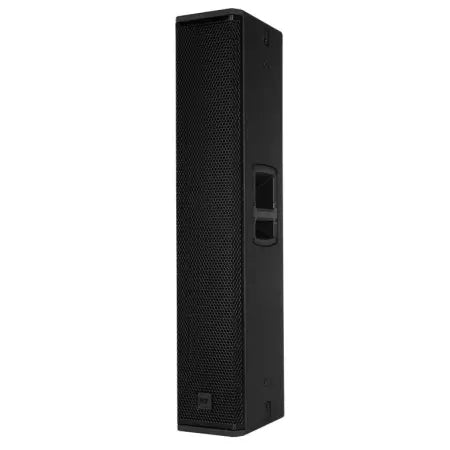

RCF NXL 24A Mk2 | 4×6″ – 132 dB | Full-Range Column Speaker

High-output column array speaker for live sound and installations

RCF NXL 24A MK2 is a compact active column line array speaker designed for live sound reinforcement, DJ setups, clubs, and rental applications. With 2100W of power and advanced DSP, it delivers precise, wide-area coverage and exceptional sound quality at up to 132 dB SPL. Ideal for medium-sized events, this speaker combines high-performance transducers, flexible rigging options, and rugged portability in a sleek, easy-to-deploy format.

RCF NXL 24A MK2 Competitive Differences

• 2100W Class-D amplifier for high output with minimal distortion
• 100° x 30° constant directivity for wide and consistent coverage
• 4 x 6" high-power neodymium woofers for punchy lows and midrange clarity
• 3" titanium compression driver with neodymium magnet for extended highs
• FiRPHASE and Bass Motion Control for precise phase alignment and deep bass
• No fan design – aluminum heat sink for silent and efficient cooling
• Durable Baltic birch plywood cabinet with rigging points and ergonomic handles
• Versatile installation options: pole-mounted, flown, or vertically coupled

RCF NXL 24A MK2 Description

The RCF NXL 24A MK2 is engineered from the ground up for professional audio performance in compact line array form. This active two-way speaker delivers an impressive 132 dB max SPL through its advanced 2100W Class-D amplifier. Its design incorporates four neodymium 6" woofers and a 3" titanium compression driver mounted on an asymmetrical waveguide, enabling focused horizontal and vertical sound projection without needing to tilt the enclosure. Built to handle a wide frequency range from 60 Hz to 20 kHz, the NXL 24A MK2 performs exceptionally as a standalone system or combined with subwoofers for full-range sound. RCF’s proprietary FiRPHASE technology and Bass Motion Control ensure ultra-linear frequency response and phase coherence, resulting in transparent sound and tight, musical bass. With quick-lock rigging points, side handles, and a robust 15 mm Baltic birch plywood cabinet, this speaker is ready for portable setups or permanent installs. Whether used by touring professionals, DJs, or fixed installations, the NXL 24A MK2 delivers consistent coverage and high-output clarity in a compact form.

NXL 24A MK2 Features

• Active two-way column line array speaker
• 4 x 6" neodymium woofers with 1.5" voice coils
• 1 x 3" titanium neodymium compression driver
• 100° horizontal x 30° vertical coverage pattern
• Up to 132 dB max SPL
• 60 Hz – 20,000 Hz frequency response
• FiRPHASE processing and Bass Motion Control
• Convection-cooled, fanless design
• Selectable EQ presets: Linear, 2 Speakers, High-Pass
• Steel grille and black textured finish
• 35 mm pole mount insert
• Compatible with flying and truss-mount accessories

NXL 24A MK2 Specifications

• Frequency Response: 60 Hz – 20,000 Hz
• Max SPL: 132 dB
• Coverage Angle: 100° (H) x 30° (V)
• HF Driver: 1 x 1.4" (3" v.c.) titanium, neodymium
• LF Drivers: 4 x 6" (1.5" v.c.) neodymium
• Total Peak Power: 2100W (700W HF + 1400W LF)
• Input Connectors: Combo XLR/¼" jack
• Output Connector: XLR
• Power Connections: Powercon TRUE1 TOP IN/OUT
• Cooling: Convection-cooled (no fan)
• Cabinet: 15 mm Baltic birch plywood
• Rigging Points: 4 x M8 and 4 x Quick Lock
• Handles: 2 side handles
• Grille: Steel
• Dimensions (H x W x D): 41.38 x 7.8 x 11.43 in (1051 x 198 x 290.4 mm)
• Weight: 53.79 lbs (24.4 kg)
• Shipping Dimensions (H x W x D): 12.6 x 42.52 x 9.06 in (320 x 1080 x 230 mm)
• Shipping Weight: 60.63 lbs (27.5 kg)
• EAN (115V): 8024530019877
• EAN (220-240V): 8024530019884
