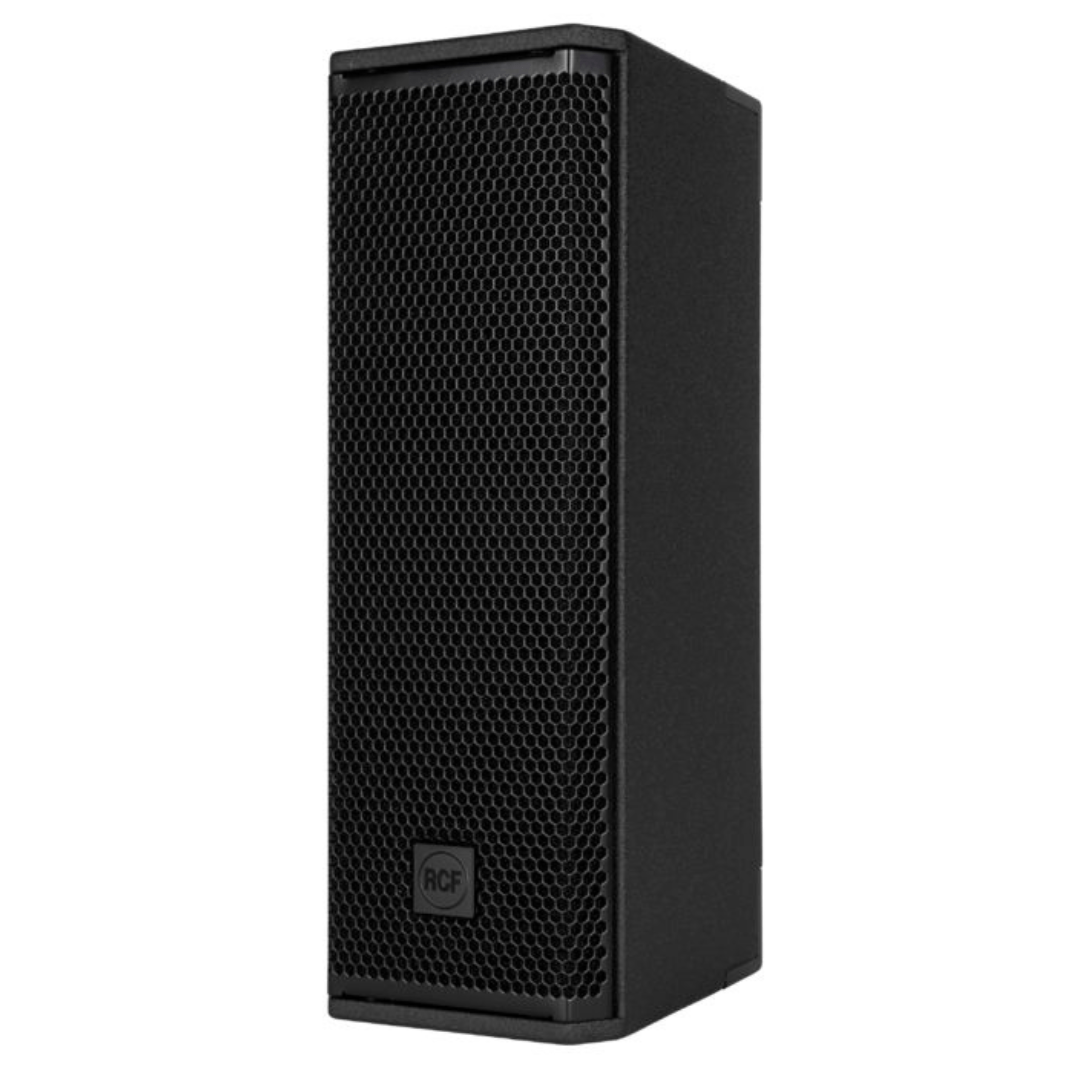

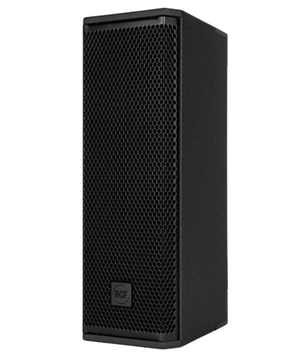

RCF NXL 14-A | 2×6″ Column Speaker – 128 dB | Compact Powered Array with DSP

Compact Active Speaker for Powerful Audio Performance

The RCF NXL 14-A is the most compact active speaker in the NXL series, designed for live sound applications where space and power are essential. With its dual 6" woofers and 1.75" Precision Transducers PKX driver, this speaker delivers high-definition sound and outstanding vocal clarity. Perfect for vocal reproduction, immersive setups, or as a fill speaker, the NXL 14-A provides professional-grade performance in a portable, sleek design. Available in both black and white finishes, it seamlessly integrates into any environment.

RCF NXL 14-A Competitive Differences

• Compact design with dual 6" woofers and 1.75" PKX driver for precision sound
• 2,100W two-channel Class-D amplifier—50% more powerful than previous models
• Rotatable TRW waveguide for optimized coverage in any setup
• Preset selection for different sound profiles: Linear, Boost, and Stage
• Energy-efficient design with no need for cooling fans
• Convection-cooled amplifier attached to a solid aluminum heat exchanger
• Lightweight and durable plywood cabinet with steel grille

RCF NXL 14-A Description

The RCF NXL 14-A active speaker is engineered for professionals who demand both portability and exceptional audio quality. With its symmetrical design and advanced transducer technology, the NXL 14-A delivers clear, powerful sound across a wide range of live sound applications. Whether you're using it for vocal reproduction, as part of a compact live system, or in an immersive setup, this speaker excels in providing precision and definition. The NXL 14-A’s 2,100W Class-D amplifier is the most powerful in its class, ensuring that you’ll have the sound pressure levels you need without sacrificing clarity. It’s designed with an ultra-fast attack, realistic transient response, and low power loss, all while maintaining energy efficiency. The amplifier features an advanced safety limiter, preserving the integrity of the input signal even at high levels. With preset sound profiles for different applications—Linear for clarity, Boost for enhanced loudness, and Stage for optimal frontfill performance—the NXL 14-A is versatile enough for any venue or event.

NXL 14-A Features

• Symmetrical design with dual 6" woofers and 1.75" PKX compression driver
• 2,100W Class-D amplifier with 700W peak for high frequencies and 1,400W peak for low frequencies
• Rotatable TRW waveguide for optimized sound dispersion
• Energy-efficient design with no cooling fan required
• Selectable sound presets: Linear, Boost, Stage
• Convection-cooled amplifier with aluminum heat exchanger
• Lightweight plywood cabinet with durable steel grille
• Available in black (RAL 9005) or white (RAL 9003) finishes

NXL 14-A Specifications

• Frequency response: 70 Hz – 20,000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 70°
• Compression driver: 1 x 1.0" neo, 1.75" voice coil
• Woofer: 2 x 6.0" neo, 2.0" voice coil
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu
• Processor: Crossover at 1200 Hz, Excursion Protection, Fast Limiter
• Power connections: Powercon TRUE1 TOP IN/OUT
• Dimensions: 22.32" (H) x 7.76" (W) x 10.63" (D)
• Weight: 28.22 lbs

What's in the Box

• 1 x RCF NXL 14-A Active Speaker
• 1 x Power Cable
• 1 x User Manual
• NOTE: To pole mount this speaker, RCF PMK60678 is required (not included)

NXL 14-A UPC Codes

• Black: 618528606866
• White: 618528606859
