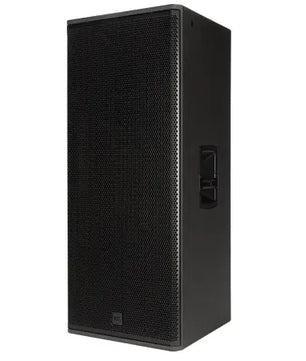

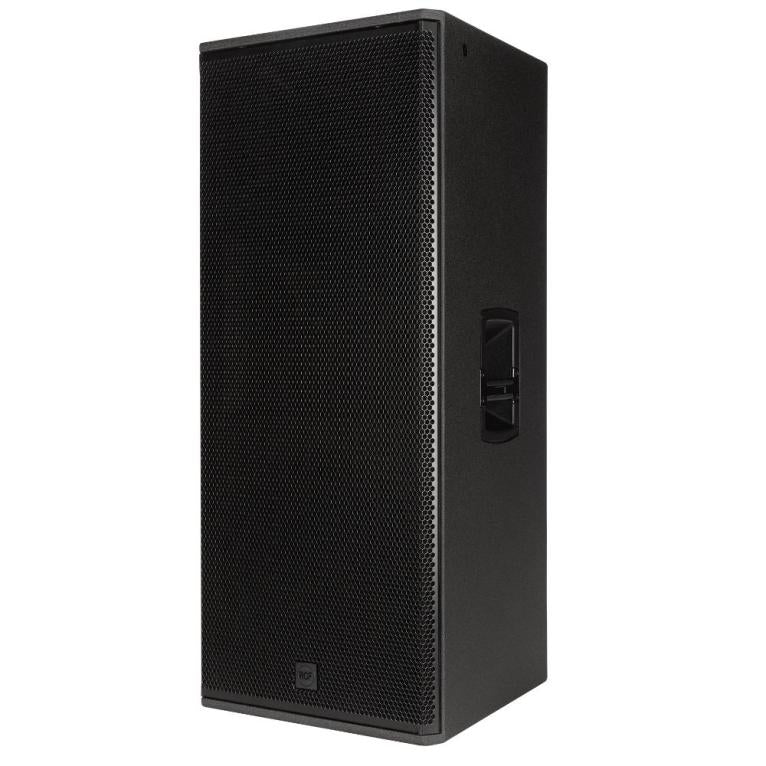

RCF NX 985A | 15in - 138dB

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer. Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

FEATURES
Up to 138 dB Sound Pressure Level
2100W Class-D Amplifier
40-20000 Hz linear frequency response
1.75" Neodymium Compression Driver with Peek diaphragm
8" Midrange, 2.5" v.c.
15" High Power Woofer
Bass Motion Control and FiRPHASE processing
M10 Rigging Points
IP Rated Powercon TRUE1 TOP IN/OUT

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS
Frequency Response:
40 Hz ÷ 20000 Hz
Max SPL @ 1m:
138 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°

TRANSDUCERS
Compression Driver:
1 x 1.0'' neo, 1.75'' v.c
Midrange:
8'' neo, 2.5'' v.c
Woofer:
15'', 3.0'' v.c

INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
Combo XLR/Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu

PROCESSOR SECTION
Crossover Frequencies:
Bass/Mid:320Hz, Mid/High:1200Hz
Protections:
Thermal, Excurs., RMS
Limiter:
Soft Limiter
Controls:
Linear, 2 Speakers, High Pass, Volume

POWER SECTION
Total Power:
2100 W Peak
High frequencies:
200 W Peak
Mid frequencies:
500 W Peak
Low frequencies:
1400 W Peak
Cooling:
Convection
Connections:
Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE
Safety agency:
CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
Plywood
Hardware:
3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear
Handles:
1 x Side
Grille:
Steel
Color:
Black

SIZE
Height:
1075 mm / 42.32 inches
Width:
461 mm / 18.15 inches
Depth:
475 mm / 18.7 inches
Weight:
45 kg / 99.21 lbs

SHIPPING INFORMATIONS
Package Height:
530 mm / 20.87 inches
Package Width:
1110 mm / 43.7 inches
Package Depth:
490 mm / 19.29 inches
Package Weight:
51 kg / 112.44 lbs
