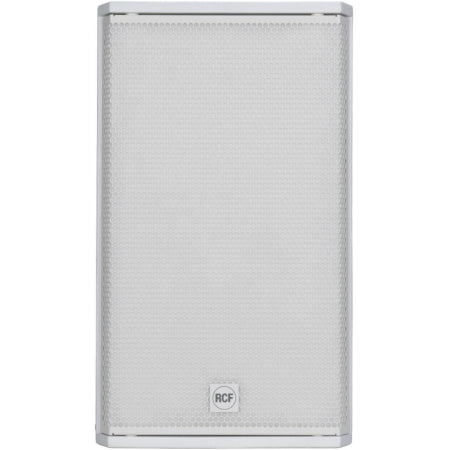

White 12-Inch Powered Loudspeaker for Pro Audio & Installations
The
RCF NX 932-A W is a high-powered, white-finish 2-way active loudspeaker designed for discerning audio professionals. Equipped with a 3" titanium compression driver, 12" neodymium woofer, and a
2100W Class-D amplifier, it delivers crystal-clear performance with
up to 132 dB SPL. Technologies like
FiRPHASE phase correction and
Bass Motion Control (BMC) ensure pristine audio reproduction, extended bass response, and minimal phase distortion. Rugged, tour-ready, and finished in white, this cabinet is perfect for AV integrators, touring companies, and event spaces where visual aesthetics and sound quality both matter.
RCF NX 932-A W Competitive Differences
-
2100W Class-D Bi-Amp Design: 1400W LF + 700W HF for wide dynamic range and low heat
-
3" Titanium Diaphragm Compression Driver: Ultra-clear high-frequency reproduction with low crossover point
-
12" Neodymium Woofer: Delivers tight low-end and accurate mids with a 2.5" voice coil
-
FiRPHASE DSP Technology: Provides consistent sound with zero-degree phase alignment
-
Bass Motion Control (BMC): Woofer excursion management eliminates the need for a high-pass filter
-
True Outdoor Protection: PowerCON TRUE1 TOP connectors ensure reliability in rugged environments
-
Tour-Ready Plywood Cabinet in White: Strong, sleek, and durable with versatile mounting options
RCF NX 932-A W Description
The
NX 932-A W brings exceptional audio clarity and high SPL in a compact white enclosure designed for performance and aesthetics. With a 3" titanium compression driver and a 12" neodymium woofer powered by a dual-channel 2100W amplifier, this speaker delivers precise highs, deep bass, and consistent coverage (100° x 70°), making it ideal for both mobile and installed sound systems.
Engineered with
RCF’s proprietary FiRPHASE filters and
BMC technology, it minimizes phase distortion and maximizes low-frequency extension. The convection-cooled amplifier and lightweight neodymium drivers make it powerful yet portable. Whether pole-mounted, flown, or used as a wedge monitor, the NX 932-A W is as versatile as it is powerful.
For touring, corporate events, houses of worship, or venues requiring clean, aesthetic integration, the NX 932-A W’s sleek white finish offers a refined look without compromising rugged reliability. Built-in M10 rigging points, quick-lock compatibility, and a PowerCON TRUE1 TOP power connection round out a system designed for today’s demanding environments.
NX 932-A W Features
- 2100W Class-D amplifier (1400W LF + 700W HF)
- Up to 132 dB max SPL
- 12" neodymium woofer with 2.5" voice coil
- 3" titanium compression driver
- 100° x 70° coverage via True Resistive Waveguide
- FiRPHASE DSP for zero-degrees phase response
- Bass Motion Control (BMC) for deeper, cleaner bass
- Selectable EQ modes: Linear, Boost, Stage
- Plywood enclosure with durable steel grille
- White finish ideal for discreet or design-focused applications
- 35 mm pole mount socket and 6x M10 rigging points
- PowerCON TRUE1 TOP IN/OUT connectors
NX 932-A W Specifications
-
Frequency Response: 45 Hz – 20,000 Hz
-
Max SPL: 132 dB
-
Horizontal Coverage: 100°
-
Vertical Coverage: 70°
-
Compression Driver: 3" v.c., 1.4" exit, neodymium
-
Woofer: 12", 2.5" voice coil, neodymium
-
Crossover Frequency: 700 Hz
-
Protections: Thermal, RMS
-
Limiter: Soft Limiter
-
Controls: Linear, Boost, Stage, Volume
-
Input Connectors: Combo XLR/Jack
-
Output Connectors: XLR
-
Input Sensitivity: -2 dBu / +4 dBu
-
Cooling: Convection (no fan)
-
Cabinet Material: Plywood
-
Finish: White
-
Rigging Points: 6x M10 + 2 Quick Lock seats
-
Pole Mount: 35 mm insert
-
Handles: 1 side handle
-
Grille: Powder-coated steel
-
Power Connections: PowerCON TRUE1 TOP IN/OUT
-
Dimensions (H x W x D): 24.41" x 14.25" x 15.94" (620 x 362 x 405 mm)
-
Weight: 50.49 lbs (22.9 kg)
-
Shipping Dimensions: 26.22" x 18.15" x 16.38"
-
Shipping Weight: 57.32 lbs (26 kg)
