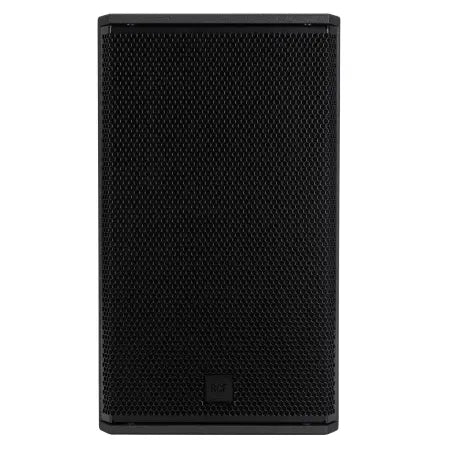

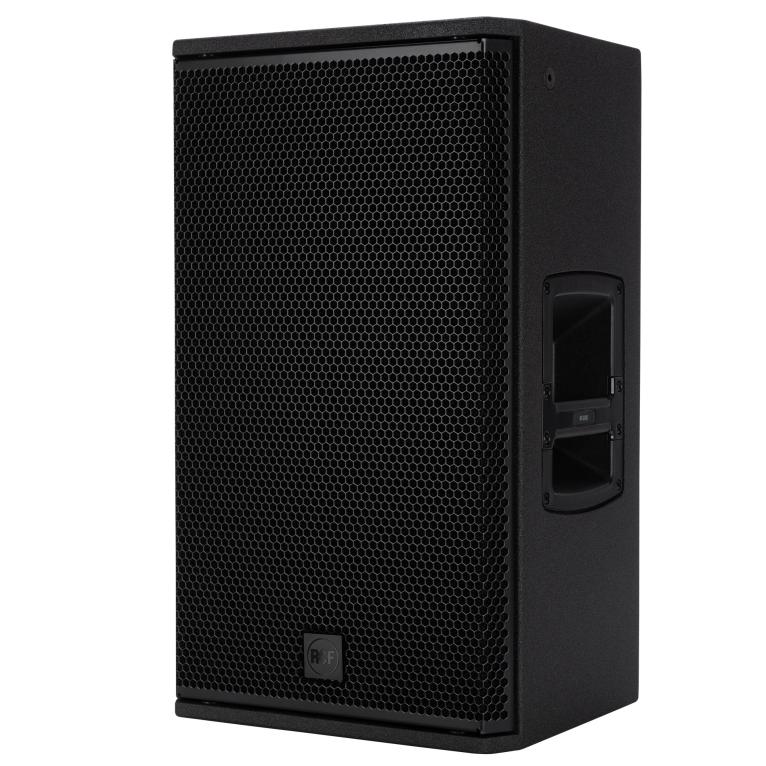

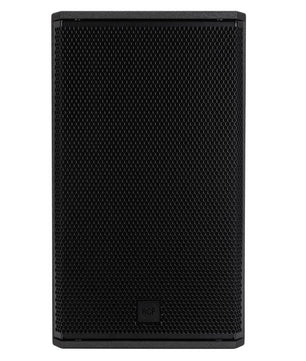

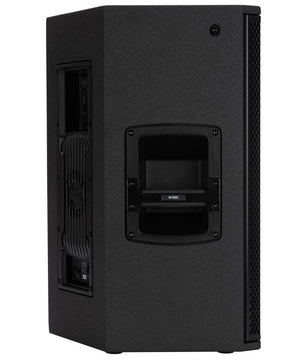

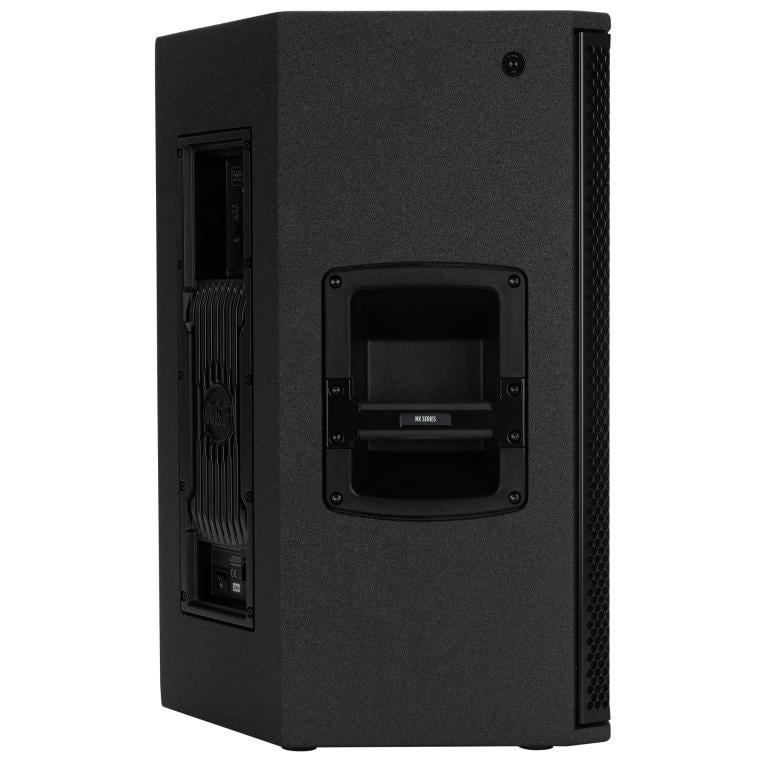

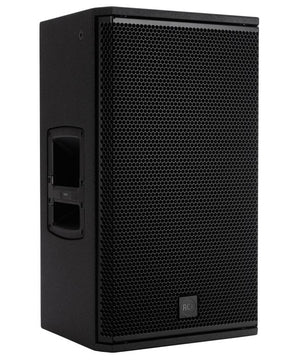

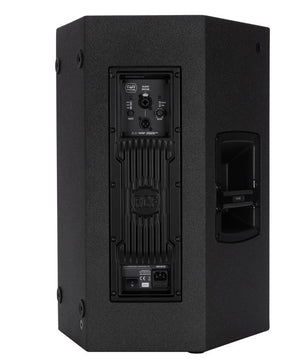

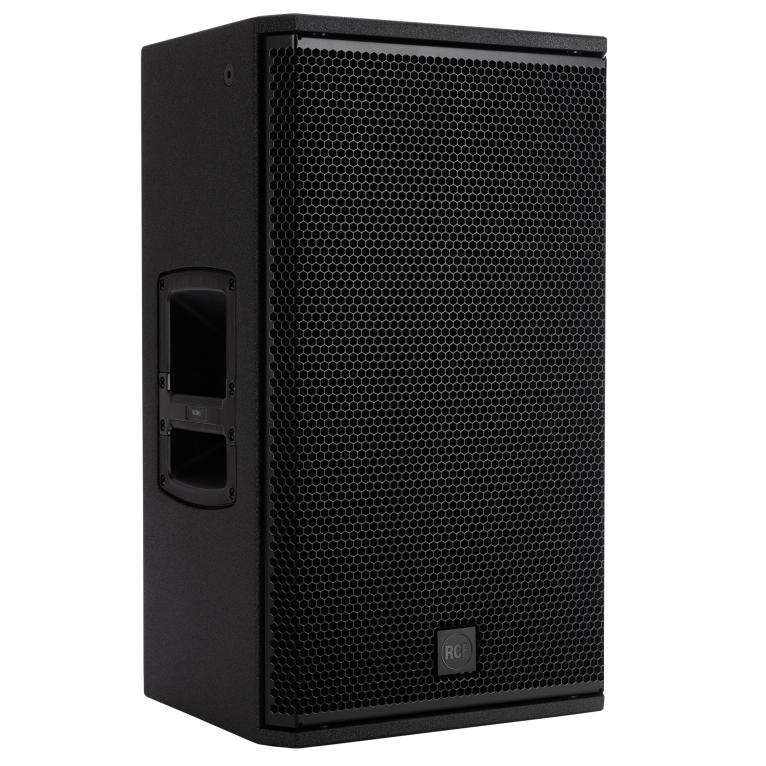

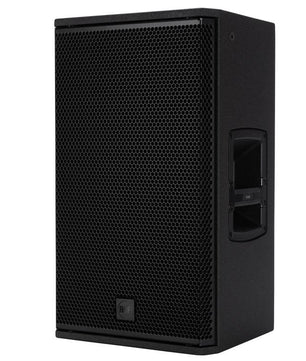

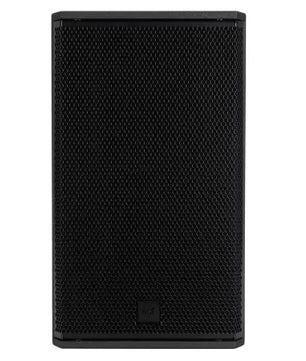

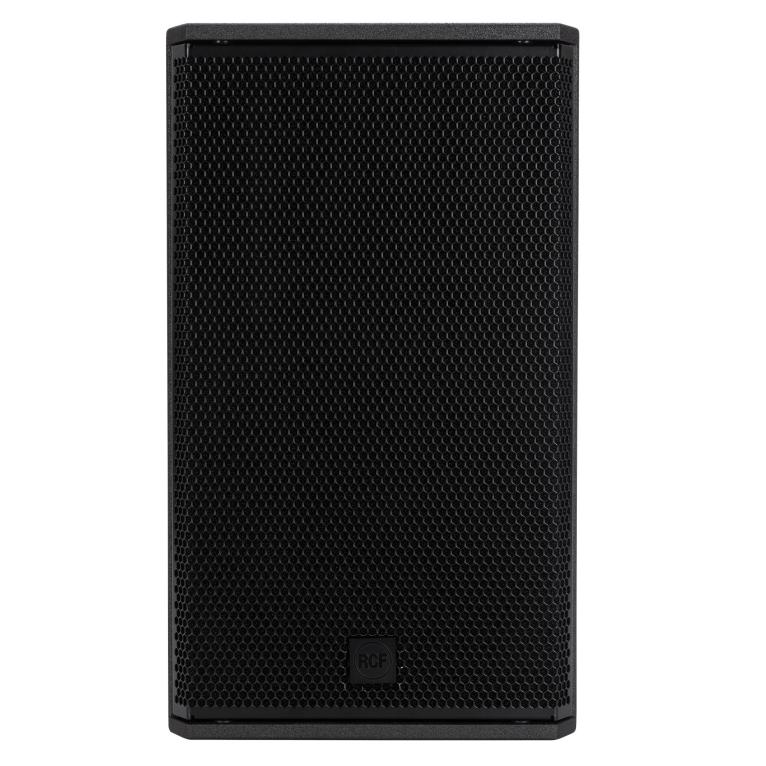

RCF NX 912A | 12in - 130 dB | Touring-Grade Speaker with BMC + FiRPHASE

Powered PA Speaker

The RCF NX 912A is a professional-grade, 12" active speaker designed for touring musicians, mobile DJs, and live sound engineers who need reliable performance in a compact form. Delivering 130 dB SPL with a 2100W Class-D amplifier, advanced DSP, and rugged plywood construction, the NX 912A excels as a standalone PA, stage monitor, or satellite speaker.

RCF NX 912A Competitive Differences

• 2100W bi-amplified Class-D power with 130 dB SPL output
• Advanced DSP with FiRPHASE and Bass Motion Control for transparent sound and deep bass

RCF NX 912A Description

The NX 912A blends premium components, cutting-edge DSP, and rugged build quality into a versatile, tour-ready loudspeaker. Its 12” woofer and 1.75” compression driver are paired with a 2100W bi-amped Class-D amplifier, delivering loud, clean audio across a wide 100° x 60° coverage pattern. Whether you're flying it, mounting it on a pole, or using it as a wedge monitor, this speaker adapts effortlessly to any setup. RCF’s proprietary FiRPHASE technology ensures linear phase response, while the revolutionary Bass Motion Control algorithm manages low-frequency excursion without phase distortion or compromising sound quality. This combination provides a clear, accurate, and impactful listening experience at all volume levels. The road-ready plywood cabinet includes multiple rigging points and a steel grille for durability on the move. Designed with a no-fan, convection-cooled amplifier and silent operation, the NX 912A is ideal for applications that demand both high performance and reliability—without the bulk or noise.

Model Features

• Max SPL: 130 dB for distortion-free output
• 2100W Peak Class-D amplifier (bi-amped)
• 12" woofer with 2.5" voice coil for deep, accurate bass
• 1.75" compression driver with Polyimide-Kapton dome
• FiRPHASE DSP for precise phase alignment
• Bass Motion Control for enhanced low-end without over-excursion
• 100° x 60° constant directivity coverage
• Silent convection cooling – no fan needed
• Plywood cabinet with multiple M10 rigging points

Model Specifications

• Max SPL: 130 dB
• Power Output: 2100W Peak (1400W LF / 700W HF)
• Frequency Response: 50 Hz – 20,000 Hz
• Crossover: 1600 Hz
• Dispersion: 100° x 60°
• Dimensions: 24.41 x 14.25 x 15.94 in (620 x 362 x 405 mm)
• Weight: 45.86 lb (20.8 kg)

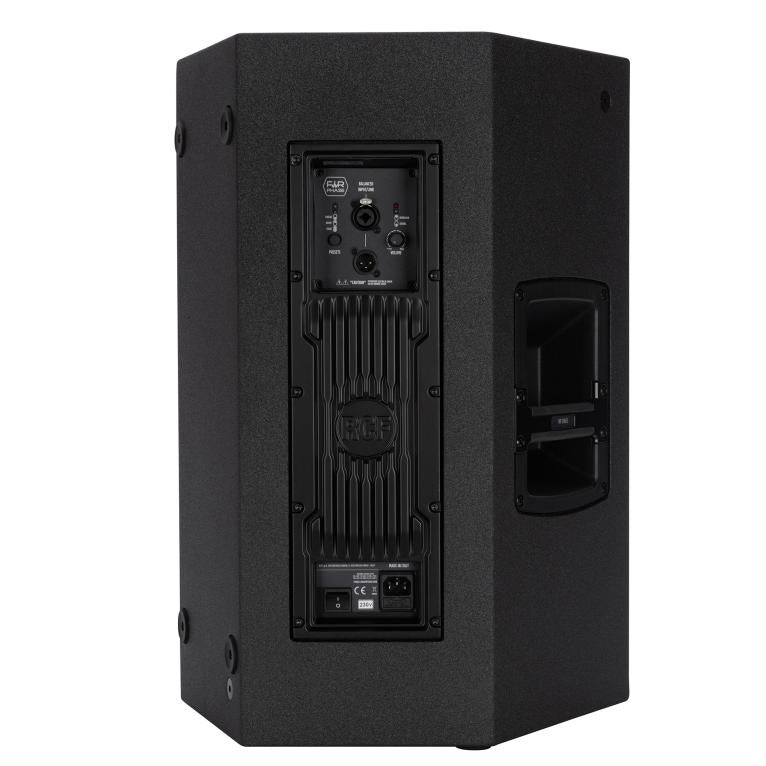

• Inputs: XLR, 1/4" Jack (balanced/unbalanced)
• Outputs: XLR
• Controls: Linear, Boost, Stage, Volume
• Cooling: Convection (fanless)
• Power Connections: VDE

What's In The Box

• RCF NX 912A Speaker
• VDE Power Cable
• User Guide
