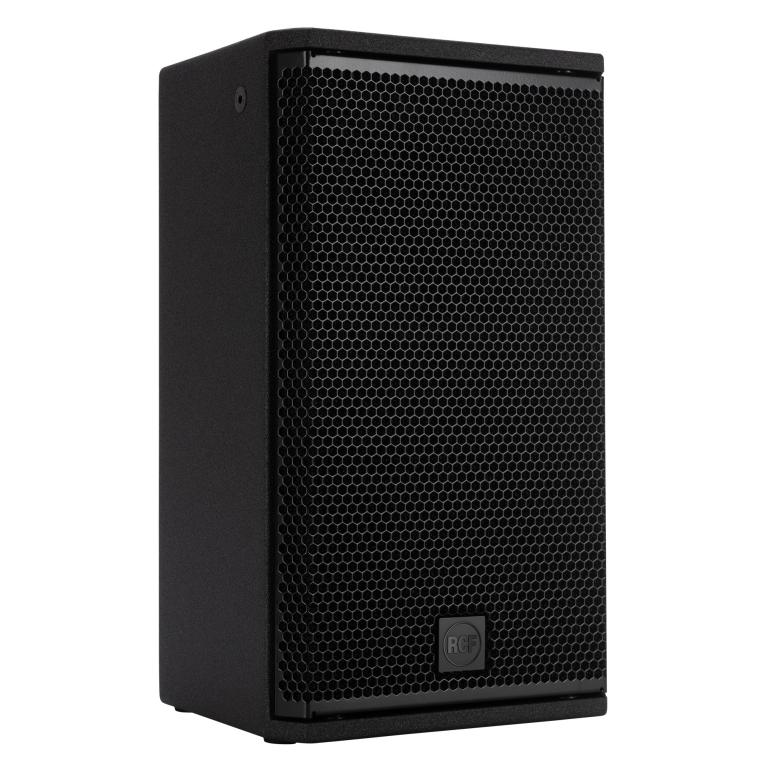

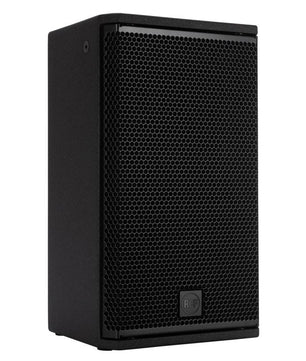

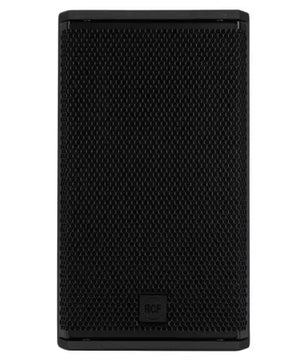

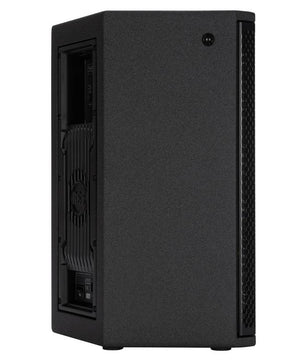

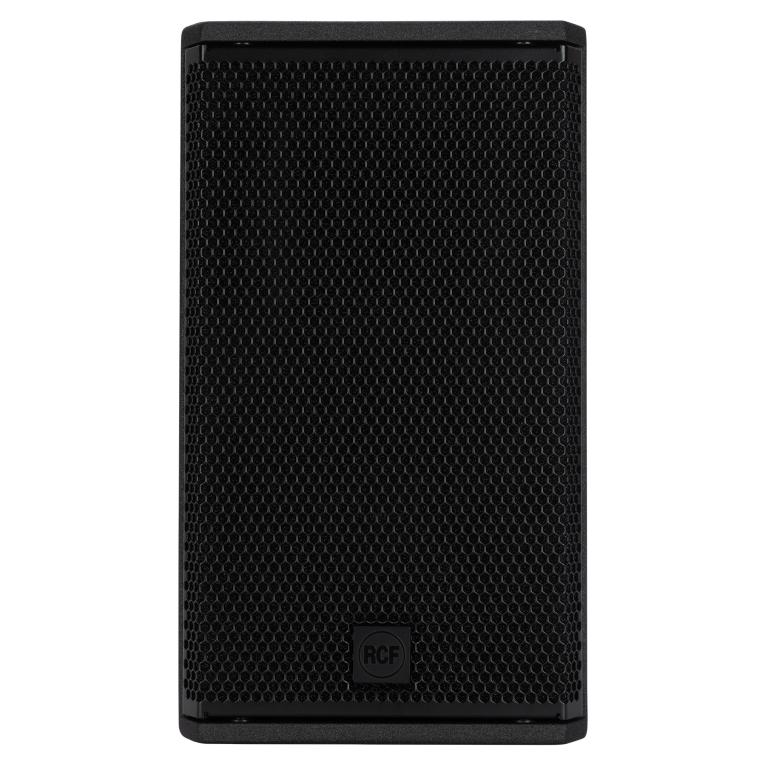

RCF NX 910A | 10in - 130 dB | Touring-Grade Active Speaker with FiRPHASE & BMC

High-Performance 10-Inch Active Speaker for Touring and Installations

The RCF NX 910A is a premium active speaker designed for live sound professionals, DJs, and touring musicians. Delivering 2100W of bi-amplified Class-D power and up to 130 dB SPL, it features a 10" woofer, 1.75" compression driver, advanced DSP, and a rugged all-wood cabinet—ideal for FOH, stage monitoring, or installation.

RCF NX 910A Competitive Differences

• 2100W peak Class-D bi-amplification (700W HF / 1400W LF)
• 1.75” compression driver + 10” woofer with 2.5” voice coil
• Max SPL: 130 dB with 100° x 60° consistent coverage
• FiRPHASE DSP for ultra-linear phase response
• Bass Motion Control (BMC) for enhanced low-frequency extension and clarity
• All-wood cabinet with M10 rigging points for flown, wall, or truss mounting
• Convection-cooled amplifier with no moving parts
• Selectable DSP voicings: Linear, Boost, Stage

RCF NX 910A Description

The RCF NX 910A is built for serious sound reinforcement, offering the power, durability, and clarity required for modern touring and performance environments. Its 10" woofer and 1.75" compression driver are matched with a custom 2100W Class-D amplifier, producing tight, punchy bass and smooth high-frequency response, even at high SPLs. Engineered with RCF’s proprietary FiRPHASE technology, the NX 910A delivers transparent, phase-coherent audio with minimal latency. It also features Bass Motion Control (BMC), which replaces traditional high-pass filters with an algorithm that preserves low-frequency extension without compromising woofer stability or introducing phase distortion. This speaker’s compact footprint and versatile cabinet design make it perfect for use as a main PA speaker, stage monitor, or part of an installed system. Its plywood enclosure is road-ready, with rigging points, pole mount, steel grille, and ergonomic handle for transport. Whether on tour or in a fixed venue, the NX 910A offers uncompromising audio quality and reliability.

NX 910A Features

• 2100W peak / Class-D bi-amplified power (700W HF / 1400W LF)
• 10” woofer with 2.5” voice coil
• 1.75” compression driver with 1.0” exit
• Up to 130 dB SPL
• 100° x 60° constant directivity waveguide
• FiRPHASE DSP processing for accurate phase alignment
• Bass Motion Control for deep, distortion-free bass
• Soft limiter with thermal and RMS protections
• Selectable DSP modes: Linear, Boost, Stage
• All-plywood cabinet with black textured finish

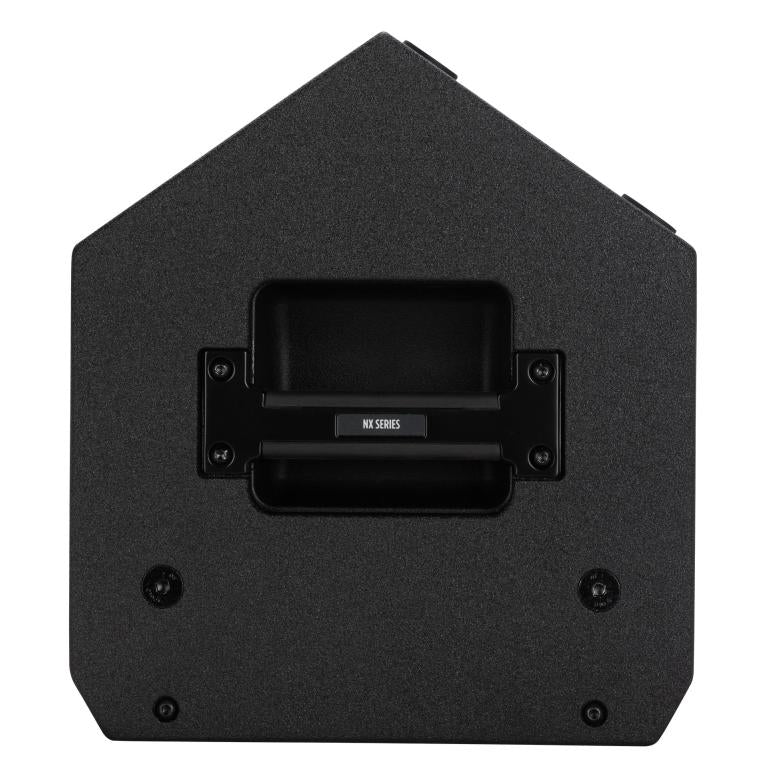

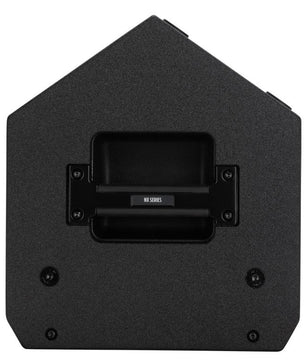

• Steel grille and top carry handle
• Multiple rigging options with 6 x M10 fly points

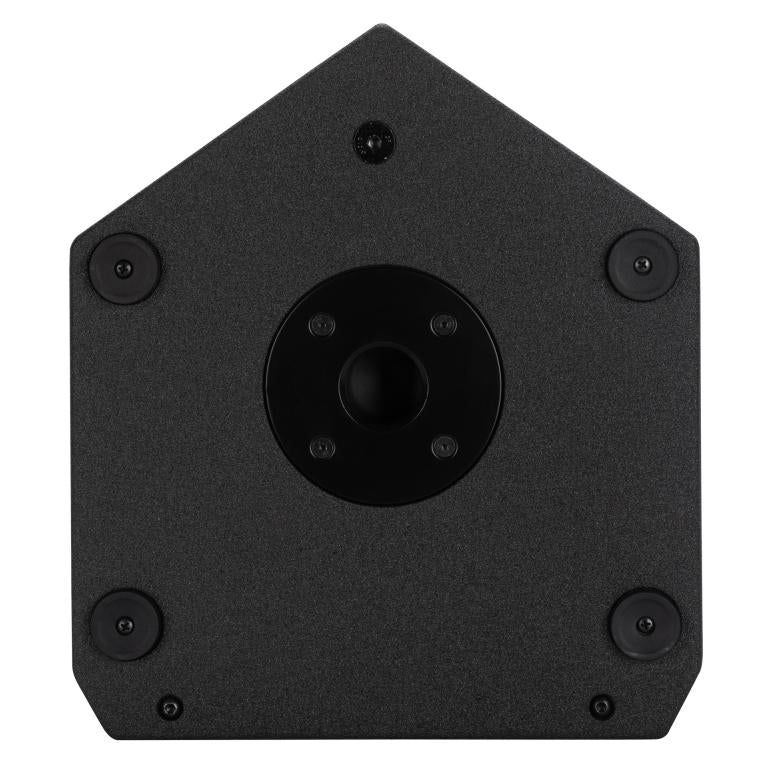

• 35 mm pole socket for tripod or subwoofer mount

NX 910A Specifications

• Frequency Response: 50 Hz – 20,000 Hz
• Max SPL: 130 dB
• Horizontal Coverage: 100°
• Vertical Coverage: 60°
• Compression Driver: 1.75” v.c. (1.0” exit)
• Woofer: 10” with 2.5” voice coil
• Crossover Frequency: 1600 Hz
• Input Sensitivity: -2 dBu / +4 dBu

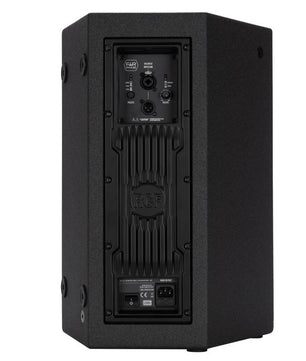

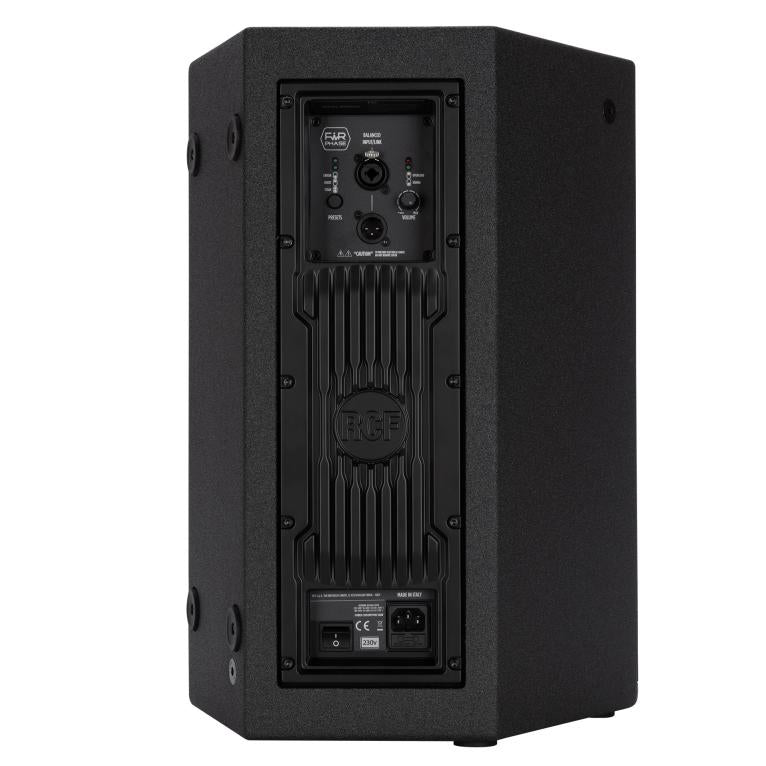

• Input Connectors: XLR, 1/4” Jack (balanced/unbalanced)
• Output Connector: XLR
• Controls: Volume, Linear / Boost / Stage selector
• Protections: Thermal, RMS
• Cooling: Convection (fanless)
• Power Connection: VDE
• Cabinet Material: Plywood
• Grille: Steel
• Handles: 1 top

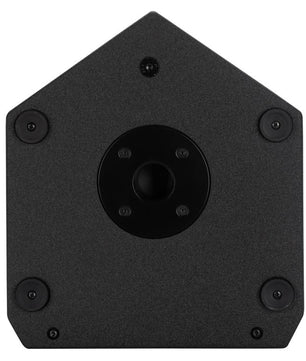

• Rigging: 2 x M10 top, 1 x M10 bottom, 1 x M10 each side, 1 x M10 rear
• Pole Mount: 35 mm socket
• Color: Black
• Dimensions (H x W x D): 20.08 x 11.61 x 13.11 in (510 x 295 x 333 mm)
• Weight: 36.16 lbs (16.4 kg)
• Shipping Dimensions (H x W x D): 21.89 x 15.28 x 13.7 in (556 x 388 x 348 mm)
• Shipping Weight: 39.9 lbs (18.1 kg)
• Safety Compliance: CE certified
