RCF HL 6 | Dual 6in - 131dB | Compact Passive Line Array with 100° x 10° Coverage

Compact Passive Line Array Module

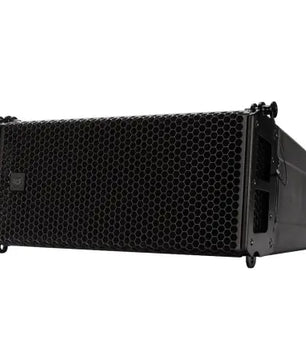

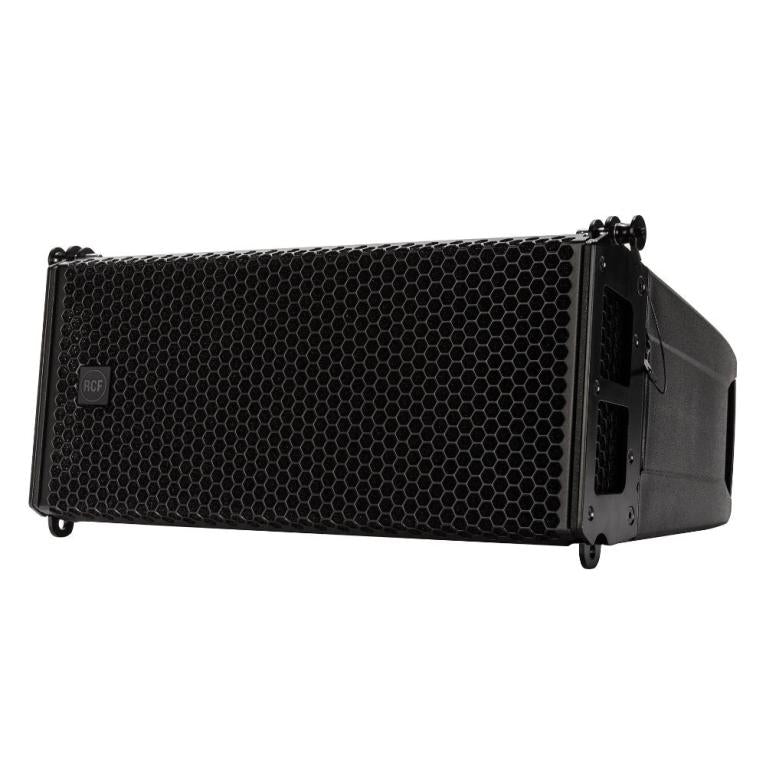

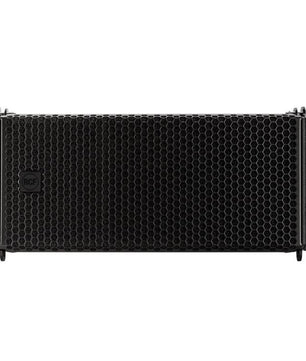

The RCF HL 6 is an ultra-compact, passive two-way line array speaker designed for near and mid-field installation in performance venues, houses of worship, and corporate environments. With precise 100° x 10° dispersion, it offers controlled, full-range sound with high output and minimal visual impact.

RCF HL 6 Competitive Differences

• 131 dB max SPL from a compact, passive cabinet
• 100° x 10° constant directivity waveguide with rotatable coverage

RCF HL 6 Description

The RCF HL 6 delivers powerful, intelligible sound in a space-saving format ideal for permanent installations. Its passive design uses two 6” neodymium woofers and a high-output 1.75” compression driver on a custom waveguide for wide horizontal coverage and tight vertical control. Whether flown or stacked, the HL 6 ensures even distribution and vocal clarity across every seat in the house. At just over 26 lbs, the HL 6 is one of the lightest line array modules in its class. Its integrated hardware supports fast rigging with angles adjustable in 1° increments. Up to 16 modules can be deployed per flybar, allowing J-shaped or spiral array configurations to suit any space. Its polypropylene composite cabinet is durable, weather-resistant, and acoustically transparent, with a steel grille backed by protective foam. Designed to pair with the HL 35-S flyable subwoofer, the HL 6 forms a complete full-range system that replaces outdated large-format arrays with a modern, scalable solution for fixed installations.

Model Features

• 131 dB max SPL output
• 1000W peak / 250W RMS power handling
• 65 Hz – 20,000 Hz frequency response
• 100° x 10° constant directivity coverage
• Dual 6” neodymium woofers with 2.0” voice coils
• 1.75” neodymium compression driver
• Lightweight, compact cabinet with rear panel handles
• Integrated array hardware with up to 16-module rigging

Model Specifications

• Frequency Response: 65 Hz – 20,000 Hz
• Max SPL: 131 dB
• Coverage: 100° horizontal, 10° vertical
• Nominal Impedance: 16 Ohm
• Power Handling: 250W RMS / 1000W Peak
• HF Driver: 1.0" exit, 1.75" v.c. neodymium compression
• LF Drivers: 2 x 6.0" neodymium, 2.0" voice coils

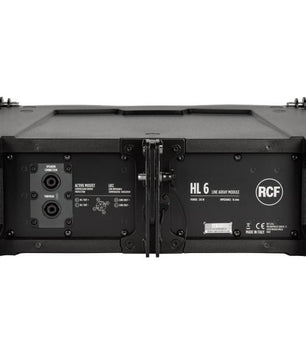

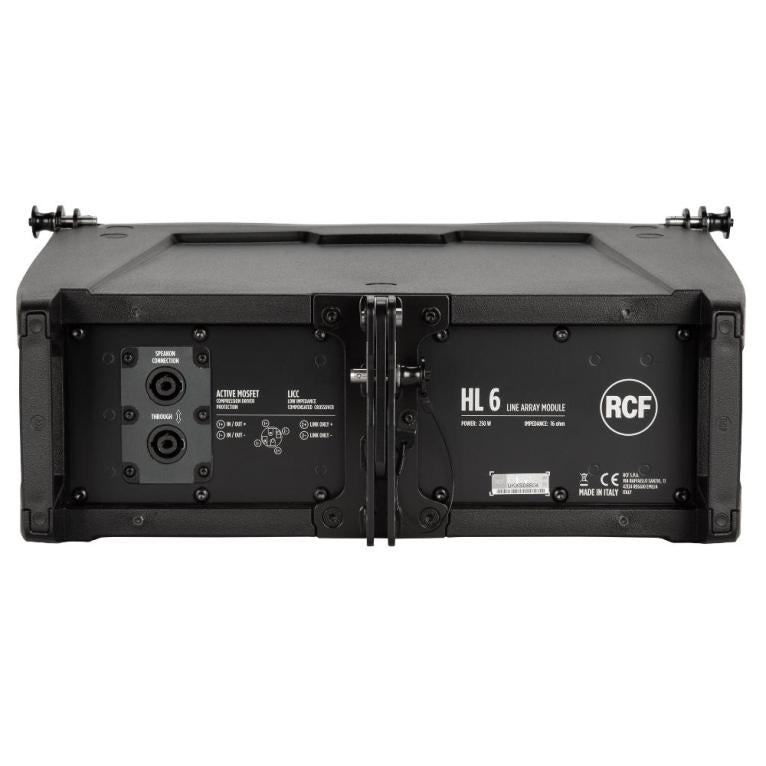

• Input/Output: Speakon IN/OUT
• Cabinet Material: PP Composite
• Mounting: Integrated array mechanics
• Color: Black (RAL 9005) or White (RAL 9003)
• Dimensions: 9.33 x 18.5 x 14.84 in (237 x 470 x 377 mm)
• Weight: 26.0 lb (11.8 kg)
• UPC: Not confirmed

What's In The Box

• RCF HL 6 speaker
• User manual
