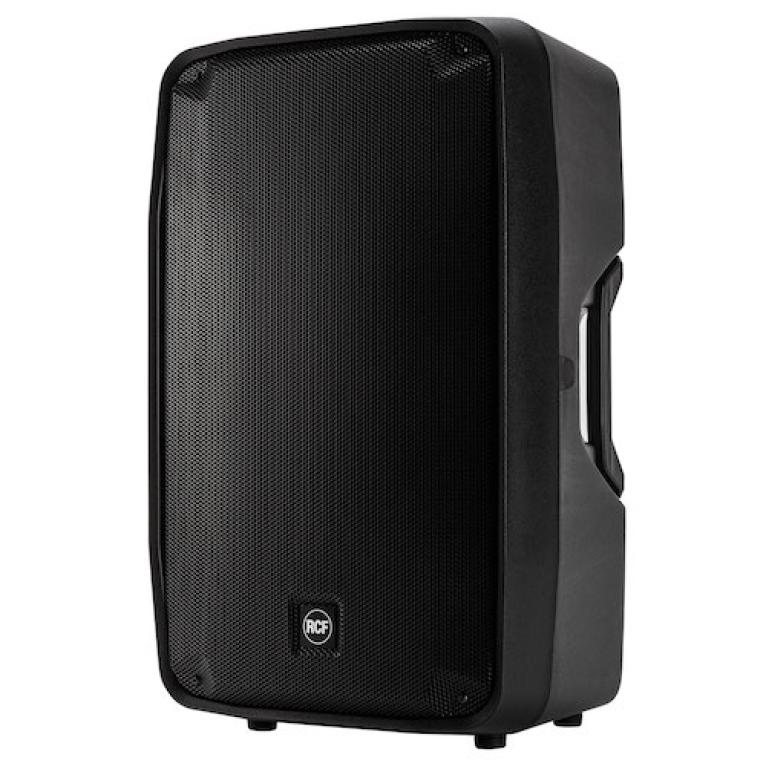

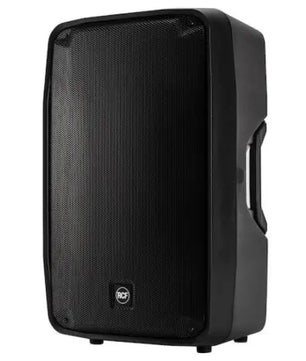

The HDM 45-A speaker boosts the performance with a top-quality two channel amplifier, RDNet networked management, RCF precision transducers, the FiRPHASE processing, and a rugged cabinet. While being one of the most powerful speakers in composite material in its category, it delivers clear, detailed and smooth sound from low to very high levels, with low distortion and fast transient response. The HDM concept is inspired by the touring industry, packing in an elegant and lightweight cabinet the maximum reliability and strength for intensive use on the road. Perfect as a main front of house speaker in PA systems, high-powered floor monitor, or unobtrusive infill system when combined with the RCF HDL System speakers.

Features:

133 dB Max SPL
2200 Watts two-way power
Innovative DSP Processing with FiRPHASE
1.5” Titanium Compression Driver, 4.0” v.c. Neodimium
15” Neodimium Woofer, 3.5” v.c.
650 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
RDNet compatible

Specifications:

SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
133 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.5'' neo, 4.0'' v.c

WOOFER:
15'' neo, 3.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
650 Hz

PROTECTIONS:
Thermal, HF

LIMITER:
Fast Limiter

CONTROLS:
proces., 8 sel. presets

RDNET:
Yes
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS

HIGH FREQUENCIES:
600 W Peak, 300 W RMS

LOW FREQUENCIES:
1600 W Peak, 800 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
EN54-16 CERTIFIED:
Yes

CE MARKING:
Yes

Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 top, 1 x M10 bottom, 2 x M10 side

HANDLES:
1 Top, 2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black

Size
HEIGHT:
714 mm / 28.11 inches

WIDTH:
442 mm / 17.4 inches

DEPTH:
397 mm / 15.63 inches

WEIGHT:
22 kg / 48.5 lbs

Shipping information:

PACKAGE HEIGHT:
750 mm / 29.53 inches

PACKAGE WIDTH:
440 mm / 17.32 inches

PACKAGE DEPTH:
480 mm / 18.9 inches

PACKAGE WEIGHT:
24.5 kg / 54.01 lbs
