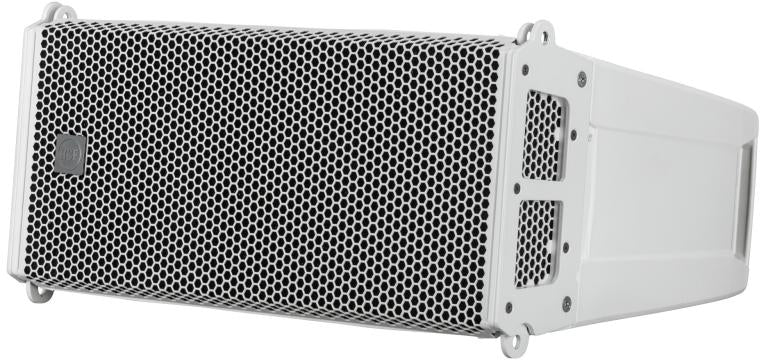

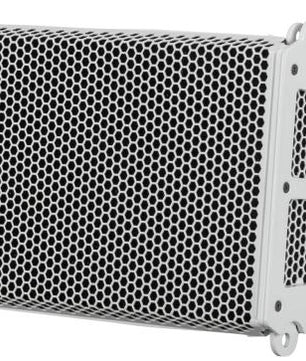

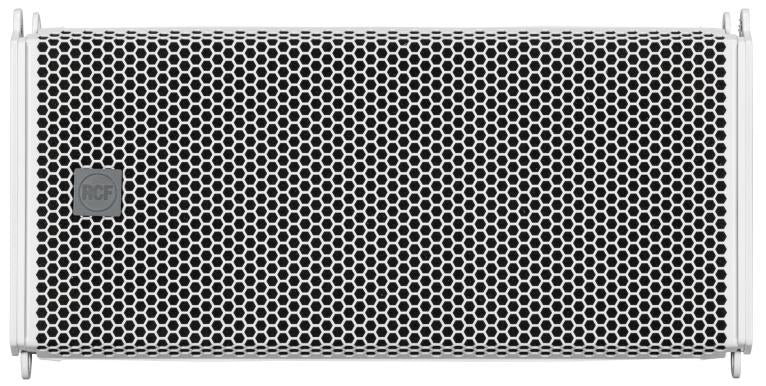

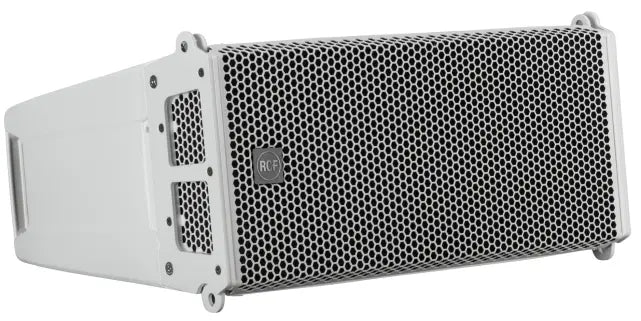

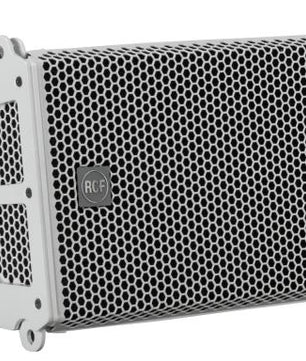

RCF HDL 6AW | Dual 6in - 131dB | Compact White Touring Line Array Module

Compact Touring Line Array Module

The RCF HDL 6AW is a white, high-output, active line array speaker designed for small to mid-sized venues, theaters, houses of worship, and corporate events. With a lightweight enclosure and simple rigging, it provides fast deployment while delivering detailed, consistent coverage and excellent vocal clarity.

RCF HDL 6AW Competitive Differences

• 131 dB SPL output from compact, lightweight 25.6 lb cabinet
• White finish ideal for installations or visually discreet setups

RCF HDL 6AW Description

The RCF HDL 6AW brings full-scale line array performance in a compact, visually unobtrusive white enclosure. Powered by a 1400W two-way Class-D amplifier, it features dual 6” high-power neodymium woofers and a 1.7” voice coil compression driver mounted on a precision 100° x 10° waveguide for extended horizontal coverage and tight vertical control. With FiRPHASE technology and advanced DSP, the HDL 6AW ensures precise time alignment and phase coherence across the array, delivering clear intelligibility and musicality at any throw distance. The symmetrical design helps maintain even coverage with minimal drop-off, making it suitable for both flown and ground-stacked applications. Ideal for quick touring setups or fixed installations where aesthetics matter, the HDL 6AW’s white cabinet blends seamlessly into venues while delivering powerful, professional-grade sound. For extended low-end, the flyable HDL 12-AS subwoofer is its perfect bass companion.

Model Features

• 1400W two-way Class-D amplifier (700W RMS)
• Dual 6” neodymium woofers with 2.0” voice coils
• 1.7” voice coil neodymium compression driver
• FiRPHASE DSP processing for perfect phase alignment
• Symmetrical cabinet for consistent horizontal coverage
• 100° x 10° coverage with custom waveguide
• Extremely lightweight at just 25.6 lb (11.6 kg)
• White cabinet ideal for fixed installs and low-visibility applications

Model Specifications

• Frequency Response: 65 Hz – 20,000 Hz
• Max SPL: 131 dB
• Coverage: 100° horizontal, 10° vertical
• Amplifier Power: 1400W Peak (700W RMS)
• HF Driver: 1.0" exit, 1.75" voice coil neo compression
• LF Drivers: 2 x 6.0" neodymium, 2.0" voice coils
• DSP: 48kHz / 32-bit floating point

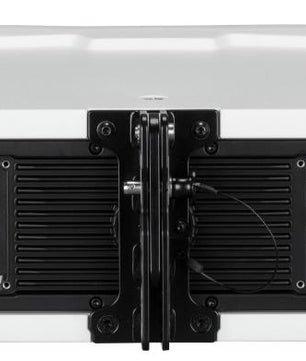

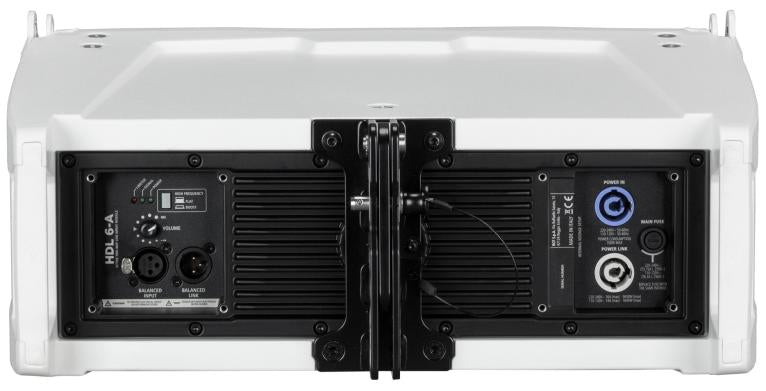

• Inputs/Outputs: XLR (IN/OUT)
• Power Connections: PowerCON IN/OUT

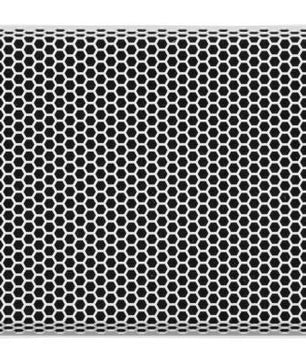

• Cabinet: PP Composite with steel grille
• Color: White
• Dimensions: 9.33 x 18.5 x 14.84 in (237 x 470 x 377 mm)
• Weight: 25.6 lb (11.6 kg)
• UPC: Not confirmed

What's In The Box

• RCF HDL 6AW unit
• PowerCON cable
• Quick start guide
