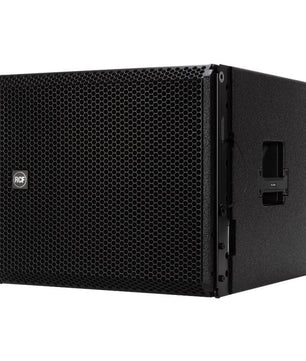

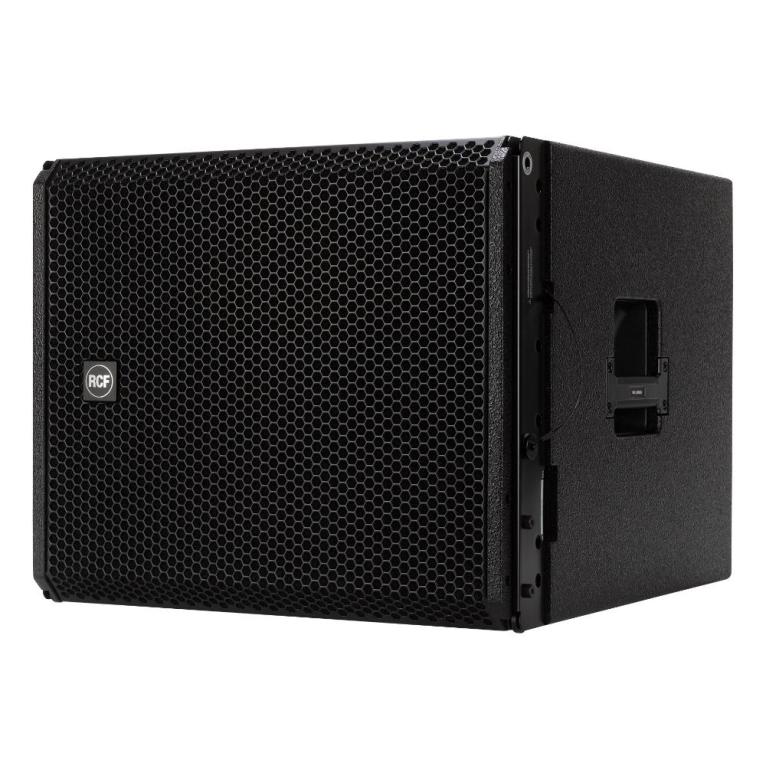

RCF HDL36 AS | 15in - 135dB

The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system. It features one 4.0” voice coil, 15” neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with the maximum linearity and low distortion. The built-in 3200 watts class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 36-AS is part of the professional HDL System.

RCF RDNet
Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Legendary woofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, RDNet remote control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Cabinet and mechanics
The hardware is designed for an easy and fast setup, completely compatible with the HDL 28-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

FEATURES:

ACTIVE FLYABLE SUBWOOFER MODULE
135 dB Max SPL
3200W Class-D Amplifier
40-140 Hz frequency response
RDNet Networked Management

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response:
40 Hz ÷ 140 Hz
Max SPL @ 1m:
135 dB
TRANSDUCERS
Woofer:
15'' neo, 4.0'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
PROCESSOR SECTION
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection, RDnet on board
RDNet:
Yes
POWER SECTION
Total Power:
3200 W Peak, 1600 W RMS
Low frequencies:
3200 W Peak, 1600 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White - RAL 9003
SIZE
Height:
467 mm / 18.39 inches
Width:
555 mm / 21.85 inches
Depth:
593 mm / 23.35 inches
Weight:
37 kg / 81.57 lbs
SHIPPING INFORMATION
Package Height:
500 mm / 19.69 inches
Package Width:
570 mm / 22.44 inches
Package Depth:
610 mm / 24.02 inches
Package Weight:
40 kg / 88.18 lbs
