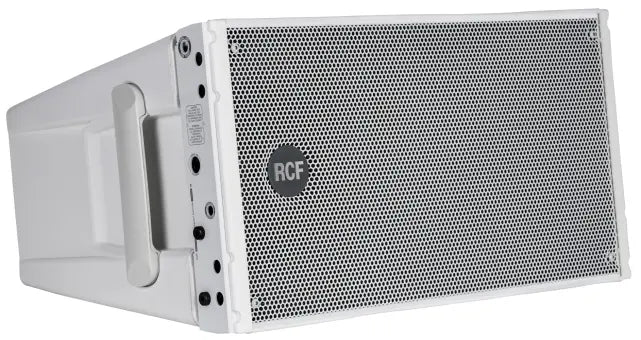

RCF HDL10AW | Dual 8in Woofers - 133dB

The very compact size, no compromise transducers and a unique composite cabinet design make the RCF HDL 10-A-W the perfect tool in many situations, and is ideal in live sound reinforcement and reliable installed situations.

The HDL 10-A-W is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2-way digital amplifier, sound is processed from a powerful DSP.

Applications:

Live Sound
Rentals
Portable PA, clubs, ballrooms, live theatre
House of worship
Theme parks
Music playback and sound reinforcement in small and mid-size venues
Corporate A/V professionals and sound system hire companies

Features:

1400 Watt Peak power - 700 Watt RMS
133 dB max SPL
65 Hz 20 kHz frequency response
2 x 8" Woofers
1 x 2" Compression Driver
DSP controlled Input section with selectable presets
Tour grade safe and solid variable mechanics
Composite PP enclosure structurally wooden reinforced

Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:65 Hz ÷ 20000 Hz
Max SPL:133 dB
Horizontal coverage angle:100°
Vertical coverage angle:15°
Compression Driver:2", 2.5" v.c.
Woofer:2 x 8", 2.0" v.c.

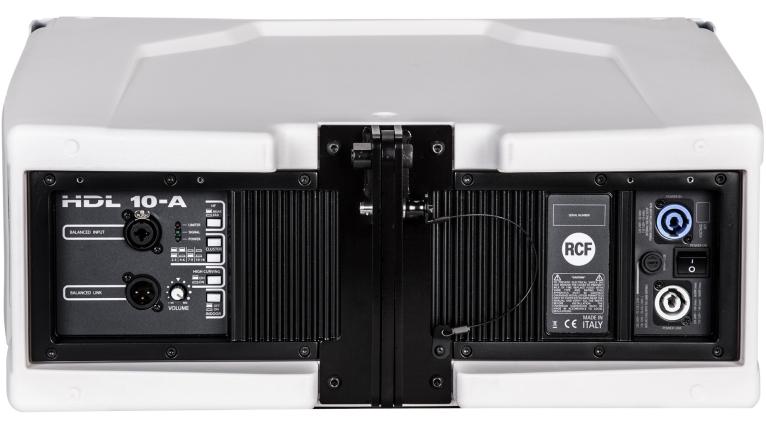

INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION
Crossover frequencies:800 Hz
Protections:Thermal, RMS
Limiter:Soft limiter
Controls:Cluster, HF, High curving, Indoor

AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
   High frequencies:400 W PEAK
   Low frequencies:1000 W PEAK
Total power:700 W RMS
   High frequencies:200 W RMS
   Low frequencies:500 W RMS
Cooling:Convection
Connections:Powercon in/out

CABINET
Cabinet Material:Composite PP, wooden reinforced
Hardware:Rigging flyware
Handles:2 side
Colour:White

PHYSICAL SPECIFICATIONS
Height:294 / 11.5 mm/inch
Width:569 / 22.40 mm/inch
Depth:434 / 17.09 mm/inch
Net Weight:20.4 / 44.97 kg/lbs
