RCF HDL 10-A | 1400W Active Line Array Module
The RCF HDL 10-A is a compact, high-performance active line array module designed for both touring and installed sound applications. Delivering 1400W peak power and a maximum SPL of 133 dB, this system is perfect for live sound reinforcement where high power and fast setup are essential. With dual 8" woofers, a 2" compression driver, and a DSP-controlled input section, the HDL 10-A offers exceptional sound quality in a highly portable package.
HDL 10-A Competitive Differences
- 1400W Peak Power, 700W RMS
- 133 dB Max SPL for High Sound Pressure Levels
- 2 x 8" Woofers and 1 x 2" Compression Driver
- Tour-grade build with composite and wooden-reinforced enclosure
- DSP with selectable presets for different acoustic environments
- Efficient Class-D amplifier with convection cooling
Full Product Description
The RCF HDL 10-A is a versatile active line array module that combines power, precision, and portability. Ideal for both live touring and installed sound, the HDL 10-A features RCF's advanced transducer technology, including a large format 2.5” voice coil compression driver that delivers clear and precise high frequencies. Its dual 8” woofers provide controlled bass response, making it suitable for a wide range of audio applications. The system's Class-D amplifier ensures high efficiency and reliable performance, while the integrated DSP offers easy-to-use presets for quick setup and optimization.
Features
- 1400W Peak Power, 700W RMS
- 133 dB Max SPL
- Frequency Response: 65 Hz – 20 kHz
- Horizontal Coverage: 100°
- Vertical Coverage: 15°
- Composite PP enclosure with wooden reinforcement
- DSP with selectable presets

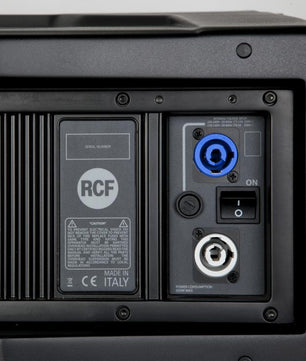

- Powercon IN/OUT connections
- Tour-grade rigging and flyware
Specifications
- Frequency Response: 65 Hz – 20 kHz
- Max SPL @ 1m: 133 dB
- Horizontal Coverage: 100°
- Vertical Coverage: 15°
- Compression Driver: 1 x 2.0", 2.5" v.c
- Woofer: 2 x 8", 2.0" v.c
- Input Connectors: XLR
- Output Connectors: XLR
- Power Supply: 1400W Peak, 700W RMS
- Cooling: Convection
- Cabinet Material: PP Composite
- Color: Black, White
- Dimensions (H x W x D): 11.57" x 22.4" x 17.09"
- Weight: 44.97 lbs
