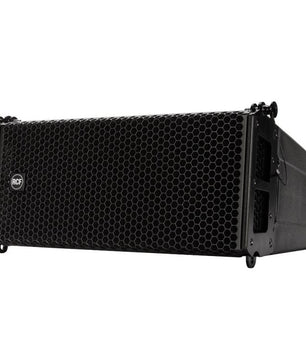

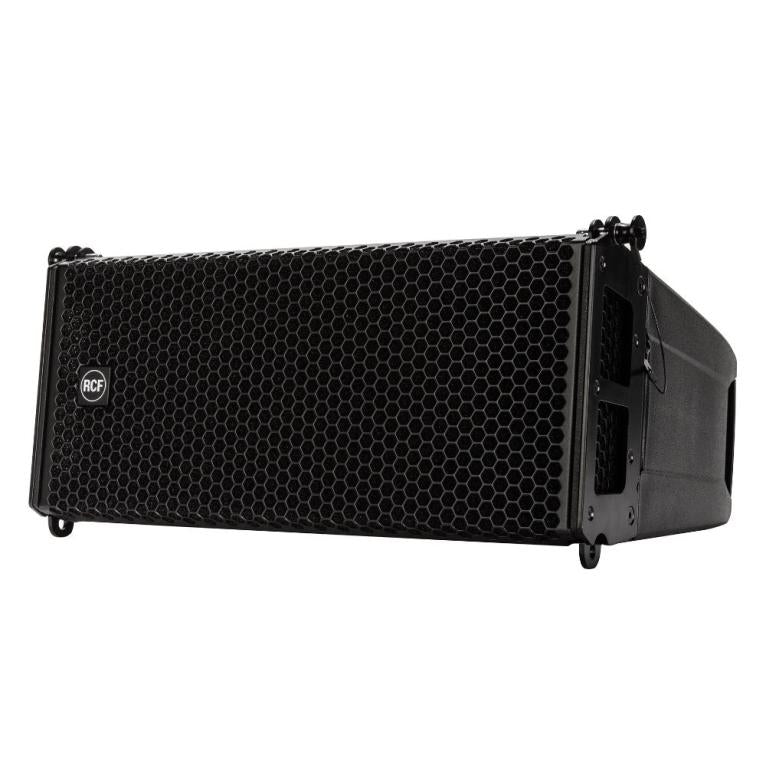

RCF HDL 26-A | 2way 6in - 133dB | Compact Line Array Module with DSP & RDNet

RCF HDL 26-A | 2way 6in - 133dB | Compact Line Array Module with DSP & RDNet

$3,699.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.

FEATURES:

133 dB Max SPL
2000W Two-Way Amplifier
Exclusive FiRPHASE technology on-board
750 Hz Crossover for best vocal reproduction
RDNet Networked Management
3” Titanium Compression Driver
2 x 6” High-Powered Neodymium Woofers
4 PATH waveguide

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response
55 Hz ÷ 20000 Hz
Max SPL @ 1m
133 dB
Horizontal coverage angle
100°
Vertical coverage angle
10°
TRANSDUCERS
Compression Driver
1 x 1.5'' neo, 3.0'' v.c
Woofer
2 x 6.0'' neo, 2.0'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
+4 dBu
PROCESSOR SECTION
Crossover Frequencies
750
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Preset, RDNet bypass
RDNet
Yes
POWER SECTION
Total Power
2000 W Peak, 1000 W RMS
High frequencies
600 W Peak, 300 W RMS
Low frequencies
1400 W Peak, 700 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Hardware
Array fittings
Handles
2 Back
Color
Black, White
SIZE
Height
237 mm / 9.33 inches
Width
470 mm / 18.5 inches
Depth
377 mm / 14.84 inches
Weight
13.5 kg / 29.76 lbs
SHIPPING INFORMATION
Package Height
260 mm / 10.24 inches
Package Width
550 mm / 21.65 inches
Package Depth
425 mm / 16.73 inches
Package Weight
14.9 kg / 32.85 lbs
