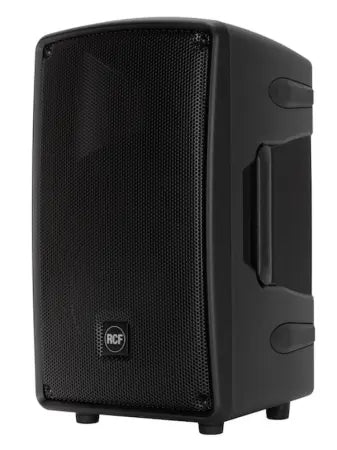

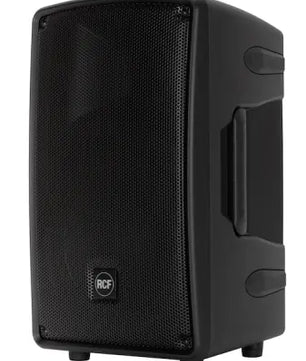

RCF HD10A MK5 | 10in - 128 dB | Portable Active Speaker with DSP & XBoost

RCF HD10A MK5 | 10in - 128 dB | Portable Active Speaker with DSP & XBoost

$514.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Compact and Powerful 10” Active Speaker with DSP and FiRPHASE

The RCF HD10A MK5 is a high-definition, 10" two-way active speaker delivering crystal-clear sound with exceptional bass response. With a powerful 800W Class-D amplifier, advanced DSP featuring FiRPHASE and Bass Motion Control (BMC) processing, and an extended frequency range, the HD10A MK5 is designed for musicians, DJs, and mobile sound professionals who demand full-range performance in a compact, road-ready format.

RCF HD10A MK5 Competitive Differences

800W 2-way Class-D amplifier (400W RMS)
128 dB max SPL with extended 50 Hz–20 kHz frequency response
Advanced DSP with FiRPHASE and Bass Motion Control (BMC)
10” high-power woofer with 2” voice coil
1” HF compression driver on 90° x 60° constant directivity horn
Silent, convection-cooled, fanless design for reliability
Mic/Line switch with volume and EQ mode (Boost/Flat)
Lightweight polypropylene composite cabinet with internal reinforcement
Designed for pole mounting, stage monitoring, or installation

RCF HD10A MK5 Description

Engineered for performance and portability, the HD 10-A MK5 brings the same RCF touring-quality transducer technology into a compact speaker suitable for live sound, presentations, small stages, and mobile DJs. Its 10” woofer and 1” HF driver produce high output with vocal clarity, extended low-end, and minimal distortion—delivering 128 dB SPL from a rugged and lightweight cabinet. The onboard DSP includes RCF’s FiRPHASE filtering for precise phase alignment and Bass Motion Control (BMC) to extend low-frequency performance while protecting the woofer from over-excursion. EQ and Mic/Line switches allow quick adaptation for speech, live music, or playback, and the steel grille and pole mount make it flexible for any configuration—floor monitor, FOH, or flown install.

HD10A MK5 Features

800 Watts peak power (400W RMS)
128 dB max SPL
10” woofer with 2.0” voice coil
1” HF compression driver with 1.0” voice coil
Frequency response: 50 Hz – 20,000 Hz
90° x 60° constant directivity horn
FiRPHASE and BMC DSP processing
EQ Mode: Boost or Flat
Mic/Line input sensitivity switch
Soft limiter and RMS protection circuits
Silent fanless convection cooling
Polypropylene composite cabinet with internal bracing
35 mm steel pole socket for mounting
1 top handle, 1 side handle
2x M10 threaded inserts for rigging

HD10A MK5 Specifications

Frequency Response: 50 Hz – 20,000 Hz
Max SPL @ 1m: 128 dB
Horizontal Coverage: 90°
Vertical Coverage: 60°
Compression Driver: 1.0", 1.0" v.c. (Mylar/Ferrite with Kapton coil)
Woofer: 10", 2.0" v.c.
Crossover Frequency: 2000 Hz
Protections: Thermal, RMS, Soft Limiter
Input Connectors: XLR, Jack (bal/unbal)
Output Connectors: XLR
Mic Input Sensitivity: -32 dBu
Line Input Sensitivity: -2 dBu / +4 dBu
Controls: Mic/Line switch, EQ Mode (Flat/Boost), Volume
Cooling: Convection (fanless)
Total Amplifier Power: 800W peak (400W RMS)
HF Power: 200W peak / 100W RMS
LF Power: 600W peak / 300W RMS
Cabinet Material: PP Composite with internal reinforcement
Grille: Steel
Handles: 1 Top, 1 Side
Rigging Points: 1 x M10 Top, 1 x M10 Bottom
Pole Mount: 35 mm steel socket
Color: Black
Dimensions (H x W x D): 527 x 303 x 303 mm / 20.75 x 11.93 x 11.93 in
Weight: 11.8 kg / 26.01 lbs

Shipping Information

Package Dimensions (H x W x D): 640 x 400 x 380 mm / 25.2 x 15.75 x 14.96 in
Shipping Weight: 14.3 kg / 31.53 lbs
