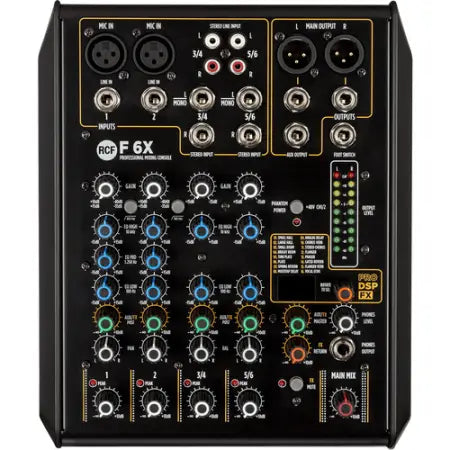

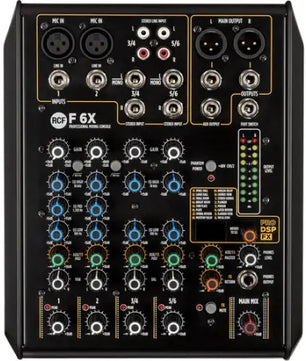

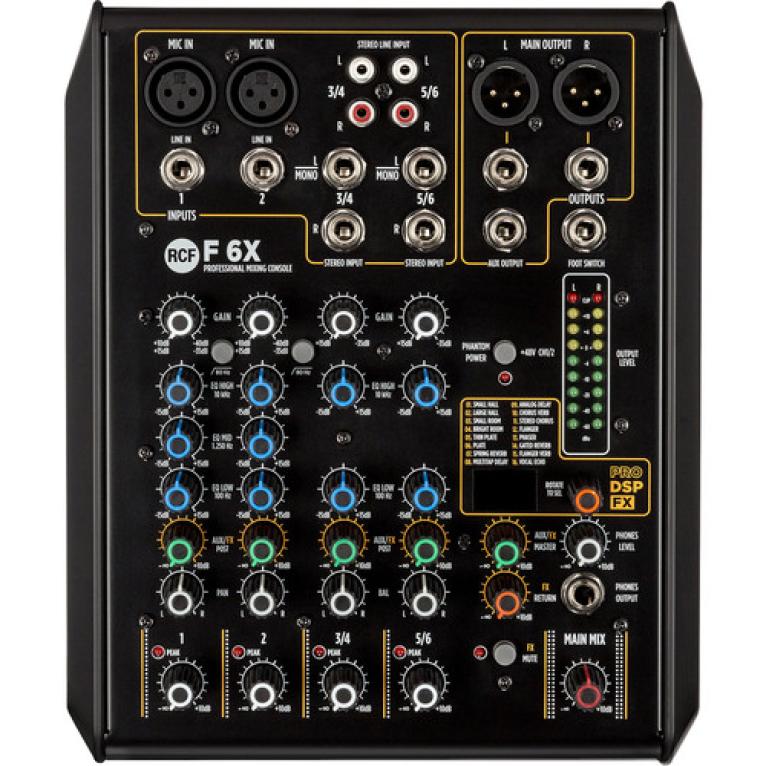

RCF F 6X Mixer (RCF 6-Channel Mixing Console)
RRCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX : 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback. Order the RCF F 6X Mixer today!
State Of The Art Eq
State-of-the-art 3 band EQ on mono channels, 2 bands EQ on stereo channels for precise shaping of sound.
High Quality Preamplifiers
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high level sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.
RCF F 6X Mixer Features:
2 Mic/Line Inputs
2 Stereo Line Inputs
One Aux/Fx (Post)
Balanced Main Output Audio Path From Input To Output
Pro Dsp Fx Onboard With 16 Presets
Sturdy Metal Chassis
External Universal Power Supply
Designed And Engineered In Italy
Auxiliary Sends
Fx Post : 1
Electrical Specifications
Power Consumption (W) : 12 W
Power Supply : External
Voltage Requirements : 100 V - 240 V
Frequency Response : 20 Hz ÷ 20 Khz
Thd+N, 20db Gain, 0dbu Out (% A-Weighted) : <0,02
Eq
Description : High:+/-15 Db @ 10 Khz Shelving, Mid:+/-15 Db @ 1,250 Khz, Bell Low:+/-15 Db @ 100 Hz Shelving.
Input Channels Eq : 2 Shelving 1
Inputs
Gain Range : 0 Db ÷ -50 Db
Gain Selection : 20 Db ÷ -30 Db
Mic Inputs Impedance (Kohm) : 14 Kohm
Line : 2
Line Input Impedance (Kohm) : 21 Kohm
Low Cut : 80 Hz
Mic : 2
Phantom Power +48v : Yes
Stereo Line : 2
Stereo Line Gain Selection : 20 Db ÷ -30 Db
Stereo Line Input Impedance : 15 Kohm
Internal Effects
Send Effects : 1
Other Features
Footswitch : Yes
Outputs
Aux Output : 1
Fx Send : 1
Main Mix : 1
Phones : 1
Outputs Specifications
Aux Out Level (Dbu) : 28 Dbu
Main Out Level (Dbu) : 28 Dbu
Phones Out Impedance (Ohm) : 150 Ohm
Physical Specifications
Cabinet/Case Material : Metal
Color : Black
Shipping Informations
Package Depth : 260 Mm / 10.24 Inches
Package Height : 122 Mm / 4.8 Inches
Package Width : 378 Mm / 14.88 Inches
Size
Depth : 255 Mm / 10.04 Inches
Height : 79 Mm / 3.11 Inches
Width : 210 Mm / 8.27 Inches
Standard Compliance
Ce Marking : Yes
