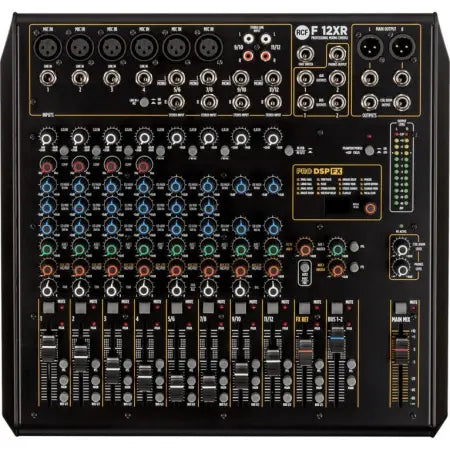

RCF F12 XR | 6 Mic, 4 Stereo – FX, USB | 12-Channel Mixer with Audio Interface

$484.00
Order within [hour] to get by [date_end]

Call For More Details

Call us at 123-456-7890

Returns & Exchanges Policy
All orders come with our industry leading 90-Day return policy.
  • Cash Back or Store Credit available for returns within 30 days.
  • Store Credit available for returns within 31-90 days.
Restocking fees
  • Unopened Items: 5%
  • Opened but Mint Condition: 15%
  • Blemished, Missing/Damaged Packing or Accessories: 25%
Shipping Costs
  • Buyer is responsible for return shipping costs
  • If "Free" or discount shipping was provided with original order, our actual shipping cost will be deducted from the amount refunded/credited
Damages & Defects
  • We will swap any item reported as damaged or defective within 7 days of delivery for free. All transportation and replacement costs will be covered by us (within US48 states).


  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Description

Shipping

Return Policies

Versatile 12-Channel Mixer with USB Audio and Effects

The RCF F12 XR is a full-featured 12-channel analog mixer designed for musicians, small bands, and audio professionals needing multichannel mixing, USB recording, and onboard effects in a compact yet robust design. With 6 mic inputs, 4 stereo line inputs, onboard PRO DSP FX, and USB connectivity, it’s ideal for both live and studio applications.

RCF F12 XR Competitive Differences

  • 12 total input channels: 6 mic, 4 stereo, and 1 Hi-Z instrument input
  • 16 onboard PRO DSP FX presets: reverbs, delays, chorus, flanger, echo
  • USB audio interface for 2-track recording and playback
  • 4 single-control compressors for dynamic control on channels 1–4
  • 3-band EQ on mono channels, 2-band EQ on stereo channels
  • Balanced audio path from input to output for clean sound
  • Sturdy metal chassis and attractive Italian-engineered design
  • Internal universal power supply (100–240V)

RCF F12 XR Description

The RCF F12 XR is a powerful analog mixer that blends flexibility, portability, and professional audio performance. Built on RCF’s legacy of analog excellence, it features a high-fidelity audio path and intuitive layout designed for musicians, small venues, and streaming setups. With 6 microphone inputs (including phantom power), 4 stereo line inputs, and a Hi-Z input for instruments, the F12 XR covers a wide range of use cases. Its internal PRO DSP engine offers 16 rich-sounding FX presets including hall and room reverbs, multitap delays, chorus, flanger, and echo—ideal for enhancing vocals and instruments during live performances. The mixer also includes a built-in USB audio interface for easy 2-track recording and playback with your favorite DAW. Designed in Italy and housed in a rugged metal chassis, the F12 XR is made to perform night after night with consistent, clear sound.

F12 XR Features

  • Sturdy metal chassis with compact form factor
  • 16 onboard PRO DSP FX presets
  • USB audio interface for stereo recording and playback
  • 4 single-control compressors on mic channels 1–4
  • 3-band EQ on mono channels, 2-band EQ on stereo channels
  • Balanced audio path from input to output
  • Footswitch compatibility for FX control
  • Designed and engineered in Italy

F12 XR Specifications

  • Frequency Response: 20 Hz – 20 kHz
  • THD+N: < 0.02% A-Weighted (20 dB gain, 0 dBu out)
  • Dynamic Range: > 85 dB
  • Total Input Channels: 12
  • Mic Inputs: 6 (Gain: 0 to -50 dB, Impedance: 14 kΩ)
  • Low Cut: 80 Hz
  • Phantom Power: +48V
  • Mono Line Inputs: 4 (Gain: 20 to -30 dB, Impedance: 21 kΩ)
  • Hi-Z Instrument Input: 1 (1 MΩ impedance)
  • Stereo Line Inputs: 4 (Impedance: 15 kΩ)
  • Input Connectors: XLR, 1/4" Jack, RCA
  • Main Mix Outputs: 1
  • Aux Sends: 1 AUX (PRE/POST), 1 FX POST
  • Aux Outputs: 2
  • Group Out: 1
  • Control Room Out: Yes
  • Phones Output: 1 (150 Ω impedance)
  • Output Connectors: XLR, 1/4" Jack
  • Main / Aux / Group Output Levels: 28 dBu
  • EQ (Mono): High ±15 dB @ 10 kHz, Mid ±15 dB @ 1.25 kHz, Low ±15 dB @ 100 Hz
  • USB Audio Interface: Type B, 2-track in/out (44.1 & 48 kHz supported)
  • Footswitch Control: Yes
  • Power Supply: Internal universal (100–240V)
  • Max Power Consumption: 24 W
  • Compliance: CE certified
  • Material: Metal
  • Color: Black
  • Dimensions (H x W x D): 3.82 x 14.69 x 13.98 in (97 x 373 x 355 mm)
  • Weight: 9.92 lbs (4.5 kg)
  • Shipping Dimensions (H x W x D): 5.51 x 15.75 x 16.73 in (140 x 400 x 425 mm)
  • Shipping Weight: 12.13 lbs (5.5 kg)
