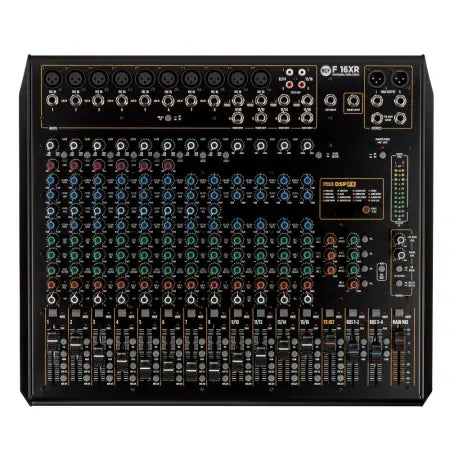

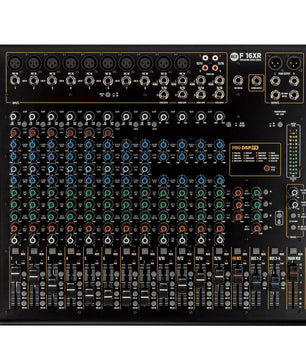

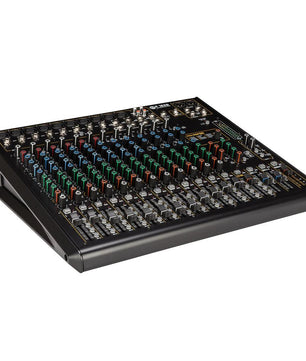

RCF F 16XR | Ins: 10 Mic, 8 Line - Effects | USB Recording Mixer

16-channel analog mixer with effects and USB recording

RCF F 16XR is a portable 16-channel analog mixing console that combines clean preamps, onboard PRO DSP effects, and a 2×2 USB interface—ideal for live sound, rehearsals, clubs, and project studios needing reliable mixing and easy computer recording/playback.

RCF F 16XR Competitive Differences

• Inputs for real-world gigs: 10 mic preamps plus 8 mono line inputs and 4 stereo line inputs
• Onboard PRO DSP FX with 16 presets (reverbs, delays, chorus, flanger, echo)
• Built-in 2×2 USB audio (stereo record/playback at 44.1/48 kHz)
• Six single-knob compressors on channels 1–6 for fast dynamics control
• Flexible routing: 2 stereo groups, 4 aux sends (2 pre, 1 pre/post, 1 post), FX send
• Balanced +28 dB main outs on XLR + TRS for robust, noise-free connections

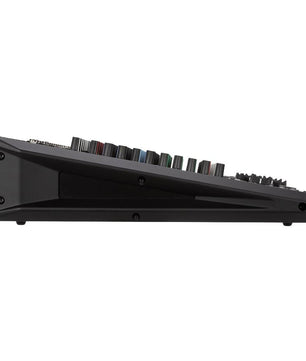

• Sturdy metal chassis with 60 mm faders and universal internal power supply
• Engineered in Italy with a fully balanced signal path from input to output

RCF F 16XR Description

The F 16XR builds on RCF’s analog heritage with a clean, fully balanced architecture and musical EQ. The integrated PRO DSP FX provides studio-style reverbs and delays for quick polish without extra outboard. With a 2×2 USB interface, it captures stereo mixes to your DAW and plays back tracks for backing or break music.

Designed for portability and reliability, the mixer’s metal chassis, 60 mm faders, and +28 dB balanced main outputs make it a dependable hub for venues, bands, houses of worship, and rental rigs that need straightforward operation and consistent performance.

F 16XR Features

• 16-channel analog mixing console
• 10 mic preamp inputs; 8 mono line inputs; 4 stereo line inputs
• PRO DSP FX onboard with 16 presets (Halls, Rooms, Plates, Spring; Mono/Stereo/Multitap delays; Chorus, Flanger, Echo)
• Stereo recording and playback via USB port (2 in / 2 out)
• 6 single-control compressors (channels 1–6)
• Balanced main output +28 dB (Stereo XLR + TRS)
• Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
• 60 mm faders
• Internal universal power supply
• Designed and engineered in Italy

F 16XR Specifications

• Frequency Response: 20 Hz – 20 kHz
• THD+N (20 dB gain, 0 dBu out): <0.02% A-Weighted
• Dynamic Range: >85 dB
• Total Channels: 16
• Mic Inputs: 10; Gain range 0 dB to −50 dB; Input noise −124 dBu A-Weighted; Impedance 14 kΩ; Low-cut 80 Hz; Phantom power +48 V
• Mono Line Inputs: 8; Gain selection 20 dB to −30 dB; Impedance 21 kΩ
• HI-Z Line Inputs: 1; Impedance 1 MΩ
• Stereo Line Inputs: 4; Gain selection 20 dB to −30 dB; Impedance 14 kΩ
• Input Connectors: XLR, ¼" Jack, RCA
• Main Mix Outputs: 1 (balanced)
• Control Room: Yes
• FX Send: 1
• Aux Sends: 3 (2 PRE / 1 PRE-POST)
• Aux Outputs: 4
• Group Outs: 4
• Phones: 1

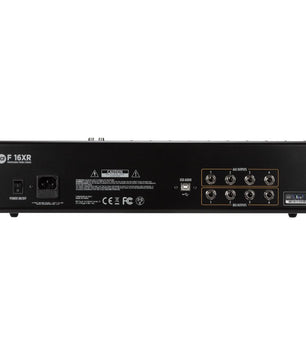

• Output Connectors: XLR, ¼" Jack
• Main Out Level: +28 dBu
• Aux Out Level: +28 dBu
• Group Out Level: +28 dBu
• Phones Out Impedance: 150 Ω
• Phones Out Level: 10 dBm
• Channel EQ: High ±15 dB @ 10 kHz (shelving); Mid ±15 dB @ 100 Hz–8 kHz (bell); Low ±15 dB @ 100 Hz (shelving)
• Internal Effects: 1 send effects engine
• USB Audio: Type-B; 2-track play / 2-track record; 44.1/48.0 kHz
• Footswitch: Yes
• Power Supply: Internal, 100–240 V; Max consumption 30 W
• Compliance: CE compliant
• Chassis: Metal; Color: Black
• Dimensions (H × W × D): 4.21 in × 18.86 in × 15.98 in (107 mm × 479 mm × 406 mm)
• Weight: 14.11 lb (6.4 kg)
• Shipping Dimensions (H × W × D): 5.91 in × 17.83 in × 20.59 in (150 mm × 453 mm × 523 mm)
• Shipping Weight: 16.31 lb (7.4 kg)
