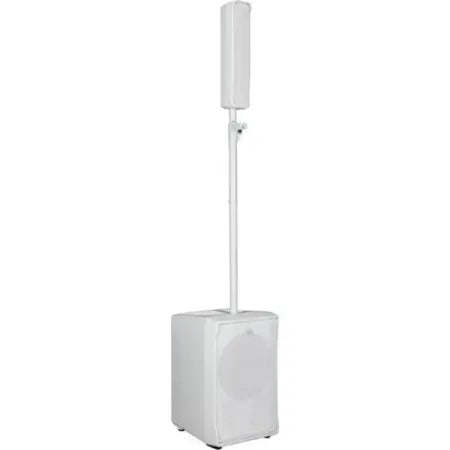

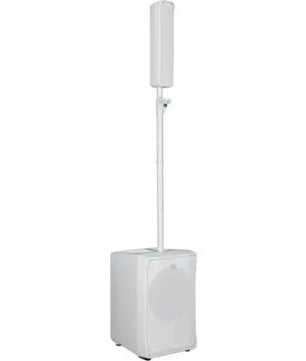

RCF Evox JMix 8W | 12in - 128 dB | Portable PA with 8-Channel Digital Mixer & App Control

All-in-One White Column Array PA System with Built-in Digital Mixer

The RCF Evox JMix 8W is an advanced portable column array PA system that builds upon the Evox J8 with the addition of a powerful 8-input digital mixer. Designed for live sound, DJs, corporate events, and musicians, this system features 1400W peak power, a high-performance 12” woofer, and remote control capabilities via a mobile app. With advanced DSP processing, Bluetooth audio streaming, and professional-grade effects, the JMix 8W delivers stunning audio quality in a sleek, elegant white finish.

RCF Evox JMix 8W Competitive Differences

• Integrated 8-Channel Digital Mixer – Built-in DSP with multiple FX, amp simulation, and remote control via iOS/Android app.
• 1400W Class-D Amplification – Produces 128 dB SPL with outstanding clarity.
• 12” High-Powered Woofer – Delivers deep, powerful bass response.
• 8 x 2” Full-Range Drivers – Ensures pristine mids and highs with wide dispersion.
• 120° x 30° Wide Coverage – Even sound distribution across large areas.
• Bluetooth Audio Streaming – Enables wireless music playback from mobile devices.
• FiRPHASE DSP Technology – Optimized phase response for natural and accurate sound.
• Lightweight & Durable PP Composite Cabinet – Portable yet rugged for professional use.
• Elegant White Finish – Perfect for high-end venues, weddings, and corporate events.

RCF Evox JMix 8W Description

The RCF Evox JMix 8W is an all-in-one solution for musicians, DJs, and event professionals who need a powerful, portable sound system with mixing capabilities. The onboard Z.CORE DSP not only provides full mix functions but also includes high-quality instrument FX and AMP simulations for live performances. With Bluetooth audio streaming and a Hi-Z instrument input, the Evox JMix 8W offers unmatched versatility.

The system’s 12” high-excursion woofer and eight 2” full-range drivers deliver a rich, full-range sound with crystal-clear vocals, deep bass, and even coverage. The 120° horizontal and 30° vertical dispersion ensure a consistent listening experience in any venue.

The RCF Evox iOS/Android app allows users to manage their mix remotely, adjusting levels, effects, and EQ settings with ease. This makes the Evox JMix 8W an ideal choice for performers and audio engineers looking for convenience and professional sound quality.

RCF Evox JMix 8W Features

• 128 dB max SPL for powerful sound projection
• 1400W peak power (700W RMS)
• 8-channel digital mixer with built-in DSP and FX
• 12” high-excursion woofer with 2.5” voice coil
• 8 x 2” ultra-compact full-range drivers
• 120° x 30° dispersion for wide sound coverage
• Advanced FiRPHASE DSP processing for high-definition sound
• Bluetooth audio streaming for wireless playback
• Lightweight polypropylene composite enclosure
• Top handle for easy transport
• Elegant white finish for premium event settings

RCF Evox JMix 8W Specifications

• Acoustical:
  • Frequency Response: 40 Hz – 20 kHz
  • Max SPL: 128 dB
  • Horizontal Coverage: 120°
  • Vertical Coverage: 30°
• Transducers:
  • 8 x 2” full-range drivers with 1.0” voice coil
  • 12” woofer with 2.5” voice coil
• Input/Output:
  • Balanced/unbalanced input signal
  • XLR and Jack input connectors
  • XLR output connectors
  • Input sensitivity: -2 dBu / +4 dBu
• Processor Section:
  • Crossover Frequency: 220 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • EQ: 1 Semi-Parametric / 2 Shelving
  • Controls: Volume, Boost, Mic/Line
• Power:
  • 1400W Peak (700W RMS)
  • HF: 400W Peak, 200W RMS
  • LF: 1000W Peak, 500W RMS
  • Cooling: Convection
• Physical Specs:
  • Cabinet Material: PP Composite
  • Color: White
  • Grille: Steel
  • Handles: 1 Top
• Dimensions & Weight:
  • Height: 24.53 inches (623 mm)
  • Width: 15.75 inches (400 mm)
  • Depth: 18.11 inches (460 mm)
  • Weight: 53.79 lbs (24.4 kg)

RCF Evox JMix 8W vs. Evox J8W

• The JMix 8W includes a built-in 8-channel digital mixer for enhanced control and effects.
• The J8W offers the same speaker system but without the integrated mixer.

What’s in the Box?

• (1) RCF Evox JMix 8W Active Column Array System
• (1) Power Cable
• (1) User Manual
