Portable Column PA System with Built-in Mixer, FX, and Bluetooth® Control

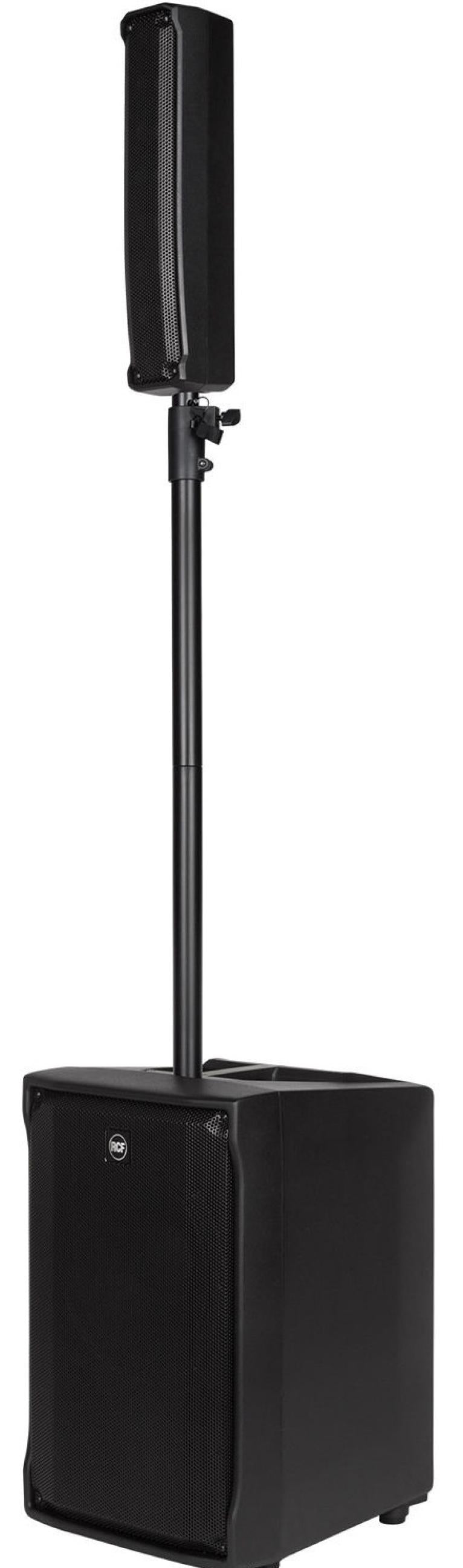

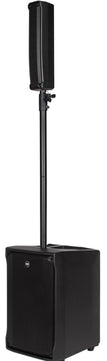

The RCF EVOX JMix 8 is an all-in-one portable PA system that combines a high-output 12" subwoofer and column array with a powerful 8-input digital mixer, built-in effects, amp simulations, and Bluetooth® remote control. Delivering 128 dB of clean, full-range sound with intuitive onboard controls and app-based wireless management, it's the perfect solution for solo performers, DJs, and mobile entertainers.

RCF EVOX JMix 8 Competitive Differences

Integrated 8-channel digital mixer with FX, amp simulations, and Bluetooth® control
RCF Z.CORE DSP with Hi-Z input for instruments and 48V phantom power for mics
Delivers 128 dB SPL from a 12” subwoofer and 8 x 2” column drivers
RCF EVOX App for iOS/Android provides complete remote control via Bluetooth®
Lightweight and portable with optional trolley-style cover for transport
Progressive array design offers 120° x 30° consistent coverage
FiRPHASE processing ensures zero-degree phase response and clarity

RCF EVOX JMix 8 Description

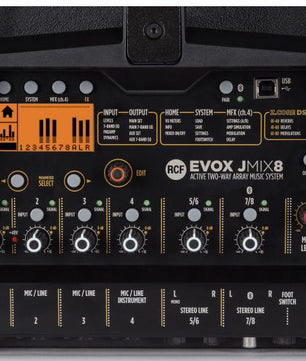

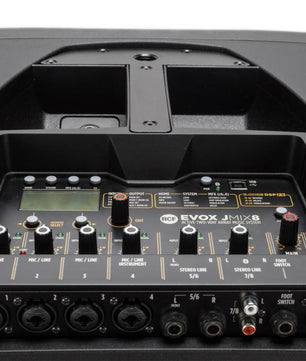

The RCF EVOX JMix 8 builds upon the successful EVOX J Series by integrating a fully functional 8-input digital mixer with DSP, multi-effects, and amp simulation—turning this column PA system into a self-contained performance powerhouse. Featuring a 12” subwoofer for deep bass and eight 2” full-range drivers arranged in a vertical line array, it offers wide horizontal dispersion and precise vertical coverage for even sound across any venue. The onboard digital mixer can be accessed via a color LCD interface or wirelessly through the RCF EVOX App. The mixer supports microphones, instruments, and line-level sources, including a Hi-Z input and 48V phantom power. With 3-band EQ, dynamics, reverb, delays, and insert FX, users can shape their sound with precision—all without extra gear. With 1400W of peak power, FiRPHASE processing, and a rugged but lightweight composite cabinet, the EVOX JMix 8 is engineered for clarity, portability, and fast setup. Whether you're performing solo, hosting an event, or DJing a party, this system delivers professional audio performance in a truly mobile format.

EVOX JMix 8 Features

Integrated 8-channel digital mixer with internal effects and amp simulation

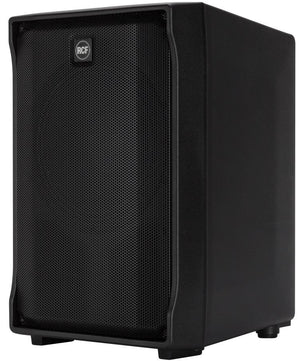

12” high-excursion woofer with bass reflex housing
8 x 2” full-range drivers in a vertical array
Maximum SPL: 128 dB
1400W peak / 700W RMS Class-D amplification
RCF Z.CORE DSP engine with 32-bit floating point processing
RCF EVOX App (iOS/Android) for wireless Bluetooth® mixer control
FiRPHASE technology for linear phase response

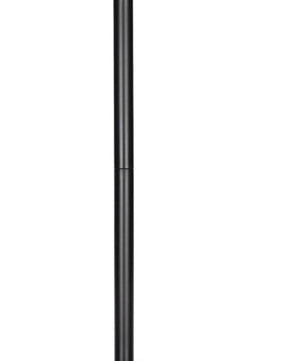

Adjustable pole-mount system for fast setup
Top handle and optional trolley cover for transport

EVOX JMix 8 Specifications

Frequency Response: 40 Hz – 20,000 Hz
Max SPL: 128 dB
Coverage: 120° horizontal x 30° vertical
Transducers:
- Woofer: 1 x 12” (2.5” v.c.)
- Full-Range: 8 x 2” (1.0” v.c.)
Amplifier Power: 1400W peak (400W HF / 1000W LF), 700W RMS (200W HF / 500W LF)
Cooling: Convection

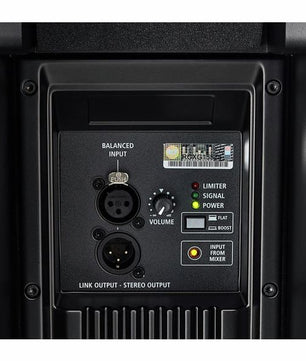

Input Connectors: XLR, Jack (balanced/unbalanced)
Output Connectors: XLR
Input Sensitivity: -2 dBu / +4 dBu
Crossover Frequency: 220 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
DSP:
- 32-bit floating point signal processing
- 24-bit A/D and D/A conversion at 48 kHz
- Dynamic Range: 108 dB

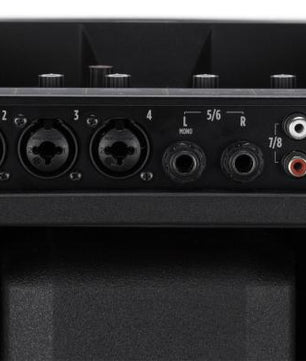

Inputs:
- Mic Inputs: 4 (3 kΩ, gain 0–45 dB)
- Mono Line Inputs: 4
- Stereo Line Inputs: 2
- Hi-Z Instrument Input: 1 (1 MΩ)
Outputs:
- Main Output: 19 dBu / 150 Ω
- Aux Output: 19 dBu / 150 Ω
EQ:
- Input EQ: 3-band (High/Low shelving, sweepable Mid)
- 7-band graphic EQ on Main Mix and AUX Send
Effects:
- 1 x MultiFX Send
- 1 x Insert FX
Compressor: 4 mono compressors (6 presets)
Aux Sends: 1 AUX (PRE/POST), 1 FX POST
Phantom Power: +48V
USB Audio Playback: 2 tracks
Footswitch Control: Yes
Power Supply: Internal
Cabinet Material: Polypropylene composite
Grille: Steel
Handles: 1 top
Pole Mount: M20 threaded insert
Color Options: Black or White
Dimensions (H x W x D): 24.53 x 15.75 x 18.11 in (623 x 400 x 460 mm)
Weight: 48.94 lbs (22.2 kg)
Shipping Dimensions (H x W x D): 26.61 x 17.76 x 22.87 in (676 x 451 x 581 mm)
Shipping Weight: 63.93 lbs (29 kg)
Safety Compliance: CE certified
