RCF Evox 12 Pair w/ Flight Case | Column Array PA System | Dual 15″ Woofers

Powerful and Portable Column Array PA System with Secure Transport

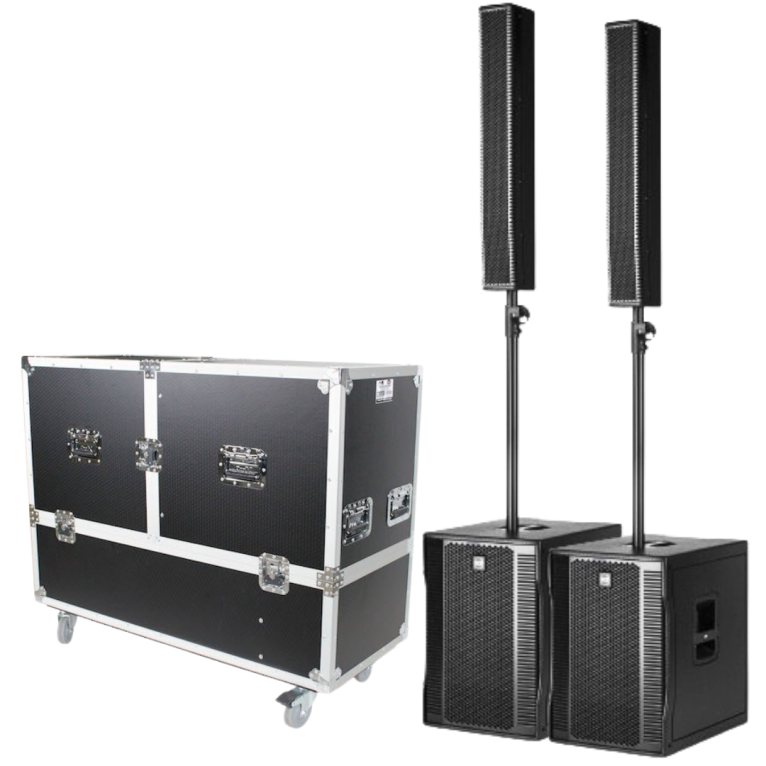

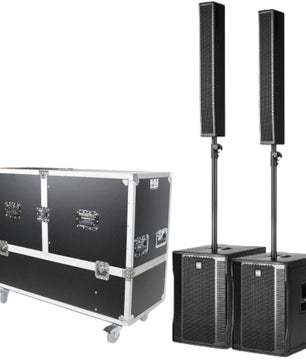

The RCF Evox 12 Pair with Dual Flight Case is a complete professional audio solution designed for superior sound reinforcement and easy portability. Featuring two RCF Evox 12 column array systems and a ProX X-EVO1250X2W dual flight case, this package is perfect for DJs, live performers, corporate events, and touring professionals who demand high-quality sound and reliable protection.

RCF Evox 12 Pair Competitive Differences

• Powerful 1400W Active PA System – Each RCF Evox 12 delivers 130 dB SPL with a wide 90° x 30° coverage pattern.
• Superior Sound Quality – Features eight 4” neodymium full-range drivers and a 15” high-excursion subwoofer for deep bass and clear highs.
• Portable and Easy to Set Up – Lightweight design with pole-mountable configuration for quick deployment.
• Innovative DSP Processing – Advanced digital signal processing ensures optimal sound performance.
• Rugged and Secure Transport Case – The ProX X-EVO1250X2W dual flight case provides reinforced protection with a high-density foam interior and durable hardware.
• Built for Professionals – Ideal for live music, DJs, corporate events, and mobile entertainment setups.

RCF Evox 12 Pair with Dual Flight Case Description

The RCF Evox 12 is a high-performance active column array system designed for professional-grade sound reinforcement. Its unique design includes a 15” woofer for deep and punchy bass, paired with eight 4” full-range neodymium drivers for pristine clarity and coverage. The system's Class-D amplifier delivers a total of 1400W peak power, ensuring powerful sound reproduction with a maximum SPL of 130 dB.

To enhance portability and protection, this package includes the ProX X-EVO1250X2W dual flight case. This ATA-300 style case is crafted from honeycomb-laminated 3/8” plywood, featuring industrial-grade recessed handles, heavy-duty steel ball corners, and built-in casters for easy transport. With a high-density foam interior, it safeguards your Evox 12 systems from impact, dust, and wear during transit.

RCF Evox 12 Features

• 1400W peak power, 700W RMS
• 130 dB max SPL
• 40 Hz – 20 kHz frequency response
• 15” high-excursion woofer
• 8 x 4” neodymium full-range drivers
• 90° x 30° slightly tilted pattern control
• Advanced DSP processing for superior audio performance
• Pole mountable for flexible setup options

RCF Evox 12 Specifications

• Acoustical:
  • Frequency Response: 40 Hz – 20 kHz
  • Max SPL: 130 dB
  • Horizontal Coverage: 90°
  • Vertical Coverage: 30°
• Transducers:
  • 8 x 4” full-range drivers with 1.0” voice coil
  • 15” woofer with 3.0” voice coil
• Input/Output:
  • Balanced/unbalanced input signal
  • XLR and Jack input connectors
  • XLR output connectors
  • Input sensitivity: -2 dBu / +4 dBu
• Processor Section:
  • Crossover Frequency: 180 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Volume, EQ
• Power:
  • 1400W Peak (700W RMS)
  • HF: 400W Peak, 200W RMS
  • LF: 1000W Peak, 500W RMS
  • Cooling: Convection
  • Power Connections: VDE
• Physical Specs:
  • Cabinet Material: Baltic birch plywood
  • Color Options: Black or White (RAL 9003)
• Dimensions & Weight:
  • Height: 86.61 inches (2200 mm)
  • Width: 16.14 inches (410 mm)
  • Depth: 22.05 inches (560 mm)
  • Weight: 80.25 lbs (36.4 kg)
• Shipping Information:
  • Package Height: 25.04 inches (636 mm)
  • Package Width: 18.07 inches (459 mm)
  • Package Depth: 24.13 inches (613 mm)
  • Package Weight: 96.76 lbs (43.89 kg)

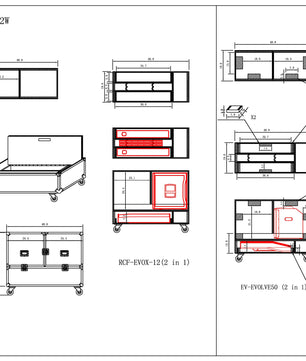

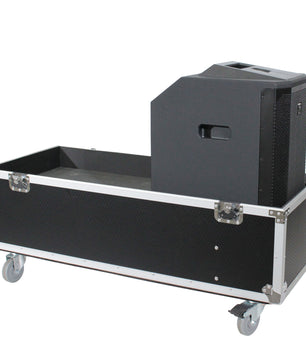

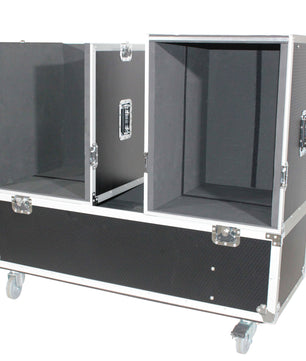

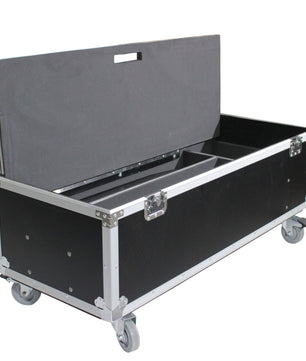

ProX X-EVO1250X2W Flight Case Features

• ATA-300 Style Flight/Road Case
• Signature Honeycomb Digital™ Laminated 3/8” Plywood
• Heavy-duty steel ball corners & dual anchor rivets
• Recessed butterfly twist-lock latches (padlock-ready)
• High-density foam interior for superior protection
• Spring-action rubber grip recessed handles
• Aluminum tongue-and-groove fit for secure closure
• 4” industrial-grade casters (2 locking)

What’s in the Box?

• (2) RCF Evox 12 Active Column Array Systems
• (1) ProX X-EVO1250X2W Dual Flight Case
