RCF ART 945A Pack with FBT Subs

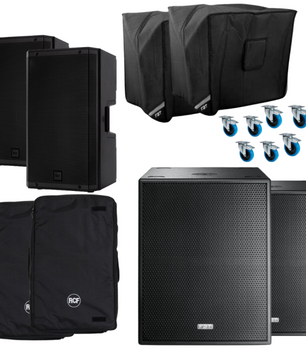

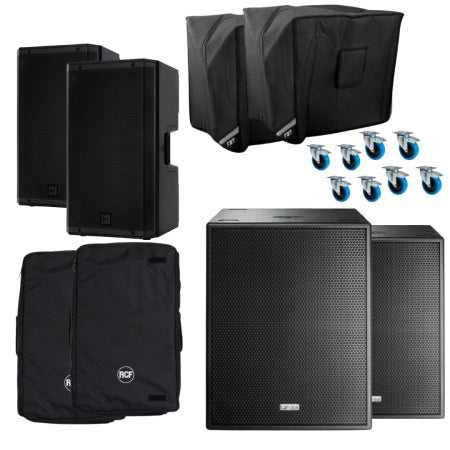

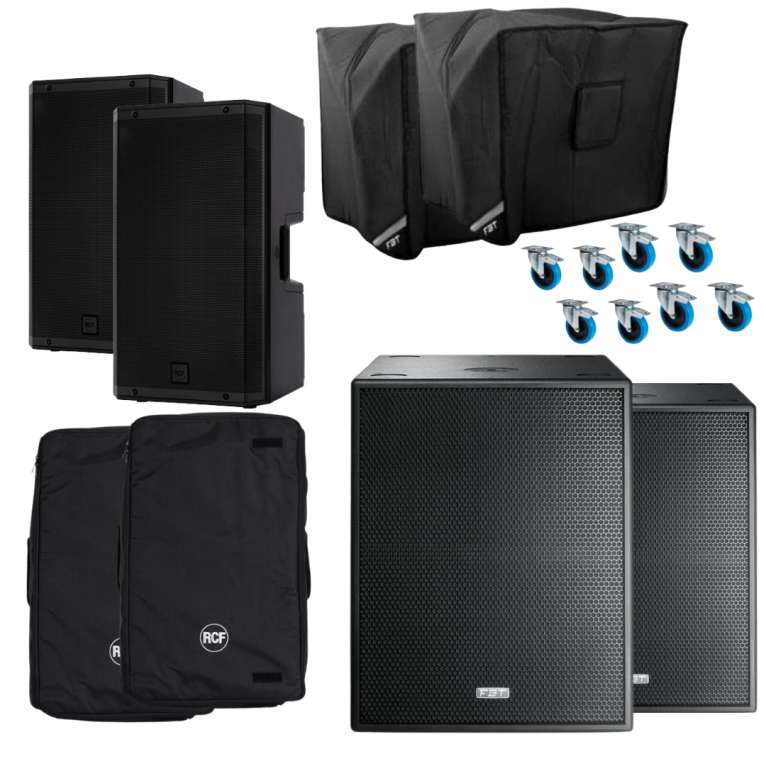

The ART 945A Pack with FBT Subs is a comprehensive audio system designed to provide high-quality sound reinforcement for various events and venues. This package includes the following components:

1. 2 RCF ART 945A Speakers: The RCF ART 945A is a powerful active speaker known for its excellent sound quality and versatility. These speakers are designed to deliver clear and accurate audio reproduction across a wide frequency range.

2. 2 FBT Q118SA Subs: The FBT Q118SA Subs are professional-grade subwoofers that complement the ART 945A speakers. These subs provide enhanced low-frequency performance, adding depth and impact to the overall sound.

3. 4 Speaker Covers: The package includes four speaker covers, which are designed to protect the RCF ART 945A speakers and FBT Q118SA subs during transport and storage. These covers help to prevent scratches, dust, and other potential damages.

4. 2 Sub Wheel Packs: The sub wheel packs consist of sturdy and reliable wheels that can be attached to the FBT Q118SA subs. These wheels make it easier to transport and maneuver the subs, allowing for convenient setup and takedown.

Overall, the ART 945A Pack with FBT Subs offers a complete audio solution for professional sound reinforcement. With the combination of the RCF ART 945A speakers and FBT Q118SA subs, this package provides a balanced and powerful sound system that is suitable for various applications, including live performances, DJ events, conferences, and more. The inclusion of speaker covers and sub wheel packs ensures that the equipment is protected and can be easily transported, making it a convenient choice for mobile setups.

SPECIFICATIONS:

RCF ART 945A | 15in - 135dB:

Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
135 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
60°

Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 4.0'' v.c

WOOFER:
15'' neo, 3.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

Processor section
CROSSOVER FREQUENCIES:
650Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Linear, Boost, Stage, Volume
Power section
TOTAL POWER:
2100 W Peak

HIGH FREQUENCIES:
700 W Peak

LOW FREQUENCIES:
1400 W Peak

COOLING:
Convection

CONNECTIONS:
Powercon TRUE1 TOP IN/OUT
Standard compliance
CE MARKING:
Yes

Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 Top, 1 x M10 each side

HANDLES:
1 Top , 1 each side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
717 mm / 28.23 inches

WIDTH:
415 mm / 16.34 inches

DEPTH:
410 mm / 16.14 inches

WEIGHT:
22.1 kg / 48.72 lbs

Shipping information
PACKAGE HEIGHT:
760 mm / 29.92 inches

PACKAGE WIDTH:
475 mm / 18.7 inches

PACKAGE DEPTH:
470 mm / 18.5 inches

PACKAGE WEIGHT:
24.3 kg / 53.57 lbs


FBT Q118SA | 18in - 139dB:

Processed Active Subwoofer

· 18" woofer with 4" voice coil

· 1200W RMS Class D power amplifier with switch mode power supply

· DSP with 6 presets, digital 6 step Delay

· Control panel with: 3 status led indicators, Phase, Level, Preset, Delay, stereo XLR in/link, Power supply with powerCON TRUE1 cable duplex with input and output

· 0,70" baltic birch plywood cabinet with scratch and scuff resistant paint finish

· 2 M20 top mount speaker stand socket, 4 aluminum carrying handles, optional wheel

Code: 39893

Configuration: 1 BASS REFLEX way

Built-in amplifier LF/HF: 1200 W RMS

Built-in amplifier peak LF/HF: 2400 W

Frequency response: 30Hz - 100Hz -6dB

Low Frequency woofer: 1x18- 4 coil inch

Maximum SPL cont/peak: 135/139 half-space dB

Dispersion: omnidirectional HxV

Input impedance: 22 Kohm

Crossover Frequency: preset dependant KHz

AC Power requirements: 800 VA

Input connector: XLR with loop

Power cord: 5 m/ft

Net Dimension (WxHxD): 550 x 700 x 720 / 21,65 x 27,55 x 28,34 mm/inch

Transport Dimension (WxHxD): 610 x 857 x 780 / 24,01 x 33,74 x 30,70 mm/inch
