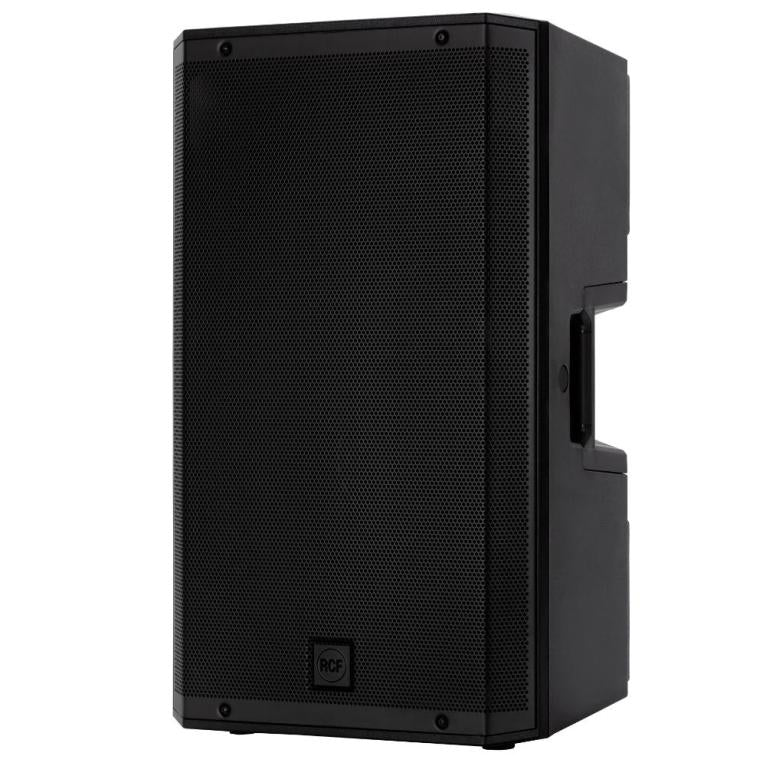

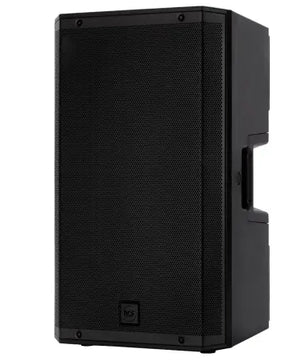

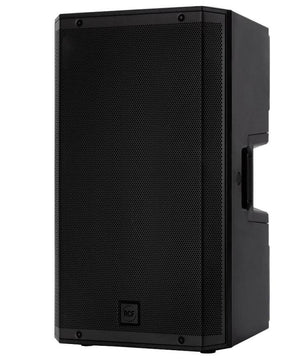

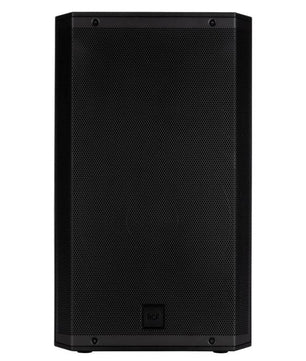

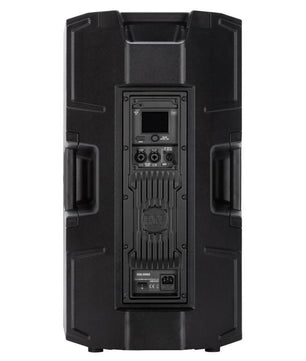

RCF ART 915AX | 15in - 131dB

ART 915-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 15" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 131 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

FEATURES:

Built-in 6-channel Digital Mixer
Advanced User Interface w/ touch panel and remote control
1.75" Compression Driver and 15" Woofer
Up to 131 dB Sound Pressure Level
2100W Class-D Bi-Amplification
Dual combo preamp with 48V Power and Mini-jack stereo line input
Bluetooth® stereo audio input, with dual speaker pairing option
True Resistive Waveguide, FiRPHASE, and Bass Motion Control

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
TRANSDUCERS
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
15'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
Combo XLR/Jack
Output connectors:
XLR
PROCESSOR SECTION
Crossover Frequencies:
1600Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.
POWER SECTION
Total Power:
2100 W Peak, 1050 W RMS
High frequencies:
700 W Peak, 350 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
VDE
ELECTRONIC SPECIFICATIONS
Frequency Response:
20 Hz ÷ 20 Hz
THD+N, 20dB gain, 0dBu out
0.005% A-Weighted
PROCESSING
Processing Channels:
6
Signal Processing:
24 Bit
A/D-D/A conversion:
32 Bit @ 48.0 kHz
Dynamic range:
110
INPUTS
Mic:
2
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 42 dB
Input Noise Level:
-114 dBu A-Weighted
Mic Inputs Impedance:
6 kohm
Low Cut:
20 Hz ÷ 400 Hz
Phantom Power +48V:
Yes
Mono Line:
2
Gain Selection:
0 dB ÷ 22 dB
Line Input Impedance:
21 kohm
A/D Dynamic range:
114 dB
Stereo Line:
1
Gain Selection:
0 dB ÷ 10 dB
Stereo Line Input Impedance (kOhm)
13 kohm
OUTPUTS
Main MIX:
1
OUTPUTS SPECIFICATIONS
Main Out Impedance:
150 ohm
Main Out Level:
22 dBu
D/A Dynamic Range:
114 dB
COMPRESSORS
RCF Compressors:
Compressors on MIC/LINE CH1 & CH2 inputs.
EQ
Input Channels EQ:
2 Shelving 1
Description:
3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output,
INTERNAL EFFECTS
Send Effects:
1
MASTERING PROCESSORS
Main OUT type:
MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
STANDARD COMPLIANCE
Safety agency:
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
PP Composite
Hardware:
1 x M10 top, 1 x M10 each side
Handles:
1 top, 1 each side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
SIZE
Height:
717 mm / 28.23 inches
Width:
415 mm / 16.34 inches
Depth:
410 mm / 16.14 inches
Weight:
21.8 kg / 48.06 lbs
SHIPPING INFORMATION
Package Height:
760 mm / 29.92 inches
Package Width:
470 mm / 18.5 inches
Package Depth:
475 mm / 18.7 inches
Package Weight:
24 kg / 52.91 lbs
