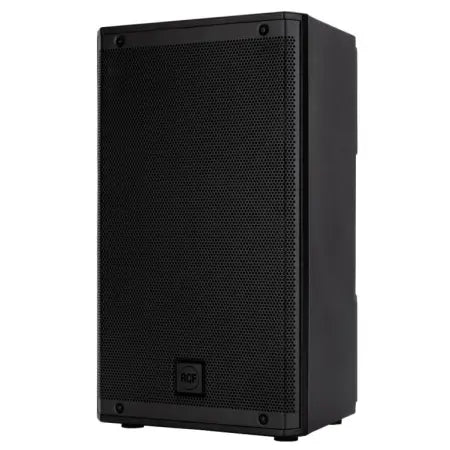

RCF ART 910AX | 10in - 130dB

ART 910-AX is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control (BMC) DSP processing, perfectly tuned for each model, audiences will experience absolute clarity and deep, powerful bass response. The ART 910-AX combines a powerful and high-performance amplified speaker, with a digital audio processor for maximum flexibility. Several operating modes are possible, with the speaker alone or in combination with other speakers. Audio can be streamed to the speaker, along with remote control, via Bluetooth®. All the available functions and parameters are accessible from the onboard color display via a capacitive touch screen and an encoder, as well as from a dedicated app for iOS and Android smartphones.

FEATURES:

Built-in 6-channel Digital Mixer
Advanced User Interface w/ touch panel and remote control
1.75" Compression Driver and 10" Woofer
Up to 130 dB Sound Pressure Level
2100W Class-D Bi-Amplification
Dual combo preamp with 48V Power and Mini-jack stereo line input
Bluetooth® stereo audio input, with dual speaker pairing option
True Resistive Waveguide, FiRPHASE, and Bass Motion Control

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
TRANSDUCERS
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
10'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
Combo XLR/Jack
Output connectors:
XLR
PROCESSOR SECTION
Crossover Frequencies:
1600Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.
POWER SECTION
Total Power:
2100 W Peak, 1050 W RMS
High frequencies:
700 W Peak, 350 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
VDE
ELECTRONIC SPECIFICATIONS
Frequency Response:
20 Hz ÷ 20 Hz
THD+N, 20dB gain, 0dBu out
0.005% A-Weighted
PROCESSING
Processing Channels:
6
Signal Processing:
24 Bit
A/D-D/A conversion:
32 Bit @ 48.0 kHz
Dynamic range:
110
INPUTS
Mic:
2
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 42 dB
Input Noise Level:
-114 dBu A-Weighted
Mic Inputs Impedance:
6 kohm
Low Cut:
20 Hz ÷ 400 Hz
Phantom Power +48V:
Yes
Mono Line:
2
Gain Selection:
0 dB ÷ 22 dB
Line Input Impedance:
21 kohm
A/D Dynamic range:
114 dB
Stereo Line:
1
Gain Selection:
0 dB ÷ 10 dB
Stereo Line Input Impedance (kOhm)
13 kohm
OUTPUTS
Main MIX:
1
OUTPUTS SPECIFICATIONS
Main Out Impedance:
150 ohm
Main Out Level:
22 dBu
D/A Dynamic Range:
114 dB
COMPRESSORS
RCF Compressors:
Compressors on MIC/LINE CH1 & CH2 Inputs
EQ
Input Channels EQ:
2 Shelving 1
Description:
3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output.
INTERNAL EFFECTS
Send Effects:
1
MASTERING PROCESSORS
Main OUT type:
MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
STANDARD COMPLIANCE
Safety agency:
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
PP Composite
Hardware:
1 x M10 Top and Bottom
Handles:
1 Top
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
SIZE
Height:
572 mm / 22.52 inches
Width:
330 mm / 12.99 inches
Depth:
310 mm / 12.2 inches
Weight:
15.8 kg / 34.83 lbs
SHIPPING INFORMATION
Package Weight:
17.5 kg / 38.58 lbs
