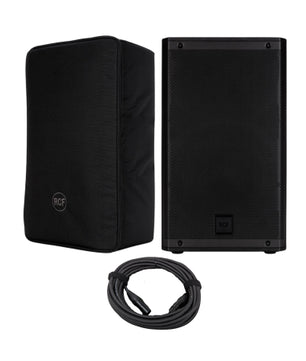

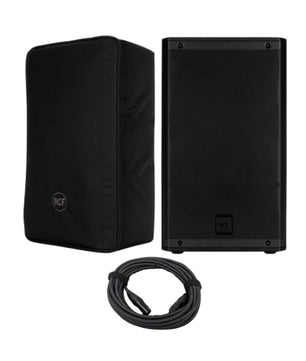

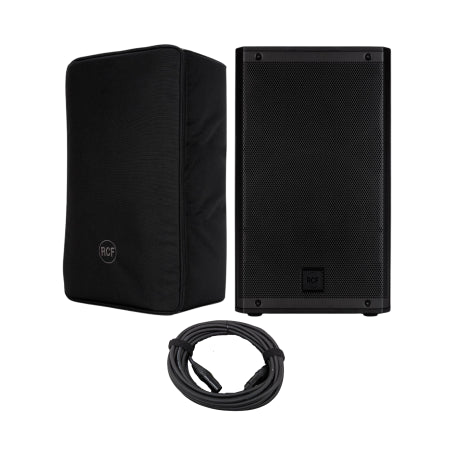

RCF ART 910-AX Speaker Package with Cover

The RCF ART 910-AX Speaker Package with Cover is a comprehensive audio solution that includes the RCF ART 910AX speaker, a protective cover (RCF CVR ART 910), and an XLR cable (SquareCable XLR-25). Here's an overview of each component:

The RCF ART 910AX is a high-quality active speaker known for its clear and powerful sound reproduction. It features a built-in amplifier and is suitable for a wide range of applications, including live performances, DJ setups, conferences, and more. The "AX" in the model name may indicate additional features or improvements compared to the standard ART 910A speaker.

The RCF CVR ART 910 is a protective cover specifically designed to fit the RCF ART 910AX speaker. It helps protect the speaker from dust, scratches, and minor impacts during transportation, storage, and use. The cover is made of durable materials and provides an extra layer of protection for your investment.

The SquareCable XLR-25 is a 25-foot XLR cable used for connecting audio sources, such as microphones, instruments, or audio playback devices, to the RCF ART 910AX speaker. XLR cables are known for their reliability and ability to transmit balanced audio signals over long distances without interference.

In summary, the RCF ART 910-AX Speaker Package with Cover is a convenient and practical solution for anyone in need of a high-quality active speaker system with added features or improvements. The ART 910AX speaker delivers exceptional sound performance, while the protective cover (RCF CVR ART 910) helps keep the speaker safe and well-maintained. The included XLR cable (SquareCable XLR-25) ensures reliable connectivity for your audio sources, making this package suitable for various live sound applications, events, and installations.

SPECIFICATIONS:

Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
TRANSDUCERS
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
10'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
Combo XLR/Jack
Output connectors:
XLR
PROCESSOR SECTION
Crossover Frequencies:
1600Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.
POWER SECTION
Total Power:
2100 W Peak, 1050 W RMS
High frequencies:
700 W Peak, 350 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
VDE
ELECTRONIC SPECIFICATIONS
Frequency Response:
20 Hz ÷ 20 Hz
THD+N, 20dB gain, 0dBu out
0.005% A-Weighted
PROCESSING
Processing Channels:
6
Signal Processing:
24 Bit
A/D-D/A conversion:
32 Bit @ 48.0 kHz
Dynamic range:
110
INPUTS
Mic:
2
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 42 dB
Input Noise Level:
-114 dBu A-Weighted
Mic Inputs Impedance:
6 kohm
Low Cut:
20 Hz ÷ 400 Hz
Phantom Power +48V:
Yes
Mono Line:
2
Gain Selection:
0 dB ÷ 22 dB
Line Input Impedance:
21 kohm
A/D Dynamic range:
114 dB
Stereo Line:
1
Gain Selection:
0 dB ÷ 10 dB
Stereo Line Input Impedance (kOhm)
13 kohm
OUTPUTS
Main MIX:
1
OUTPUTS SPECIFICATIONS
Main Out Impedance:
150 ohm
Main Out Level:
22 dBu
D/A Dynamic Range:
114 dB
COMPRESSORS
RCF Compressors:
Compressors on MIC/LINE CH1 & CH2 Inputs
EQ
Input Channels EQ:
2 Shelving 1
Description:
3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output.
INTERNAL EFFECTS
Send Effects:
1
MASTERING PROCESSORS
Main OUT type:
MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
STANDARD COMPLIANCE
Safety agency:
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
PP Composite
Hardware:
1 x M10 Top and Bottom
Handles:
1 Top
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
SIZE
Height:
572 mm / 22.52 inches
Width:
330 mm / 12.99 inches
Depth:
310 mm / 12.2 inches
Weight:
15.8 kg / 34.83 lbs
SHIPPING INFORMATION
Package Weight:
17.5 kg / 38.58 lbs
