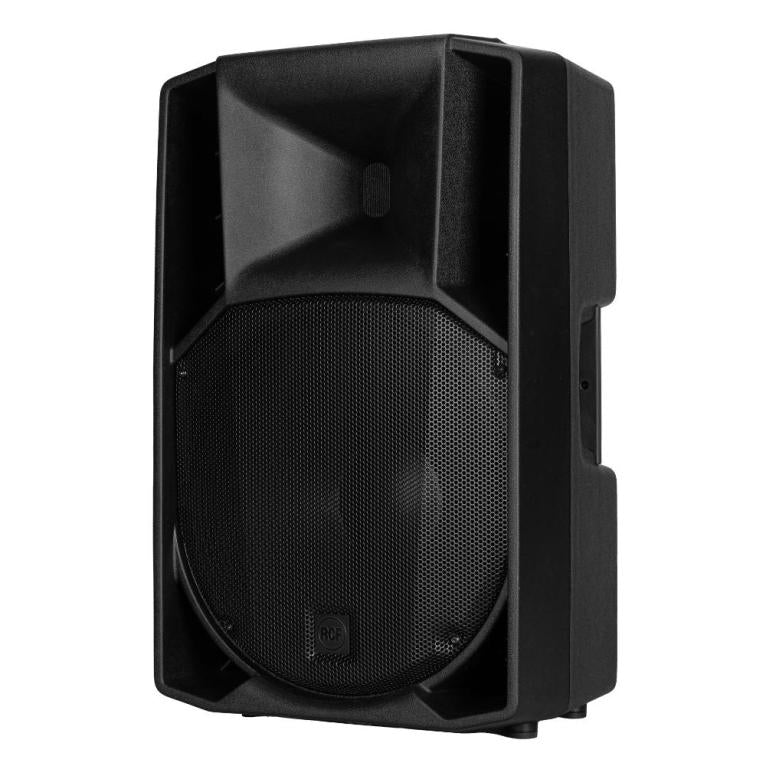

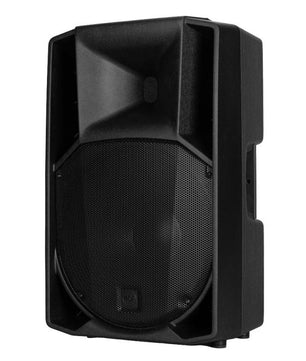

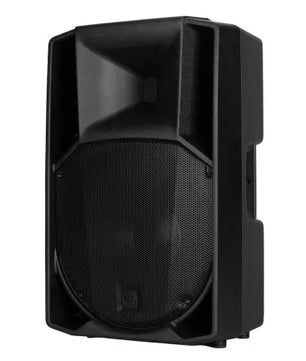

RCF ART 735-A MK5 | 15in - 132dB

ART 735-A MK5 is a unique product in its category. The 3,0" compression driver offers unique vocal clarity and sound projection. The 15” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Powerful Class D Amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Legendary Transducers
Superior Compression Drivers
The ND840 Compression Driver in pure Titanium with a 3” voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

Potent Woofer
The low-frequency transducer is a high-power 15’’ woofer with a 3" voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

Experience The Depths of Sound
XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.

Your Ideal Stage Partner
The ART 7 speakers are the perfect choice for musicians and sound provider alike. Their cabinets are molded from a proprietary polypropylene composite engineered to quell vibrations, even at the highest volume levels. This translates to exceptional reliability and resilience under rigorous stage conditions.

New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Bring ART With You

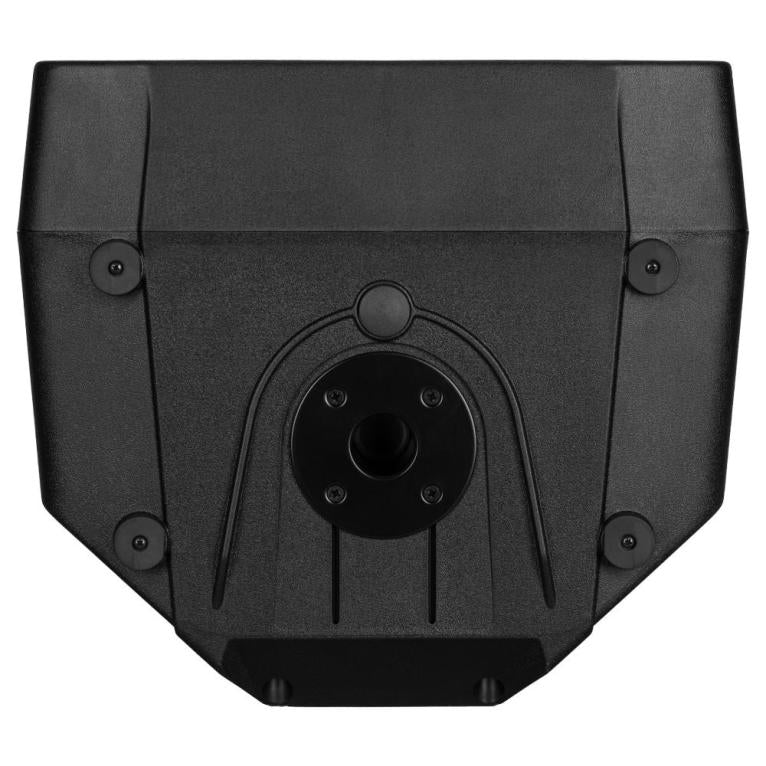

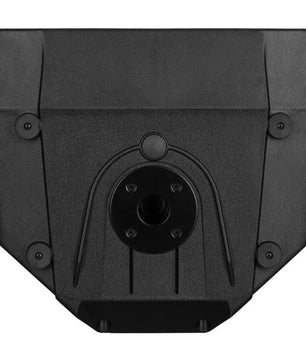

The sturdy, ergonomic cabinet is easy to carry, thanks to either the handle at the top or the practical handles on both sides. The base of each speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole. Stability and safety are assured. The rear of the cabinet is shaped to also be used as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.

FEATURES:

132 dB Max SPL
1400 WATT 2-way peak power
90° x 60°, Wide dispersion constant directivity horn
Innovative DSP Processing
3,0" Titanium diaphragm Compression Driver
15" Woofer
FiRPHASE Technology
XBOOST Low Frequencies Enhancer

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
132 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
TRANSDUCERS
Compression Driver
1 x 1.0'' neo, 3.0'' v.c
Woofer
1 x 15'', 3.0'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
PROCESSOR SECTION
Crossover Frequencies
800
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, MIC/Line
POWER SECTION
Total Power
1400 W Peak
High frequencies
400 W Peak
Low frequencies
1000 W Peak
Cooling
Convection
Connections
VDE
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Hardware
2 x M10
Handles
1 on top, 1 each side
Pole mount/Cap
Yes
Color
Black
SIZE
Height
708 mm / 27.87 inches
Width
437 mm / 17.2 inches
Depth
389 mm / 15.31 inches
Weight
21.4 kg / 47.18 lbs
SHIPPING INFORMATION
Package Height
750 mm / 29.53 inches
Package Width
500 mm / 19.69 inches
Package Depth
440 mm / 17.32 inches
Package Weight
24.4 kg / 53.79 lbs
