ProX XTP-GSBPACK3 PRO | Truss Tower Stage Lift System Package

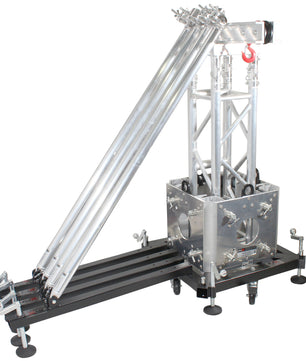

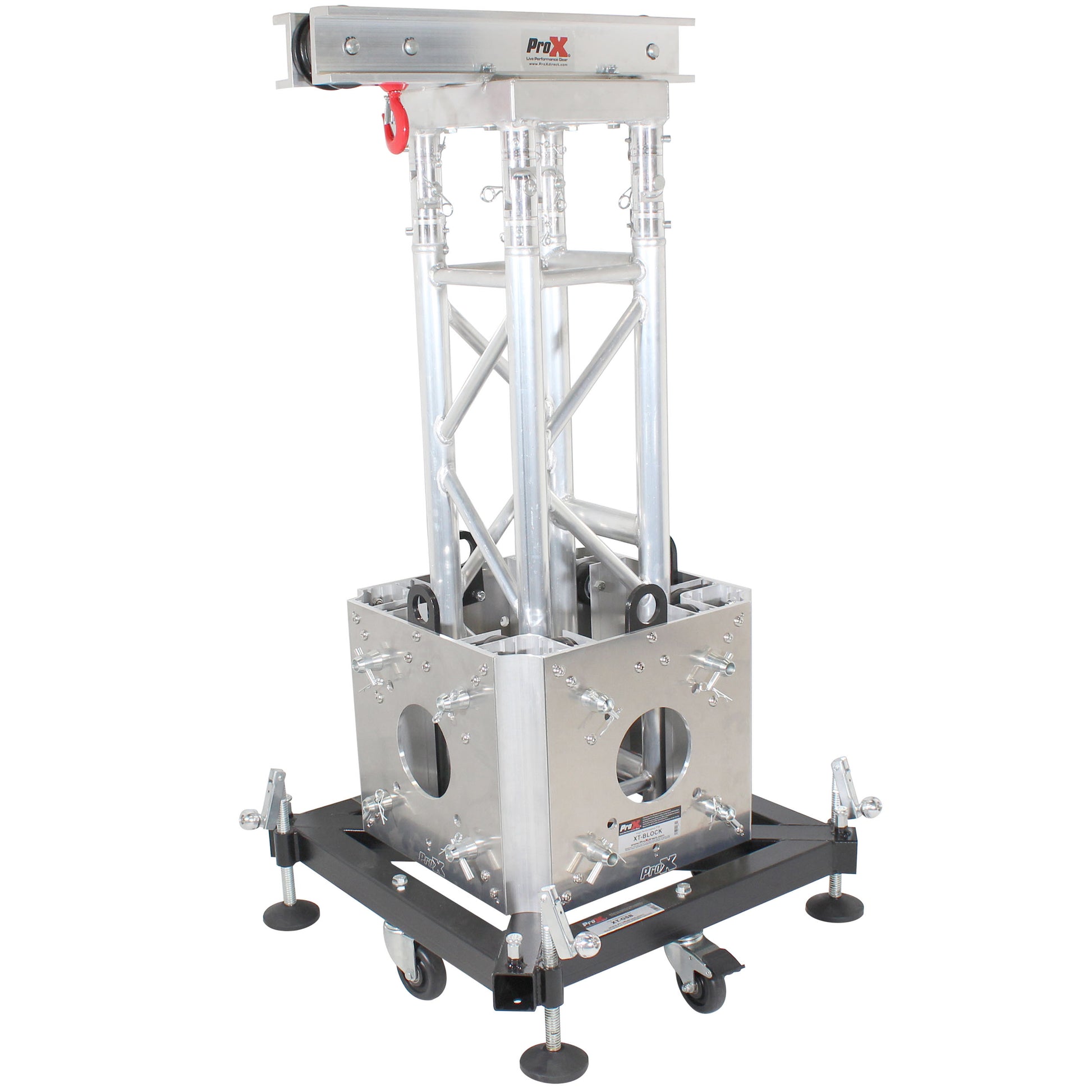

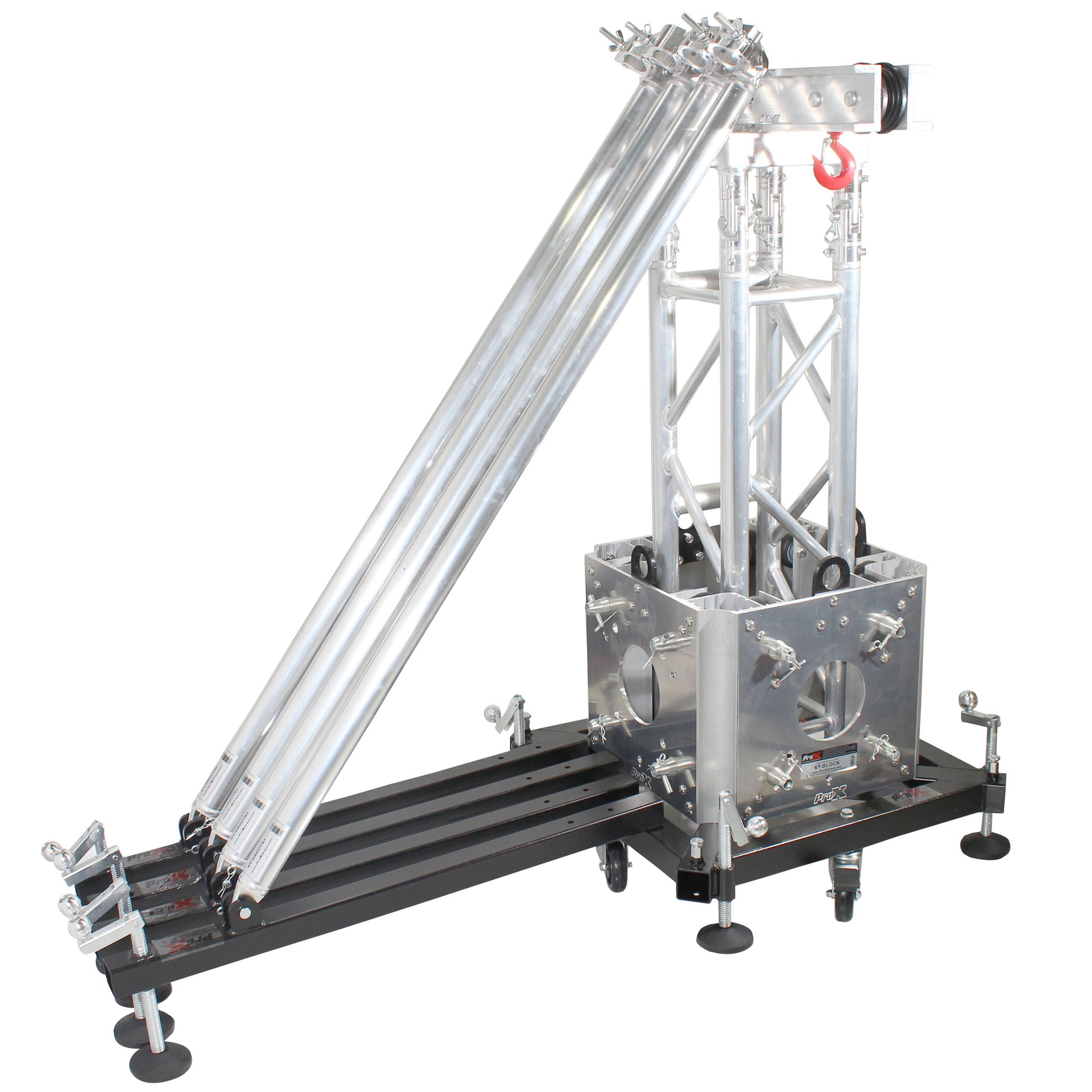

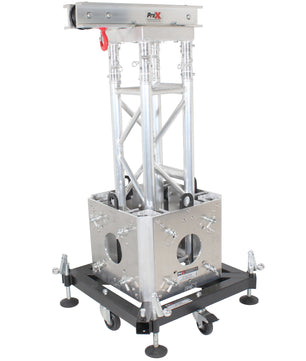

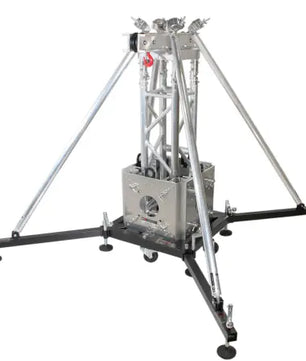

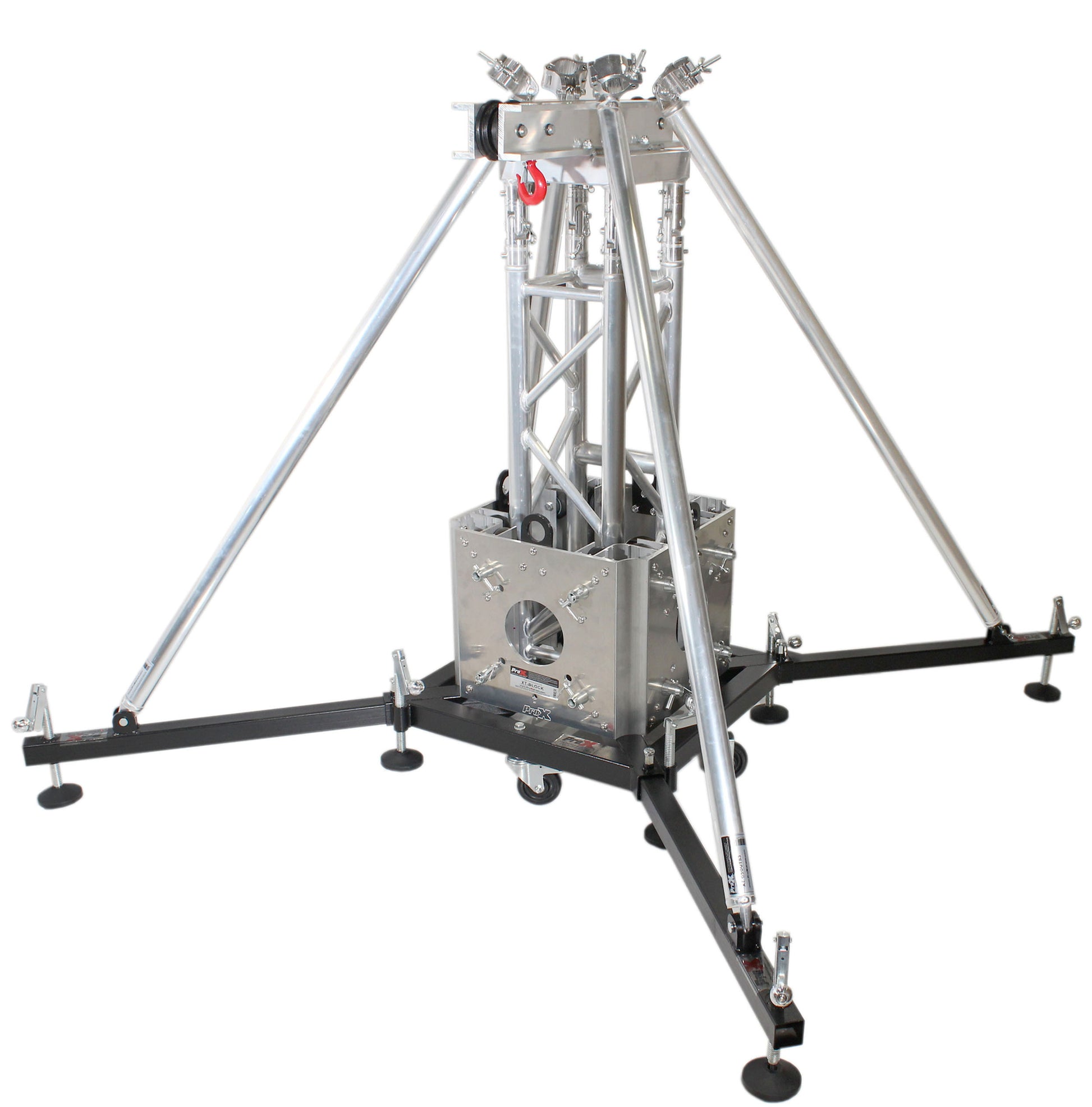

The ProX XTP-GSBPACK3 PRO is a comprehensive truss tower stage lift system package designed for mid to heavy-grade stage installations. This full package includes a four-legged outrigger truss base, 4-way square truss junction box sleeve block, and a 3' ladder truss segment. Everything you need for one climbable leg in building and flying a large-scale truss is included, except the lift hoist.

Features

ProX Trussing provides high strength with exceptional quality control and excellent value.
Manufactured to exacting specifications in our own factory
TÜV Certified Welding
Compatible with most conical coupled trussing
Includes tapered shear pins with clips

XT-SQPL Series Dimensions

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb/9.5kg per 3.28 ft/1 meter
Main Tube: 2in / 50mm
Premium Tubing - Wall Thickness: 1/8in / 3mm
Braces: .75in / 20mm
Ladder Steps: 2in / 50mm
Ladder Step Spacing: 9.84in / 250mm
Material: EN-AWT6 6082 Aluminum
TÜV Certified Aluminium Welding

Package Contents

XT-GSB MK2 Rigger Base, with Extendable Feet
XT-SQPL328 3.28ft Long LADDER Truss segment
XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps
XT-BLOCK Sleeve Block 4-Way Junction box
XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels
XT-HINGE 4 Hinge block set
Lift Hoist NOT included

Exterior Dimensions & Weight

XT-SQPL328 (1): 11.50"H x 11.50"W x 39.36"L - Weight: 23.00 lbs
XT-GSOUTS3 (4): 64.00"H x 2.00"W x 37.50"L - Weight: 29.00 lbs
XT-BLOCK-MK2 (1): 18.50"H x 22.50"W x 22.50"L - Weight: 77.30 lbs
XT-TOPCM (1): 11.50"H x 9.50"W x 24.00"L - Weight: 26.40 lbs

Shipping Dimensions & Weight

Box 1 of 6: XT-SQPL328: 13.00"H x 13.00"W x 40.00"L - Shipping Weight: 25.00 lbs
Box 2 of 6: XT-GSOUTS3 (4 boxes): 6.00"H x 8.00"W x 64.00"L - Shipping Weight: 34.00 lbs
Box 3 of 6: XT-GSB MK3: 9.00"H x 29.00"W x 29.00"L - Shipping Weight: 70.00 lbs
Box 4 of 6: XT-HINGE (4 boxes): 2.00"H x 5.00"W x 5.00"L - Shipping Weight: 2.50 lbs
Box 5 of 6: XT-BLOCK-MK2: 20.00"H x 24.00"W x 24.00"L - Shipping Weight: 80.00 lbs
Box 6 of 6: XT-TOPCM: 12.00"H x 10.00"W x 25.00"L - Shipping Weight: 28.00 lbs

Suggested Shipping Method: LTL
