ProX XTP-GS302023-PR3-12D | Stage Roofing Truss Package

ProX XTP-GS302023-PR3-12D | Stage Roofing Truss Package

$35,000.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

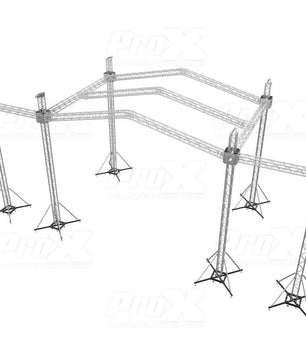

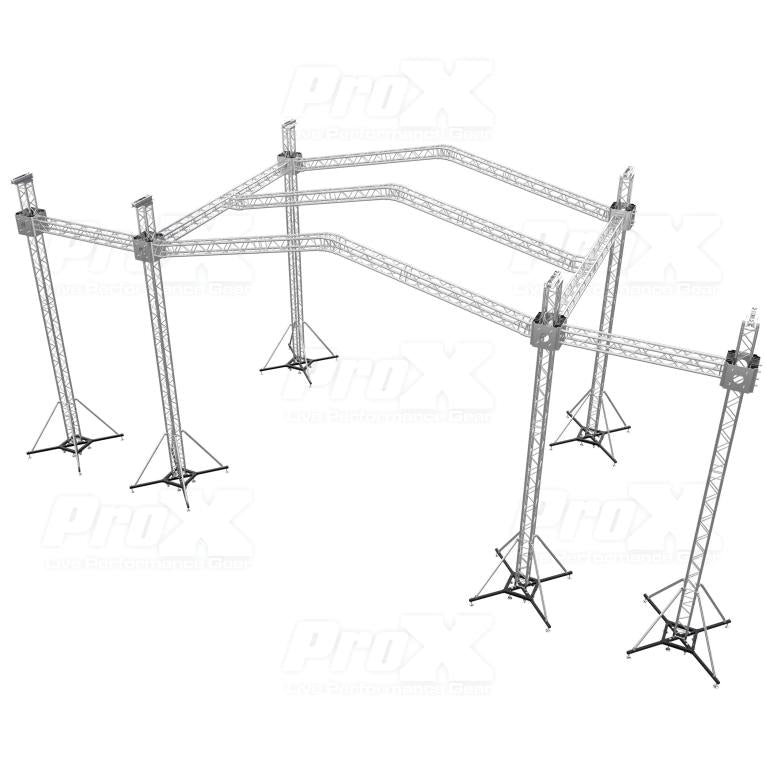

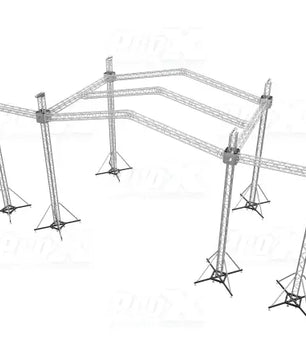

12D PR3 Stage Roofing System with 7 Ft Speaker Wings and 6 Chain Hoists | 30 Ft W x 20 Ft L x 23 Ft H

ProX XTP-GS302023-PR3-12D 12D PR3 Stage Roofing System with 7 Ft Speaker Wings and 6 Chain Hoists | 30 Ft W x 20 Ft L x 23 Ft H

Description
The ProX XTP-GS302023-PR3-12D Stage Roofing System with Speaker Wings is 30'W x 20'L x 23'H and Includes 6 Chain Hoists.  The 30-foot by 20-foot trussing area is large enough to cover a multi-person live band or a very large DJ production set up and the 7 foot wings are more than enough to hang speakers and lighting fixtures.  You can hang lighting, curtains, video screens and speakers from the truss system and adjust the height up to 23 feet high.  Scalable to smaller staging needs. The entire structure is lifted and held in place with Six (6) chain hoist lifting stations that are the stands that support the entire system. The stage roof trussing is designed to hold lighting and audio gear evenly distributed around the stage roofing system.  Guy wires required for most installations!

In this package, you have everything you need for a complete roofing solution:

6 - XTP-GSBPACK3 Truss Tower Lift Systems,
16 -  XT-SQ984 9.84ft (3.00m) Square Truss Segment,
12 - XT-SQ715 7.15ft(2.15m) Square Truss Segment,
12 - XT-SQ12D  9"(0.23m) 12D Corner,
2 - XT-JB6W-4W  6 Way Square Truss Junction Block,
8 - XT-SPFF105 Spacer 105mm Female Coupler,
2 - XT-SQ656 6.56ft(2.00m) Square Truss Segment,
3 - XT-MCH1TX2-30FT Sets of 2 1T Manual Chain Stage Hoist with 30ft Chain,
ProX XT-SQ series trussing is a rugged and durable trussing package solution.  Perfect for live outdoor or indoor productions, exhibitions,  as well as nightclubs, and other permanent installations. ProX Live Performance Gear® offers a wide variety of single tubes, mounting plates, clamps and accessories that allow limitless design configurations to suit your needs.  Always consult an engineer for complex designs!

ProX XT-SQF34 2MM SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb/9,5kg per 3.28 ft / 1 meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm
IMPORTANT:  Always know your load weight for your equipment: XT-SQ Truss Loading Chart

Features
Manufactured to Exacting Specifications in our Own Factory!
Tolerance Free Standard Conical Connectors
Truss Main Tube Wall Thickness of .08in / 2mm
Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
TUV Certified Aluminium/Steel Welding

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.
