ProX XTF-FT6033 | Compact Front-Loading Line Array Lift Tower, 728 lb Capacity, 19.5ft Max Height, Incl. Adapter

Line Array Lifting Tower for Trusses, Speakers, and LED Walls

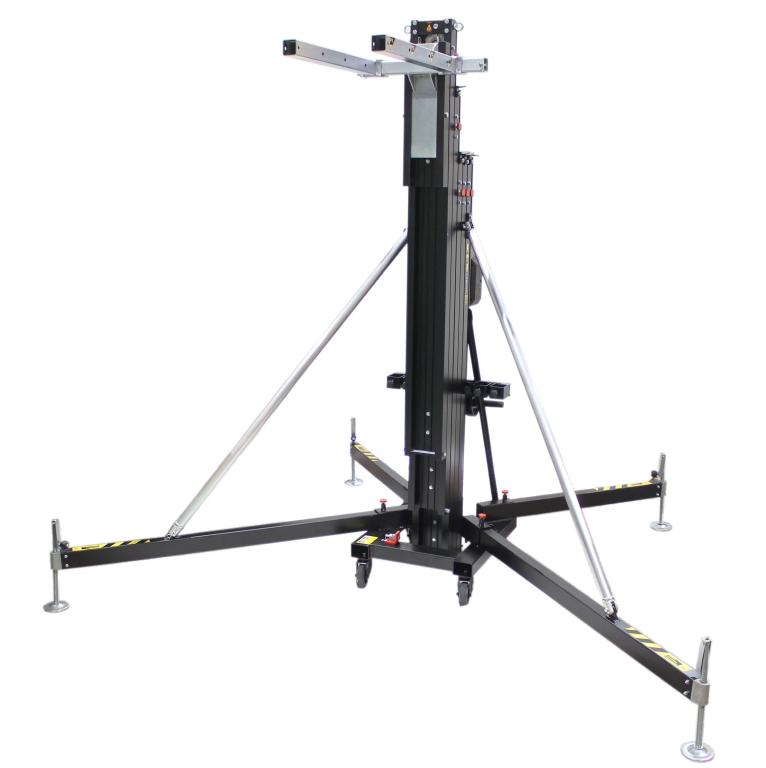

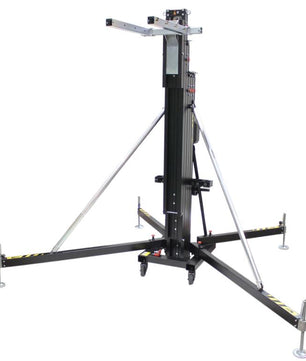

The ProX XTF-FT6033 front-loading lifting tower is a rugged and compact rigging solution for safely raising line array systems, trusses, and LED screens up to 728 lbs to a height of 19.52 ft. Designed and manufactured in Spain by FANTEK®, this heavy-duty lifting system is built for event professionals who demand reliability, portability, and safety in touring, rental, and live production environments.

ProX XTF-FT6033 Competitive Differences

• Front-loading lift design enables raising from the floor, minimizing manual strain
• Includes XTF-ATF17PA Line Array Adapter with integrated hanging ring
• Compact folded height of just 5.64 ft for easy transport and storage
• Dynamic Overlap® 5-mast stacking truss system for increased stability
• Certified to CE and DGUV V17/18 standards for global safety compliance
• Patented DYNSYS® torque control system protects against overloading
• Wiredrive® grooved pulley reduces wear and ensures smooth lifting
• Bubble level and adjustable screw-jacks for precise base leveling

ProX XTF-FT6033 Description

The ProX XTF-FT6033 lifting tower is built for professional applications requiring safe and precise elevation of audio and visual systems. With a 728 lb maximum load capacity and a telescopic reach up to 19.52 ft, this system offers excellent load handling while maintaining portability with its compact, wheeled base. FANTEK® towers are manufactured from extruded aluminum (EN-AW 6082 T6) and TIG welded for strength and durability. The patented 5-mast design collapses to only 5.64 ft for easier loading and reduced footprint. The steel base features adjustable outriggers and leveling tools for reliable ground contact. The Pin Locking System ensures safe elevation by transferring load-bearing away from the wire rope during use, while the DYNSYS® safety system monitors torque to prevent dangerous overextension. The Wiredrive® pulley optimizes wire routing to extend component life and promote smoother operation. This model is CE and DGUV certified and trusted by professionals for concerts, theaters, trade fairs, and large venue installations. Designed in Valencia, Spain, and distributed exclusively in the U.S. by ProX Live Performance Gear, the XTF-FT6033 combines engineering precision with field-tested durability.

XTF-FT6033 Features

• Designed to fly line array systems, trusses, and LED screens
• Front-loading lifting eliminates strain during setup
• Patented 5-mast Dynamic Overlap® truss stacking system
• Manufactured with EN-AW 6082 T6 extruded aluminum
• Certified welding by trained professionals for maximum safety
• DYNSYS® torque-limiting winch safety mechanism
• Wiredrive® grooved pulley for optimal wire rope routing
• Pin Locking System secures each lift point
• Reinforced steel base with adjustable screw-jacks and level
• Includes XTF-ATF17PA Line Array Adapter with hanging ring

XTF-FT6033 Specifications

• Maximum Load Capacity: 330 kg (727.5 lbs)
• Maximum Height: 5.95 meters (19.52 ft)
• Minimum Folded Height: 1.72 meters (5.64 ft)
• Winch Capacity: 900 kg (1984.16 lbs)
• Steel Fork Length: 600 mm (23.62 inches)
• Certification: CE and DGUV V17/18 Compliant
• Exterior Dimensions: 66.00" H x 20.00" W x 22.00" L
• Product Weight: 330.00 lbs
• Shipping Dimensions: 68.00" H x 22.00" W x 24.00" L
• Shipping Weight: 344.00 lbs
• Suggested Shipping Method: LTL (2 units per 48"x40"x73" skid)
• UPC: 019372413516

What's In The Box

• ProX XTF-FT6033 FANTEK Lifting Tower
• XTF-ATF17PA Line Array Adapter with Hanging Ring
