ProX XT-SQPL328 | 3.28 FT 1M F34 Professional Ladder Truss Segment

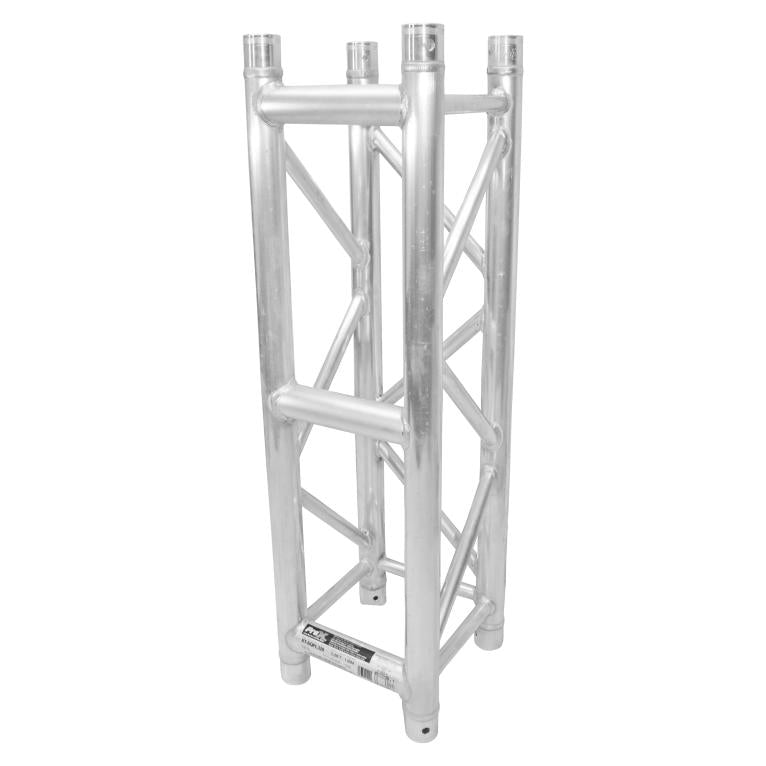

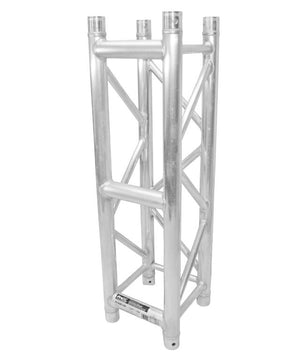

The ProX XT-SQPL328 is a 3.28 ft (1 meter) F34 conical truss section with a ladder brace on one side, designed for enhanced vertical load capacity. It features 3mm thick tube walls, providing strength and durability for various applications, including indoor and outdoor lighting rigs, live events, and more.

Key Features

3.28 ft (1 meter) F34 ladder truss segment with ladder brace on one side
3mm wall thickness for enhanced strength
Compatible with standard F34 truss systems
Designed for vertical installation to aid climbing and safety
Includes truss pins and clips
TÜV Rheinland® certified welding

Competitive Differences

Thicker tube walls for increased load capacity
Compatible with multiple truss brands using conical connectors

Full Description

The ProX XT-SQPL328 ladder truss segment is engineered for professional use, featuring a 3mm wall thickness and a ladder brace for safe climbing. The truss segment is ideal for use in various staging applications, ensuring robust support and compatibility with standard F34 truss systems. Its vertical installation design makes it perfect for truss roofing systems and indoor structures, providing easy and secure access.

Features

3.28 ft (1 meter) F34 ladder truss segment with ladder brace on one side
3mm wall thickness for enhanced strength
Compatible with standard F34 truss systems
Designed for vertical installation to aid climbing and safety
Includes truss pins and clips
TÜV Rheinland® certified welding

Specifications

Height: 11.42 in (290 mm)
Width: 11.42 in (290 mm)
Weight: 21 lb per 3.28 ft (9.5 kg per meter)
Main Tube: 2 in (50 mm)
Premium Tubing - Wall Thickness: 1/8 in (3 mm)
Braces: 0.75 in (20 mm)
Ladder Steps: 2 in (50 mm)
Ladder Step Spacing: 9.84 in (250 mm)
Material: EN-AWT6 6082 Certified Aluminum Welding
Exterior Dimensions: 11.50 x 11.50 x 39.36 in
Exterior Weight: 23.00 lbs
Shipping Dimensions: 13.00 x 13.00 x 40.00 in
Shipping Weight: 25.00 lbs

What's in the Box

ProX XT-SQPL328 Ladder Truss Segment
Truss pins and clips

Accessories

Additional truss segments
Truss corner pieces
