ProX XT-SQ984 | F34, 9.84ft Square Truss

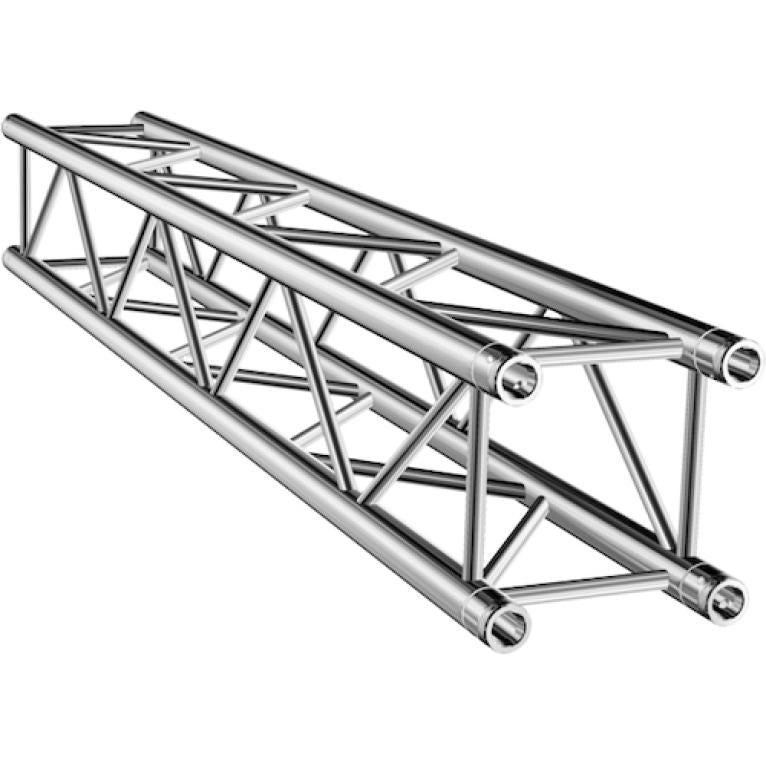

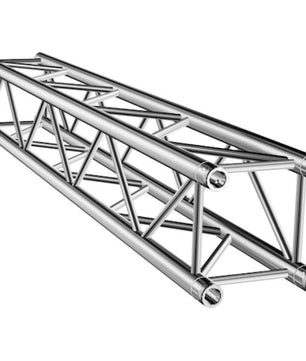

ProX XT-SQ984 9.84ft (3.00m) Square Truss Segment

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

Tolerance Free Standard Conical connector
Main tube wall thickness of .08in

XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm


Actual Height:  9.84 ft. (3.00 Meter) Square Truss Segment
Actual Weight: 44 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.


Features
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.


To Fit
Standard F34 Square Truss Configurations.


Dimensions
12.00"L x 12.00"W x 118.08"H
Weight: 42.00 lbs
