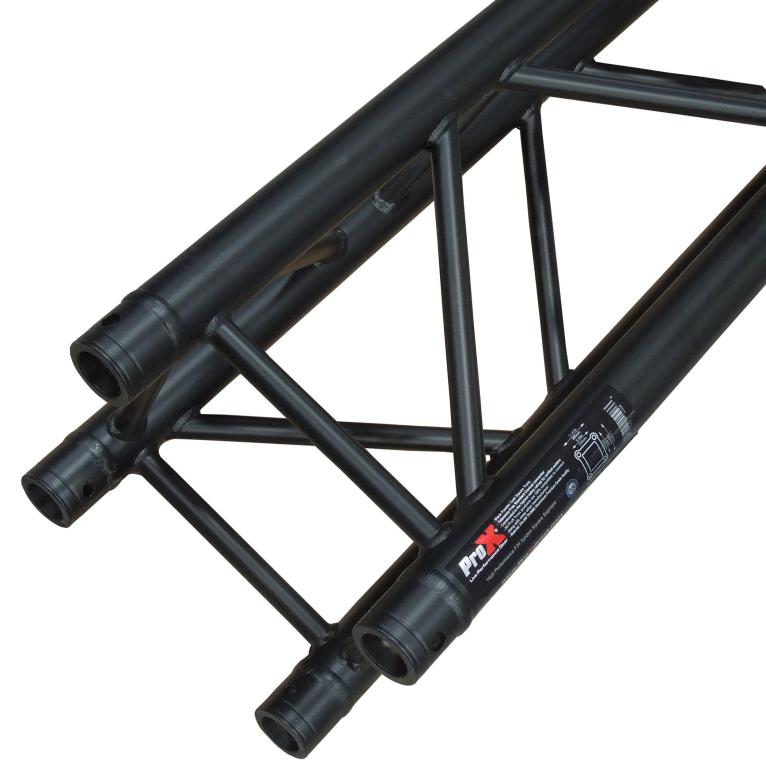

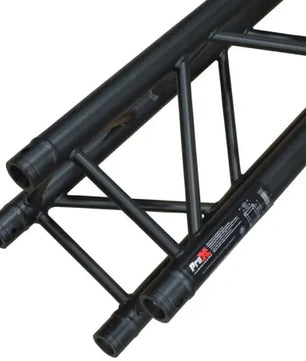

ProX XT-SQ656BLK | F34, 6.56ft Square Truss

Black Powder-Coated Truss Segment for Staging & Rigging

The ProX XT-SQ656BLK is a premium F34 square truss segment finished in durable black powder coating, designed for professional staging, lighting, and structural applications. Ideal for live outdoor events, nightclubs, or permanent installations, this truss offers both structural integrity and a refined aesthetic that blends seamlessly into modern production environments.

ProX XT-SQ656BLK Competitive Differences

• Black powder-coated finish: Adds durability and a clean, professional look that hides scratches and wear better than paint.
• Cross-brand compatibility: Mates with other F34 trusses using the industry-standard conical connector system.
• Eco-friendly powder coating: Reduces VOC emissions and environmental impact compared to traditional paints.
• Made with EN-AWT6 6082 aluminum: Strong, lightweight, and corrosion-resistant for long-term use indoors or out.
• TUV-certified welds: Ensures strength, safety, and consistency across all connections.

ProX XT-SQ656BLK Description

The ProX XT-SQ656BLK is part of the ProX XT Series — a trusted name in trussing systems for staging professionals. This square truss segment utilizes a 2″ (50mm) outer diameter main tube with a 0.08″ (2mm) wall thickness, supported by 0.75″ (20mm) braces. Built from high-strength EN-AWT6 6082 aluminum alloy and powder-coated in matte black, this truss combines rugged performance with an elegant finish suitable for high-end productions. The XT Series uses a tolerance-free conical connector system, allowing quick and secure integration with ProX or other compatible 290mm box trussing brands. This segment is designed for maximum versatility and can be integrated with corners, base plates, adapters, and other accessories to support lighting, audio equipment, banners, and more. ProX’s black truss lineup offers not just aesthetic appeal, but long-lasting protection against scratches, fading, corrosion, and abrasions. Plus, the environmentally friendly powder coating process produces virtually no VOCs, helping you reduce your carbon footprint without compromising performance.

XT-SQ656BLK Features

• F34 standard 2″ (50mm) square truss segment
• Black powder-coated finish for sleek appearance and durability
• 2mm (0.08″) main tube wall thickness
• 0.75″ (20mm) diagonal bracing
• Made from EN-AWT6 6082 aluminum
• Includes ProX heavy-duty conical connector system
• Precision manufactured in ProX-owned factory
• TUV-certified welding and build quality

XT-SQ656BLK Specifications

• Truss height: 11.42″ (290mm)
• Truss width: 11.42″ (290mm)
• Main tube diameter: 2″ (50mm)
• Wall thickness: 0.08″ (2mm)
• Bracing: 0.75″ (20mm)
• Material: EN-AWT6 6082 aluminum
• Finish: Black powder coat
• Weight: 21 lb per 3.28 ft (9.5 kg per meter)
• Compatibility: ProX XT Series and most F34 standard 290mm box truss systems
