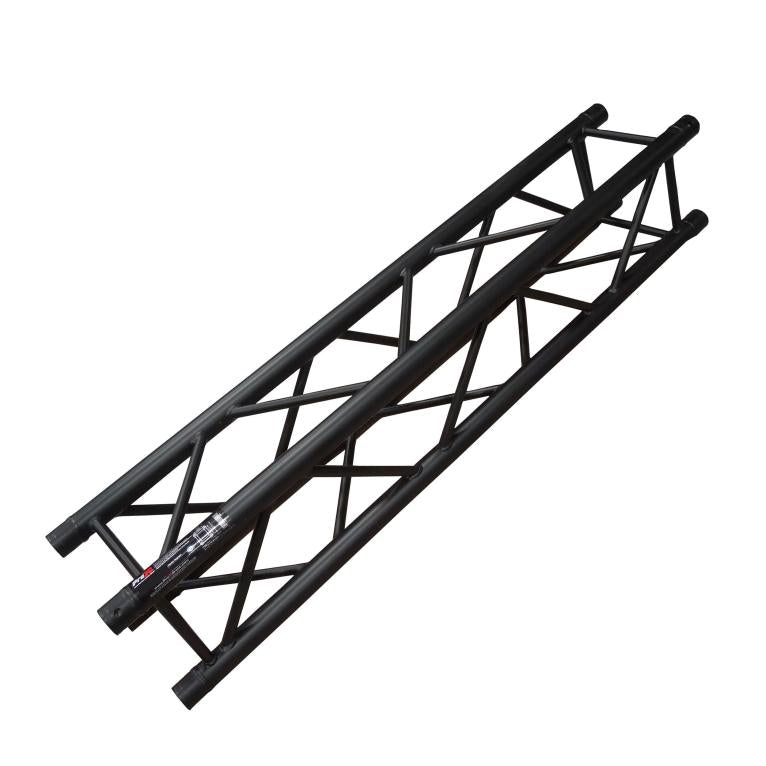

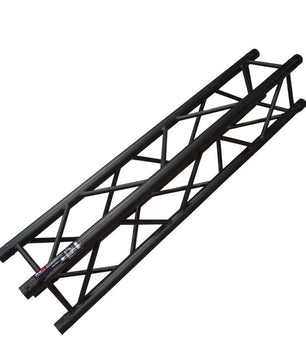

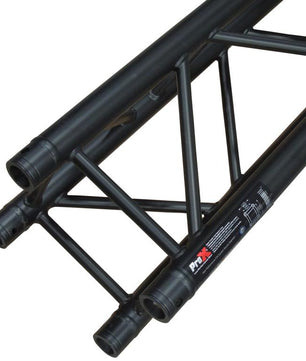

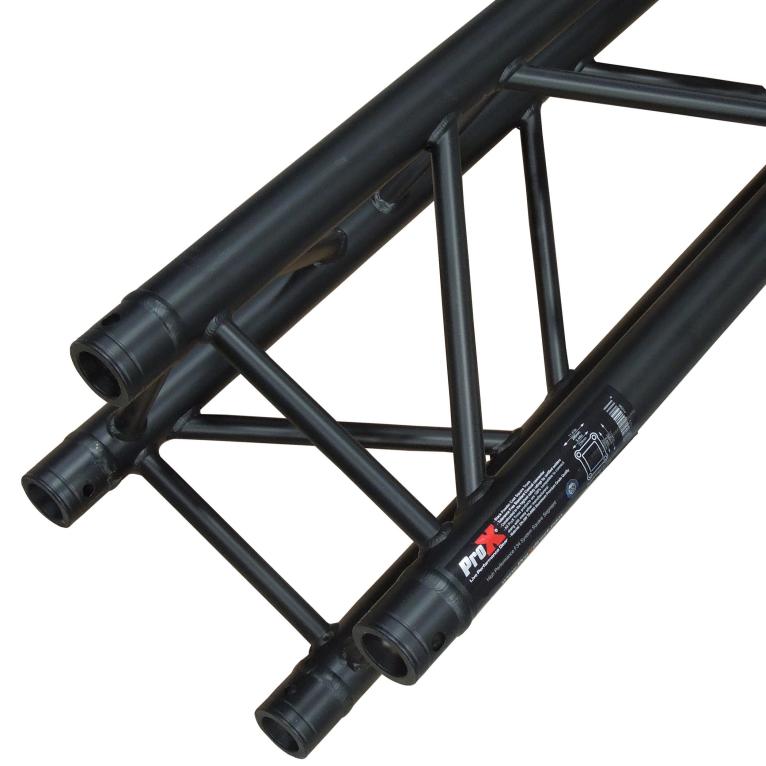

ProX XT-SQ328BLK | F34, 3.28ft Square Truss (Black)

The ProX XT-SQ328BLK | 2mm Wall Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations.  ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs --  while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors, and accessories that add stability while expanding on limitless design configurations.

Powder coating provides a stronger finish that is more resistant to damage than paint!  Using a black powder coat truss is an effective way to add character to your truss designs. Powder-coated black aluminum ProX truss products provide an extra element that will help to personalize your truss display.  Powder-coated finishes provide durability that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

ProX Goes Green - Unlike many liquid paints, powder coatings offer a smaller carbon footprint which reduces the adverse effects on the environment.  Powder coatings contain no solvents and release little or no amount of Volatile Organic Compounds (VOC) into the atmosphere!

Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

Tolerance Free Conical Connector System
Main tube wall thickness of .08in (2mm)
ProX Heavy-Duty Connector Sockets
XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm


Actual Height:  3.28 ft (1 Meter) Square Truss Segment
Actual Weight: 19 lbs
Includes connecting hardware set.




Features
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
2mm Wall Thickness
TUV Certified Aluminium Welding
Black Powder Coated
TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers' F34 trussing products.


Exterior Dimensions & Weight
39.36"H x 11.42"W x 11.42"L - Weight: 19.00 lbs

Shipping Dimensions & Weight
Box 1 of 1: 40.00"H x 12.00"W x 12.00"L - Shipping Weight: 20.00 lbs

Suggested Shipping Method: Parcel

UPC
019372410973
