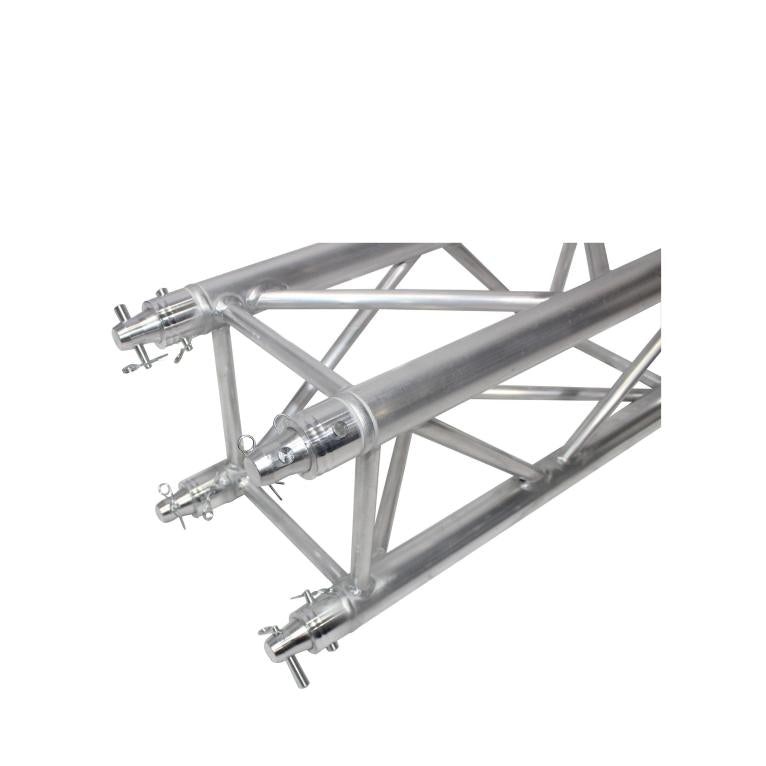

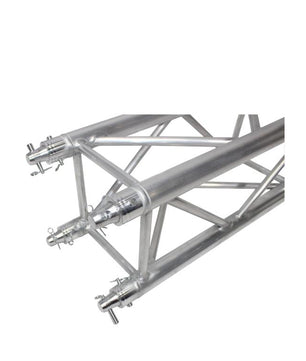

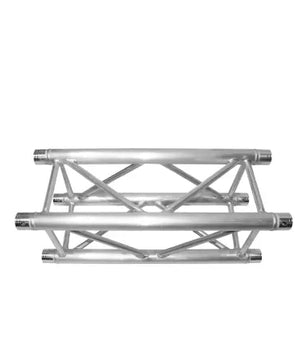

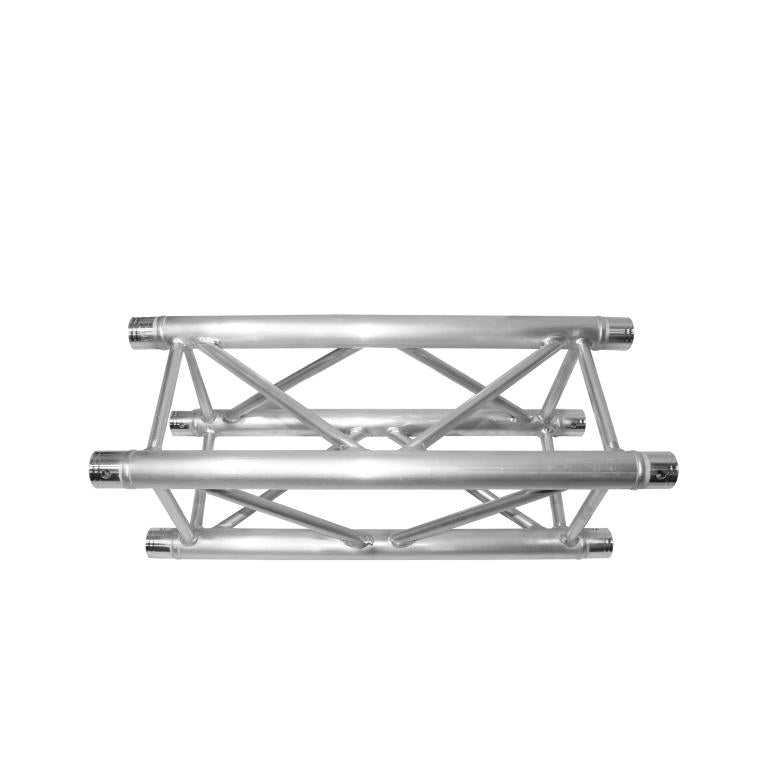

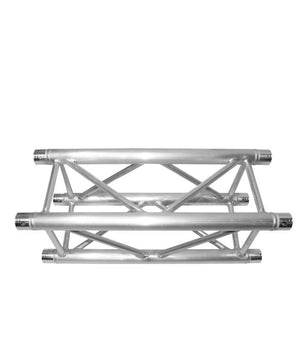

ProX XT-SQ246 | 2.46 Ft - .75 M Square Truss Segment

ProX XT-SQ246 | 2.46 Ft - .75 M Square Truss Segment

$269.99

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

The ProX XT-SQ246 Truss is one of the most trusted staging support systems in the live entertainment industry and is engineered and manufactured to the highest standards of safety and performance.  We manufacture with EN-AWT6 6082  Aluminum for safety and strength.  Our XT series F34 square truss utilizes a popular conical connector system, which easily mates with most other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs.  Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.

ProX XT-SQ series trussing is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX offers a wide variety of corners, base plates, connectors, and accessories that allow limitless design configurations to suit your needs.  Always consult an engineer for complex designs!

ProX XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb/9,5kg per 3.28 ft / 1 meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm
IMPORTANT:  Always know your load weight for your equipment: XT-SQ Truss Loading Chart

Features
Manufactured to Exacting Specifications in our Own Factory!
Actual Height:  2.46 ft (0.75 Meter) Square Truss Segment
Actual Weight: 15 Lbs.
Includes One Connecting Hardware Set
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding
TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers of F34 trussing products with conical connectors.

Exterior Dimensions & Weight
11.42"L x 11.42"W x 29.53"H - Weight: 15.00 lbs

Shipping Dimensions & Weight
Box 1 of 1: 12.50"L x 12.50"W x 31.00"H - Shipping Weight: 16.00 lbs

Suggested Shipping Method: Parcel

UPC
019372408178
