ProX XT-SQ164-2W90 | F34, 90 Degree Square Truss Corner

2-Way 90-Degree Truss Corner for Stage & Lighting Rigs

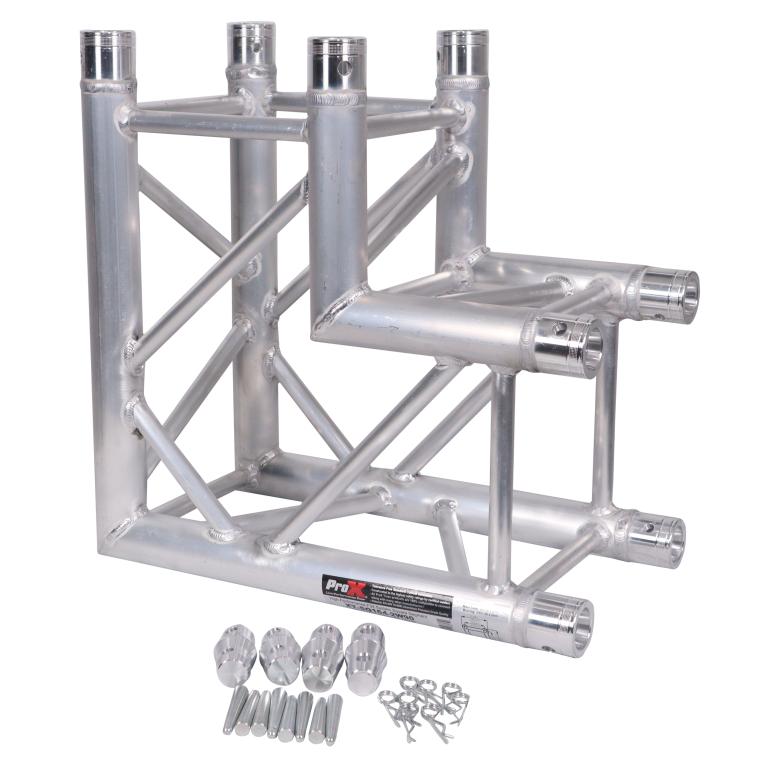

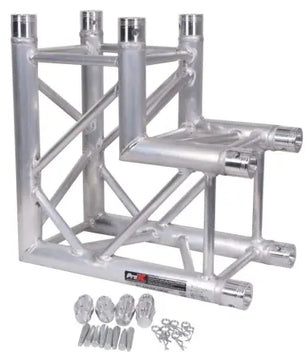

The ProX XT-SQ1642W90 is a rugged and reliable 2-way 90° corner truss segment designed for ProX XT Series square trussing systems. At 1.64 feet (0.5 meters) in length, this corner piece is essential for creating strong rectangular and square truss frames, making it ideal for DJs, touring rigs, live events, or permanent installations.

ProX XT-SQ1642W90 Competitive Differences

• Precision-engineered: Built to exacting tolerances with industry-standard conical connectors for a secure fit.
• Heavy-duty yet lightweight: Made from durable aluminum with TUV-certified welds for strength and safety.
• Cross-brand compatible: Works with most other conical-coupled 290mm box truss systems.
• Versatile use: Ideal for mobile setups, installations, or temporary event structures.
• Includes full hardware set: Comes with conical couplings, tapered shear pins, and clips for quick assembly.

ProX XT-SQ1642W90 Description

The ProX XT-SQ1642W90 2-way 90-degree corner truss is an essential component for building robust stage and lighting structures. Crafted with a main tube diameter of 2 inches (50mm) and a wall thickness of 0.08 inches (2mm), this piece ensures structural integrity without adding unnecessary weight. It features a tolerance-free standard conical connector system, allowing seamless integration with other ProX XT Series components and compatible 290mm box truss from other manufacturers. The unit measures 1.64 feet (0.5 meters) in length, providing just the right angle for constructing 90-degree turns in your truss framework. This makes it a go-to solution for creating square frames, stage grids, and overhead lighting rigs. Designed and manufactured by ProX, which owns its factory, this is not a generic import—it meets professional standards, including TUV-certified welding and finish processes for safety and durability.

XT-SQ1642W90 Features

• 2-way 90-degree corner truss (1.64 ft / 0.5 m)
• Standard conical connector for secure locking
• Constructed from high-grade aluminum
• 2″ (50mm) main tube diameter with 0.08″ (2mm) wall thickness
• 0.75″ (20mm) bracing tubes
• Includes tapered shear pins, clips, and 4 conical couplers
• Factory-direct manufacturing ensures quality control
• TUV-certified welding and processes

XT-SQ1642W90 Specifications

• Truss height: 11.42″ (290mm)
• Truss width: 11.42″ (290mm)
• Length: 1.64 ft (0.5 m)
• Main tube: 2″ (50mm) diameter
• Wall thickness: 0.08″ (2mm)
• Braces: 0.75″ (20mm)
• Weight: Approx. 10.5 lb (4.8 kg) per 1.64 ft section
• Compatibility: ProX XT Series and most 290mm conical truss systems

What's In The Box

• ProX XT-SQ1642W90 2-way 90° truss corner
• 4x Conical couplers
• Tapered shear pins and R-clips
