ProX XT-MCH1TX2-30FT | Pair of 1-Ton Manual Chain Hoists w/ 30ft Chain for Truss & Line Arrays

Manual Chain Hoist Pair for Stage Truss & Line Array Lifting

The ProX XT-MCH1TX2-30FT is a set of two professional-grade 1-ton manual chain hoists with 30-foot (9 m) chains, designed for safely lifting stage trussing, line array speakers, and other heavy equipment in live production environments. Built for reliability, durability, and smooth operation, these hoists are ideal for concert rigs, mobile staging, and industrial setups where electric power is unavailable or not practical.

ProX XT-MCH1TX2-30FT Competitive Differences

• Includes two 1-ton capacity manual hoists with hardened 30 ft (9 m) galvanized chains
• Mechanical load brake for precise control and safety during lifting
• Meets ANSI/ASME standards with 4:1 safety factor
• Rugged forged steel construction with Grade 80 load chain
• 360° swivel hooks with safety latches on both ends
• Lightweight, portable design ideal for touring and on-site setups
• Includes chain bags and heavy-duty protective case for transport and storage
• Operates manually — no electricity required

ProX XT-MCH1TX2-30FT Description

Engineered for professional rigging applications, the ProX XT-MCH1TX2-30FT manual chain hoist set offers a robust and portable lifting solution for mobile stages, lighting grids, and audio line arrays. Each hoist in this pair is rated to safely lift up to 2,000 lbs (1 ton), making it perfect for demanding setups that require heavy-duty support.

The hoists feature forged drop-steel swivel hooks with safety latches, allowing secure connections and flexible rigging angles. A mechanical brake system provides reliable load control, while the compact housing ensures ease of use in tight spaces. With a hardened galvanized Grade 80 lifting chain, the system ensures smooth operation and extended life under frequent use.

This dual set includes chain bags to manage the full 30 ft chain length and comes packed in a rugged heavy-duty case, simplifying transportation and protecting your gear. Whether you're building a stage roof system, lifting speaker arrays, or suspending lighting truss structures, this pair of chain hoists offers the strength, safety, and control needed for professional results.

XT-MCH1TX2-30FT Features

• Set of two manual chain hoists (1-ton capacity each)
• Durable forged steel swivel hooks with 360° rotation and safety latches
• Compact design allows low headroom clearance
• Mechanical load brake for controlled and safe lifting
• Grade 80 hardened steel chain – 30 ft (9 m) length per hoist
• Galvanized finish for corrosion resistance
• Chain bags included to manage excess chain
• No power required — fully manual operation
• Meets ANSI/ASME standards
• Professional-grade build for stage and industrial environments

XT-MCH1TX2-30FT Specifications

• Lifting Capacity: 1 Ton (2,000 lbs / 1,000 kg)
• Chain Length: 30 ft (9 m)
• Pulling Force: 305 N
• Lifting Chain Diameter: 0.24" x 0.71" (6 x 18 mm)
• Pulling Chain Diameter: 0.20" x 0.98" (5 x 25 mm)
• Chain Grade: Grade 80 galvanized hardened steel
• Swivel Hooks: Forged steel, 360° rotation, with safety latches
• Safety Factor: 4:1 (Meets ANSI/ASME standards)
• Shipping Dimensions: 22.00" W x 18.00" L x 12.00" H
• Shipping Weight: 110 lbs
• UPC: 019372406945

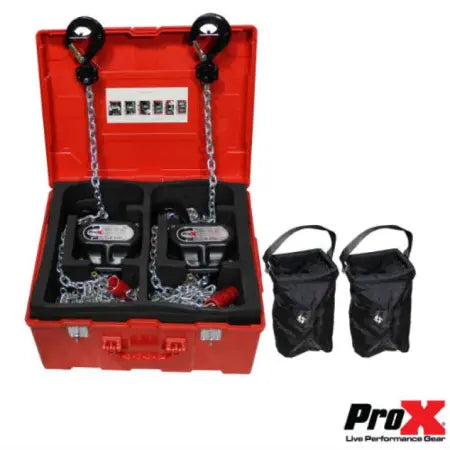

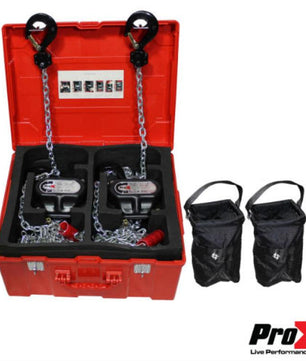

What's In The Box

• 2 x 1-Ton Manual Chain Hoists (XT-MCH1T)
• 2 x 30 ft (9 m) Hardened Steel Chains
• 2 x Chain Bags
• 1 x Heavy-Duty Transport Case
