ProX XT-JB6W-2W | F34, 6-Way Junction Box

ProX XT-JB6W-2W | F34, 6-Way Junction Box

$299.99

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

XT-JB6W-2W
6 Way Square Truss Junction Block - Includes 2 Way 8 Half Conical Couplers

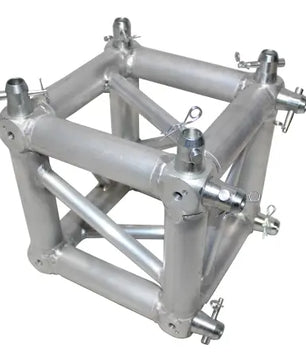

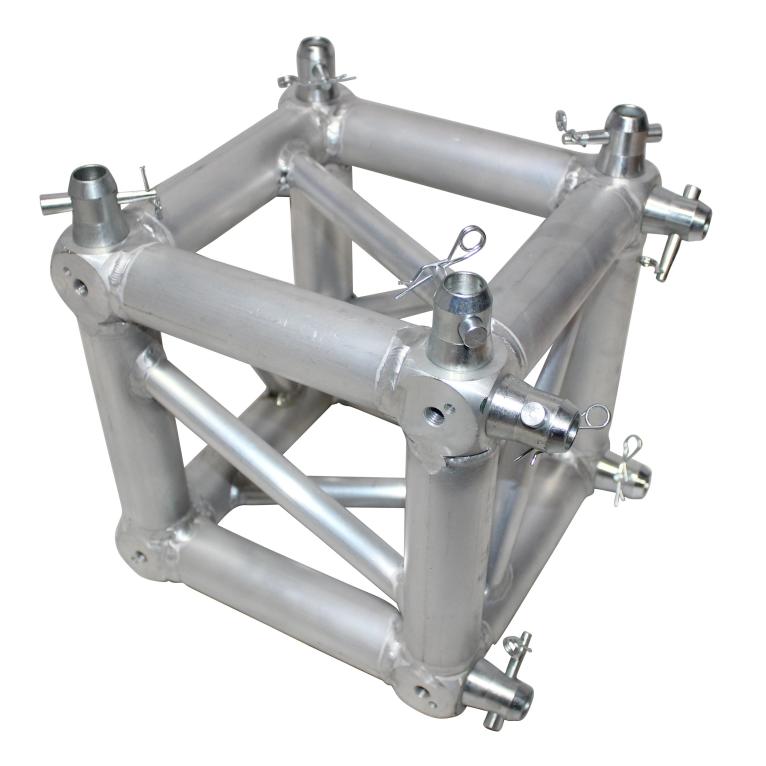

ProX XT-JB6W-2W 6 Way Square Truss Junction Block - Includes 2 Way 8 Half Conical Couplers

Description
The ProX XT-JB6W-2W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components.  It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 2mm thick tube walls, this truss junction block is strong and can be used for many applications.  It is built to the highest standards of safety and performance.

8 Half Conical couplers included, additional conical couplers can be added for more utility. (Sold Separately XT-CA-103)

At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

Tolerance Free Standard Conical connector
Main tube wall thickness of .08in
XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm

Includes connecting hardware set.

ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing.

Features
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

To Fit
Standard F34 Square Truss Configurations.

Dimensions
11.45"L x 11.45"W x 11.45"H
Weight: 17.00 lbs

Shipping Dimensions
12.50"L x 12.50"D x 12.00"H
Shipping Weight: 17.50 lbs

Suggested Shipping Method: Parcel

UPC
741459147365
