ProX XT-HINGE | F34 Conical Tube Ground Support

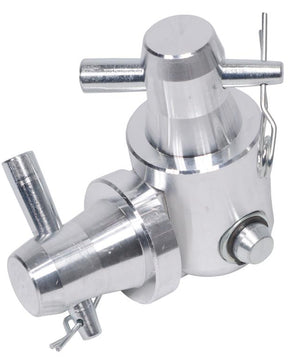

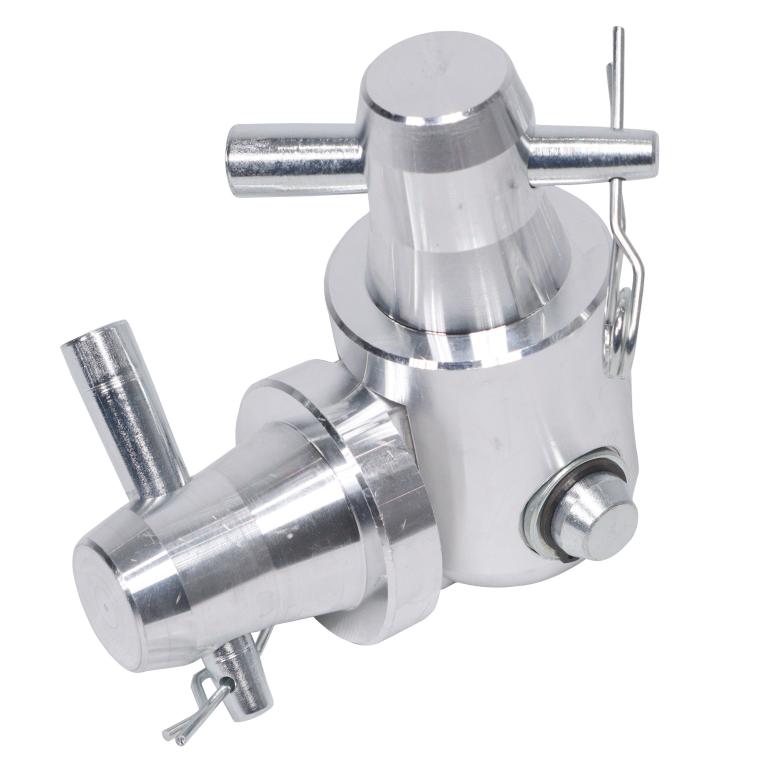

The ProX XT-HINGE Single Male-to-Male Tube Hinge can be used for a Ground Support Truss roof system. This hinge fits standard F31 - F32 - F34 Conical 2” Truss. The hinge sets, mainly used as hinges in towers, are also used to make various shapes with standard lengths. Mix and combine different pipes and hinges to create unique shapes, angles, and displays. Made from high-grade 6082-T6 aluminum and securely fastened with locking pins and cotter keys, the Single Tube Hinge Block can carry the weight of most stage and lighting while giving you a one of a kind display.

ProX specializes in high-quality, general-purpose aluminum lighting and stage trussing designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. Our products are built using 6082-T6 Aluminum Alloy compositions. This lightweight, corrosion-resistant aluminum has a very high tensile strength, giving you the support and stability you need. The ProX Truss Conical Coupling System allows for genderless trusses, providing a more precise line up of chords and fastening points, while the conical shape of the couplers helps to maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly quick and easy with very few tools needed to complete set up.


Features


Each XT-Hinge includes:

(1) Male to Male Hinge adjustable angel joint
(2) Locking Pins
(2) Pin Clips
Built to exacting specifications
Compatible with most Conical trussing



Shipping Dimensions & Weight
Box 1 of 1: 2.00"H x 5.00"W x 5.00"L - Shipping Weight: 2.50 lbs

Suggested Shipping Method: Parcel

UPC
019372410768
