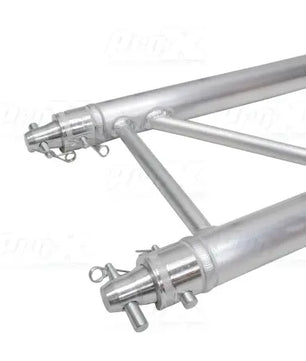

ProX XT-F32-984 | 9.84 Ft (3.00m) F32 I-Beam Truss Segment

ProX XT-F32-984 | 9.84 Ft (3.00m) F32 I-Beam Truss Segment

$299.99

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

The ProX XT-F32-984 truss system in 2-point design is particularly well suited for trade shows and shop construction, as well as event technology and as a support system for lighting fixtures. Due to its compact design combined with high load capacity, this system is ideally suited from a simple exhibition stand, up to a complex rig construction project.

ProX Truss has the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.
Always know your load weight for your equipment: IMPORTANT - F32 Truss Loading Chart.

Tolerance Free Standard Conical connector
Main tube wall thickness of .08in (2mm)
F32 Truss Dimensions

XT-F32 SERIES DIMENSIONS:

Width: 11.42in / 290mm
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm
Actual Height:  9.84 ft. (3 Meter) F32 2 Tube Truss Segment

ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing.

Features
Download our Truss Safety Guide
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding
Includes 1 Set Connecting Hardware
   TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

To Fit
F32 Conical Standard Trussing

Weight: 17.00 lbs

Shipping Dimensions
119.00"L x 12.00"D x 3.00"H
Shipping Weight: 19.00 lbs

Suggested Shipping Method: LTL

UPC
019372410393
