ProX XT-CRANK22FT-400 | 22ft Crank Tripod, 440lb Capacity

Heavy Duty 22 Ft. High Truss Crank Up Lighting Stand 400 Lbs. Capacity

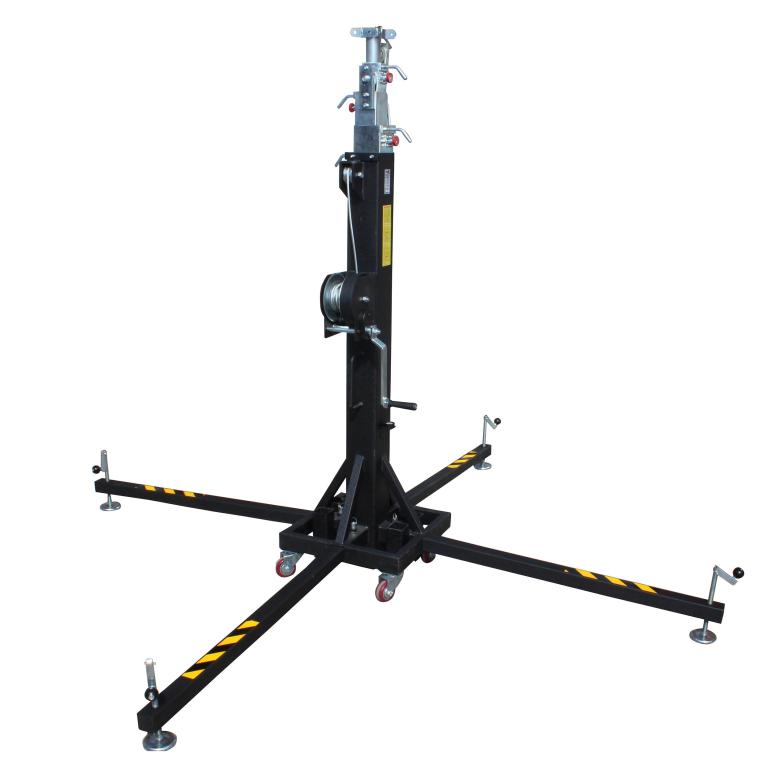

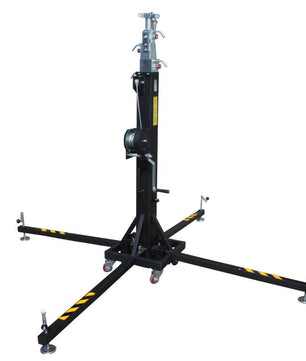

The ProX XT-Crank22FT-400 is a heavy-duty crank support system that gets the job done with minimal effort. This crank stand system can support up to a 400 lb vertical load and reach a maximum height of 22'. With a base diameter of 7ft, this stand is very stable and safe.

The ProX Truss Heavy Duty Crank Stands are an integral part of the Truss SQ System for temporarily mounting lights for small to medium-sized DJ lighting at any event. It has Integrated casters, independently adjustable leg braces, and nylon guided leg sliders, which can all be used in conjunction with another same-rated stand, & trusses and T-Adapters (sold separately). Each is made with Heavy Duty All-metal components; Sturdy, steel/aluminum construction. Eliminate direct lifting and lowering of heavy loads with the ProX Truss Heavy Duty Crank Stand.

It folds easily to a portable size for transport. It's equipped with a smooth, heavy-duty cranking mechanism.  Perfect for a live band and mobile DJ applications, eliminate direct lifting and lowering of heavy loads.

Features
22 Ft Lighting Stand
Max Vert Load: 400 lbs.
Base Diameter: 83.85" / 7FT
Weight: 160 lbs.
Min Height:  86"
Base Closed: 18.25" x 18.25"
Fits: XT-TADAPTER400


SAFETY INSTRUCTIONS
To avoid problems a competent person should inspect all rigging hardware, stands and equipment before each use and periodically do a major inspection for signs of wear, abuse, and general adequacy, as well as perform any manufacturer recommended preventive maintenance on schedule.  Observe all warnings and usage instructions in the full manual.  Use at your own risk.

Basic Usage:
1.    Ensure that the stand is positioned on a hard stable surface, in a suitable location, on firm ground and clear of overhead obstacles.
2.    Stabilize legs before lifting the tower or any load.
3.    When outdoors, secure the tower with braces or cables, in the case of wind.
4.    Check the cable, it should not show damaged or flattened areas nor broken threads.
Using the Winch:
1.    For Lifting the tower, turn the winch handle clockwise.
2.    For lowering the tower, turn the winch handle counter-clockwise.
Safety Notes:
1.    Loading on truss and stands should comply with rated weights.
2.    Lock all the safety mechanisms (safety pins, knobs)
3.    Loads must be centered & balanced on each lifting unit.
4.    Safety chains must be installed on each item attached to the unit.
5.    Leave a safety perimeter with a radius 5ft greater than the maximum height of the stands during lifting and lowering of loads.
6.    During transport, close all the sections and lock the lifting carriage.
7.    Do not attempt to move the stand when loaded or in an extended position.
Service Notes:
1.    Servicing and repairs must be made by qualified persons.
2.    Cable, pulleys, and telescopic masts must be inspected before each use. Any damaged cable must be replaced immediately.
3.    Annual inspection by an authorized technician is suggested.




To Fit
Standard T-Adapters (XT-TADAPTER-400)- Can mount Truss, lighting, and more

Will also fit 5Ft T-Bar (XT-LSTBAR-5FT)


Dimensions
16.00"L x 15.00"W x 73.00"H
Weight: 160.00 lbs

Shipping Dimensions
20.00"L x 20.00"D x 77.00"H
Shipping Weight: 175.00 lbs

Suggested Shipping Method: LTL

UPC
022099558750
