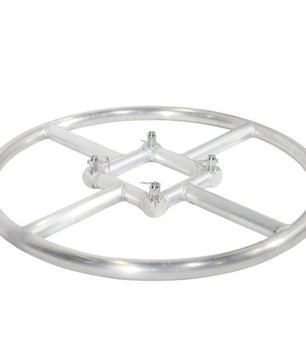

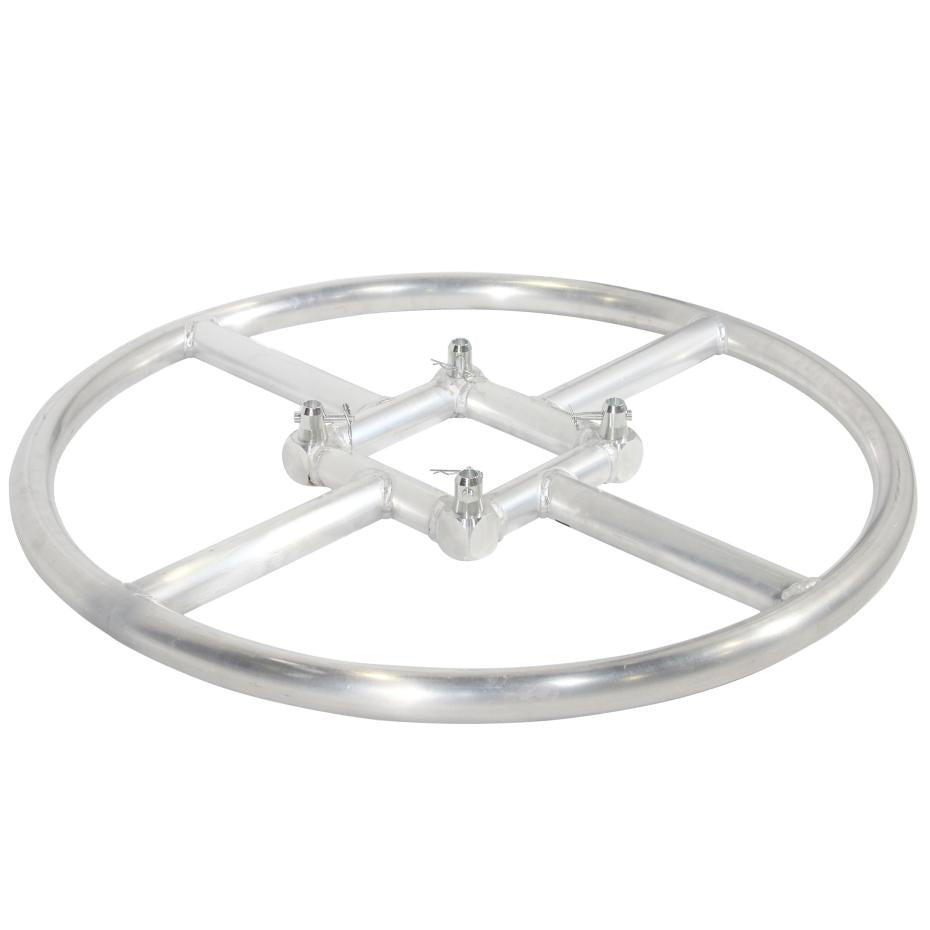

3.28 Ft1 Meter Circle Truss Design Wheel Round Base or Top Mount

XT-BPC328 MK2

The ProX XT-BPC328 MK2 3.28ft Circle Truss is excellent for a variety of lighting and accessory needs of a mobile DJ, stage set, sound arrangements and more!  This second-generation circle component is based on the design of our XT-F32JBOX Junction as a center section.  The circle component can be used as a base or truss topper.  Create unique lighting designs by mounting this circle on the top of a truss segment or totem and hanging lights or other gear in a 360-degree dispersion.   This, used as a base, makes a great bottom for truss totems!

Tolerance Free Standard Conical connector
Main tube wall thickness of .08in
XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm

Actual Diameter:  3.28 ft. (1.00 Meter) Square Truss Segment
Tubing: 2"
Includes connecting hardware set.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.

Features
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding
Note: Shipping weight of 38lbs is a Dimension Weight (Oversized) by UPS/FedEx

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

Shipping Dimensions
41.00"L x 40.00"D x 3.00"H
Shipping Weight: 38.00 lbs

Suggested Shipping Method: Parcel

UPC
019372407867
