ProX XT-BP12AH | F34, 12in Top Plate

$99.99

Order within [hour] to get by [date_end]

Quantity

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

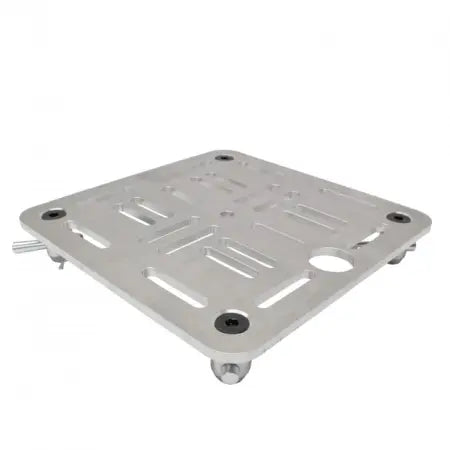

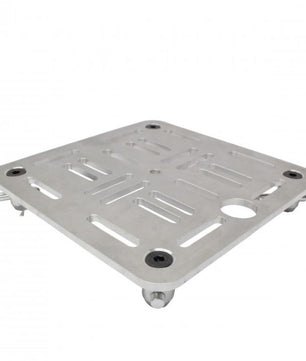

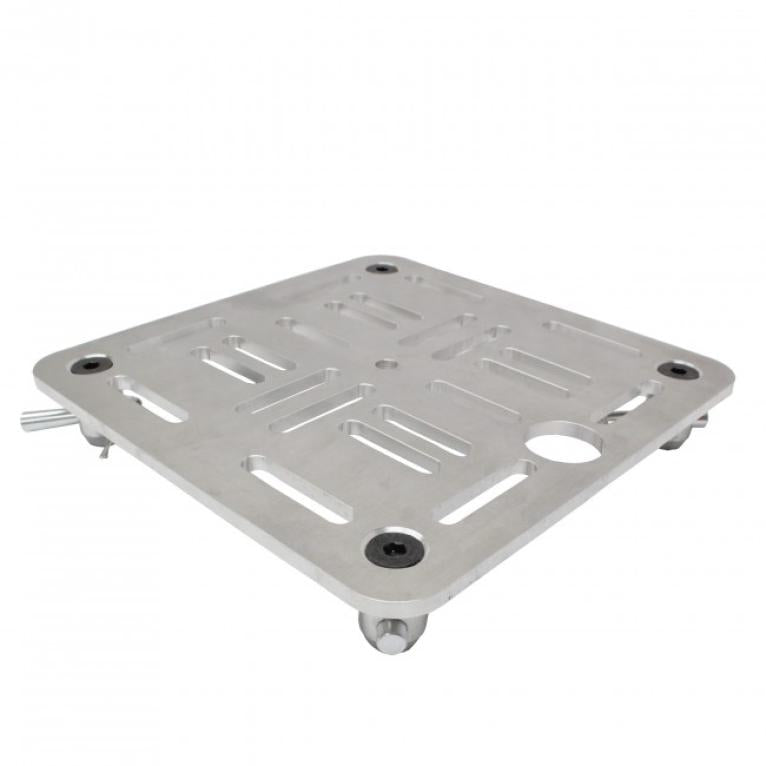

ProX XT-BP12AH 12" X 12" F34 Aluminum Top Plate W-Twist Locks for Totems

Description
The ProX XT-BP12AH F34 12" X 12" Aluminum Top Plate for Totems W/Twist Locks is the perfect addition to your show totems and for truss construction when you need to mount lights or other equipment at the top or end of a run of a truss.  The ProX XT-BP12AH is an Exclusive Product from ProX (Design Copyright © 2018) and will make your setup and teardowns much easier and safer.

Included with each plate is a set of 4 twist lock connectors that can be installed on your lights or equipment for quick attachment and detachment to the mounting plate without tools.   The plate comes with a wide variety of slots for mounting to fit virtually any light that you want to mount, it also has a center hole to attach a speaker spud and a handy finger hold for easy carrying.   It comes with all the necessary hardware to mount to the trussing.

ProX Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations.  ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs --  while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.

Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

Tolerance Free Standard Conical connectors
XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm

Includes connecting hardware set.

Features
Manufactured in our Own Factory!
ProX Exclusive Product  (Design Copyright © 2018)
Includes Truss Connecting Hardware
Includes 4 Twist Lock Connectors
Exclusive Product from ProX (Design Copyright © 2018)
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

To Fit
F34 Trussing for Mounting of Moving Heads and other equipment to totems or top/ends, Fits most manufacturers F34 using conical connectors.

Dimensions
12.00"L x 12.00"W x 2.00"H
Weight: 6.00 lbs

Shipping Dimensions
13.00"L x 12.50"D x 3.00"H
Shipping Weight: 7.00 lbs
