ProX XT-BP12A | 12in Top Plate for F34/F32/F31 Truss | 6mm Aluminum with Slotted Holes

ProX XT-BP12A | 12in Top Plate for F34/F32/F31 Truss | 6mm Aluminum with Slotted Holes

$60.99

Order within [hour] to get by [date_end]

Quantity

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Truss Top Plate

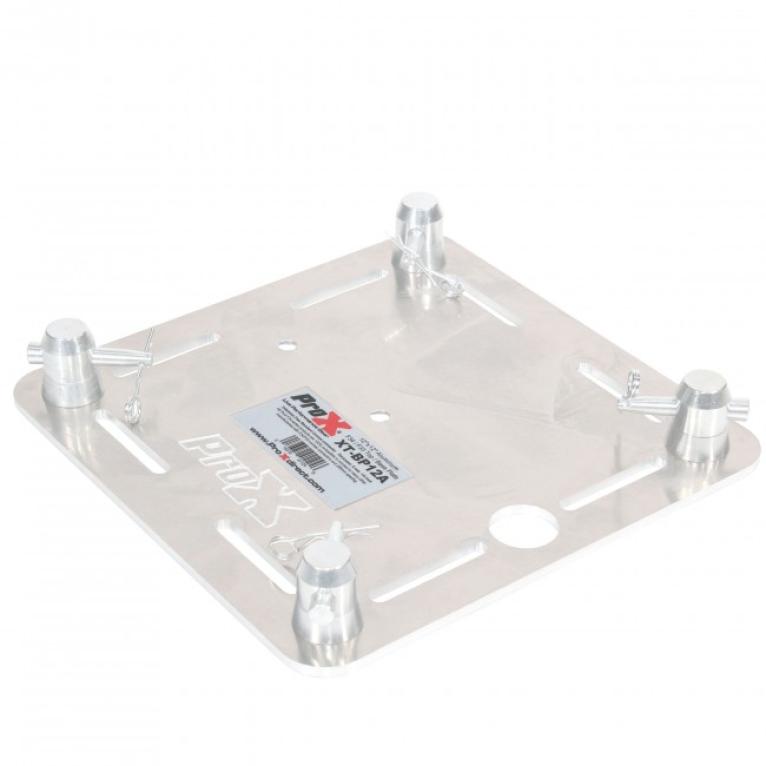

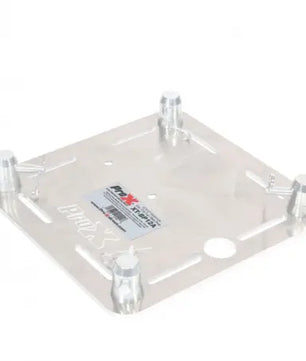

The ProX XT-BP12A is a 12-inch aluminum top plate designed for use with F34, F32, and F31 conical square truss systems. Built from durable 6mm EN-AWT6 6082 aluminum, this plate offers a secure and professional-grade mounting surface, making it ideal for lighting, speakers, and structure termination.

ProX XT-BP12A Competitive Differences

Compatible with multiple truss systems: F34, F32, and F31
Includes slotted holes and cable routing cutout

ProX XT-BP12A Description

The ProX XT-BP12A is engineered for strength, versatility, and compatibility. Whether you're capping off a truss column, adding a lighting fixture, or building a custom structure, this 12" x 12" top plate provides a stable and secure connection. It is manufactured using precision CNC technology and forged from EN-AWT6 6082 aluminum—a material known for its high strength and corrosion resistance. Designed with slotted mounting holes and a central cable-routing hole, the plate supports flexible configurations and clean cabling. Rounded edges help prevent cable damage and make handling safer during setup and teardown. The XT-BP12A is compatible with most major truss brands using conical connectors, and includes all necessary connector hardware. It can also be used with the optional XT-SPST speaker stud (sold separately) for speaker pole mounting applications.

Model Features

Fits F34, F32, and F31 conical square truss
6mm thick EN-AWT6 6082 aluminum plate
CNC-cut slotted holes for flexible mounting
Large center cutout for cable routing
Includes truss connection hardware
Smooth, rounded edges for safety
Compatible with optional speaker stud (XT-SPST)

Model Specifications

Compatible Truss: F34, F32, F31 Conical Square Truss
Dimensions: 12 x 12 in (305 x 305 mm)
Plate Thickness: 6mm
Material: EN-AWT6 6082 Aluminum
Unit Weight: 4 lbs
Shipping Dimensions: 13 x 13 x 2 in
Shipping Weight: 5 lbs
UPC: 019372411246
