ProX XT-BOOKHINGE | Adjustable 0° to 180° Book-Hinge for F34 Conical Truss

ProX XT-BOOKHINGE | Adjustable 0° to 180° Book-Hinge for F34 Conical Truss

$299.99

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

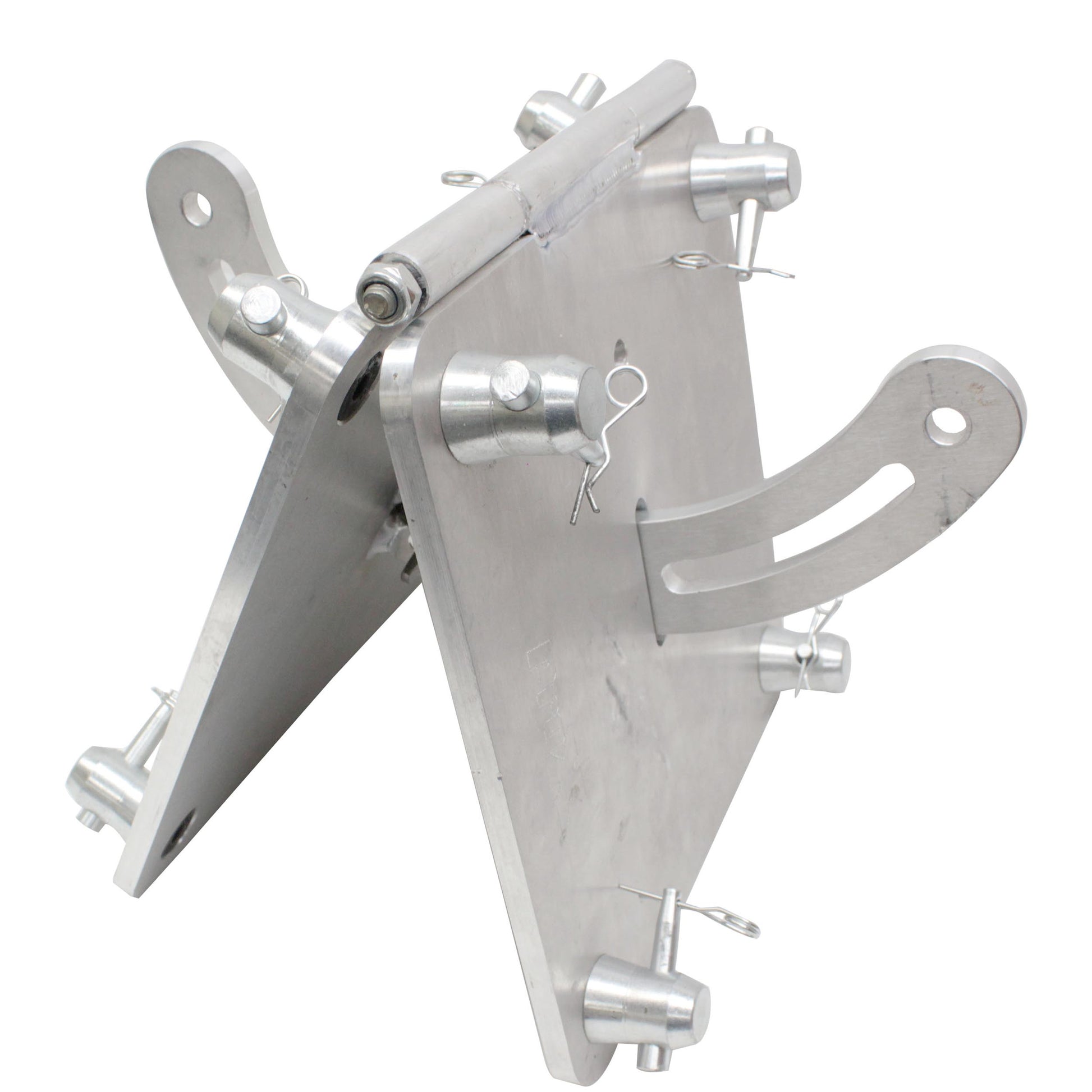

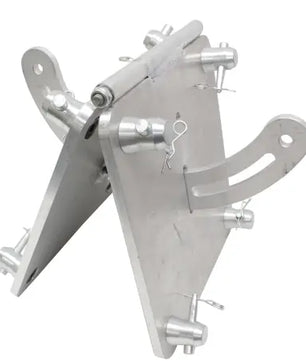

Adjustable Book-Hinge for Custom Truss Configurations

The ProX XT-BOOKHINGE Adjustable Book-Hinge Truss Connection offers a versatile truss solution for creating custom angles between truss sections. Designed for mobile DJs, outdoor performances, bands, and permanent installations, this book-hinge adjusts from 0° to 180°, allowing for unique and adaptable truss configurations. With its lightweight yet durable aluminum construction, it’s ideal for easy transport and setup while maintaining the highest standards of safety and performance.

ProX XT-BOOKHINGE Competitive Differences

Adjustable hinge from 0° to 180° for custom truss designs
Compatible with ProX 12" SQ F34 Conical trussing
High-grade, lightweight aluminum for easy handling and setup
Includes conical connectors, spigots, and cotter pins for secure assembly
Works with many other brands of trussing using standard conical connectors
EN-AWT6 6061 Aluminum material with TUV-certified welding for safety and reliability

ProX XT-BOOKHINGE Description

The ProX XT-BOOKHINGE is a highly flexible trussing accessory that enables custom truss angles not possible with standard corners. The adjustable arm locks the desired angle, allowing for creative and secure truss construction projects. Made from premium EN-AWT6 6061 aluminum, this hinge ensures durability while remaining lightweight, making it perfect for mobile setups. With TUV-certified welding, you can trust its safety and long-term reliability. Compatible with standard conical connector systems, the XT-BOOKHINGE integrates seamlessly with other truss brands, providing limitless configuration possibilities.

XT-BOOKHINGE Features

Adjustable angle range: 0° to 180°
Material: EN-AWT6 6061 Aluminum
Includes conical connectors, spigots, and cotter pins (8 sets)
Lightweight and durable design
TUV-certified aluminum welding for safety

XT-BOOKHINGE Specifications

Height: 11.42 in (290 mm)
Width: 11.42 in (290 mm)
Weight: 19 lbs (8.6 kg)
Main Tube Diameter: 2 in (50 mm)
Main Tube Wall Thickness: 0.08 in (2 mm)
Braces: 0.75 in (20 mm)
Shipping Dimensions: 14 in x 14 in x 13 in
Shipping Weight: 20 lbs (9.1 kg)
UPC: 019372412649
