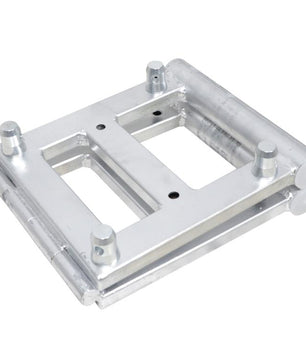

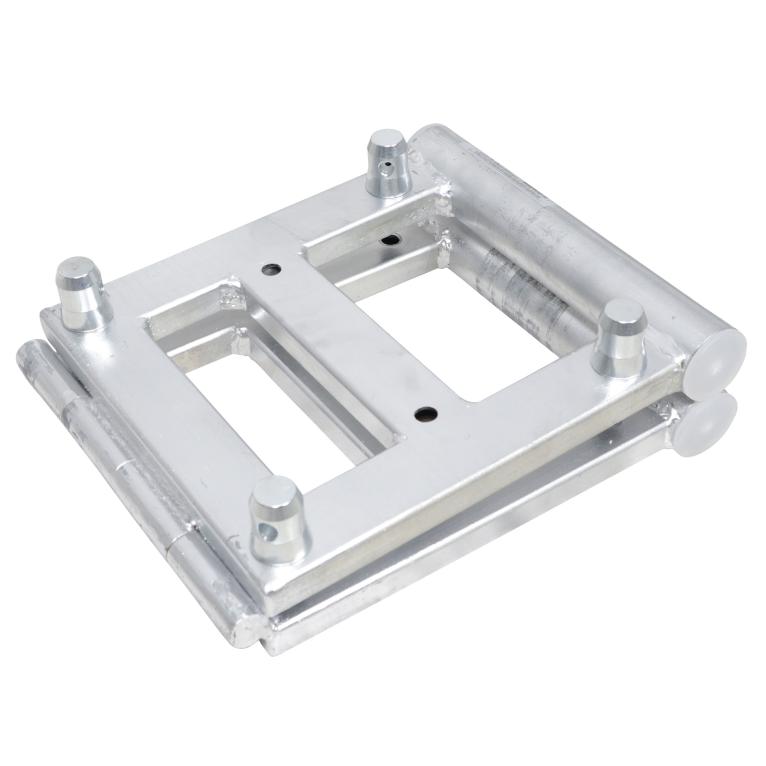

ProX XT-BH180 | 180˚ degree Adjustable Plate Hinge For XT-SQ F34

The ProX XT-BH180 Adjustable Plate-Hinge Truss Plate from the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. It adjusts from 0° to 180° and fits ProX 12" SQ F34 Conical trussing.  Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup!  This product can provide a universal solution for truss angles.

The ProX XT-BH180 is the first trussing hinge from ProX that adjusts from 0° to 180° for unique truss construction projects.  There is a built-in adjustable arm to lock the desired angle between sections of truss and Junction Boxes.  The superior construction quality of ProX trussing products guarantees many years of trouble-free use.

At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of trussing of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

Features:

Manufactured in our Own Factory!
Allows angles not possible with standard trussing corners
One Side Conical Couplers Included
Material: 10mm EN-AWT6 6061 Aluminum

SPECIFICATIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm
Tolerance Free Standard Conical Connector
Main tube wall thickness of .08in
TUV Certified Aluminium Welding
To Fit
XT-SQ Series | F34 Conical Truss


Dimensions
14.50"L x 12.00"W x 4.00"H
Weight: 21.00 lbs

Shipping Dimensions
15.50"L x 13.50"D x 4.50"H
Shipping Weight: 22.00 lbs

UPC
804589614937
