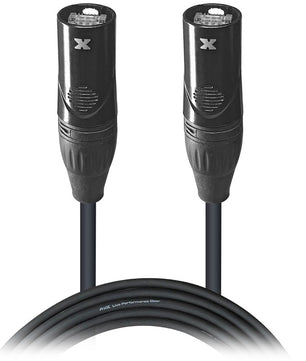

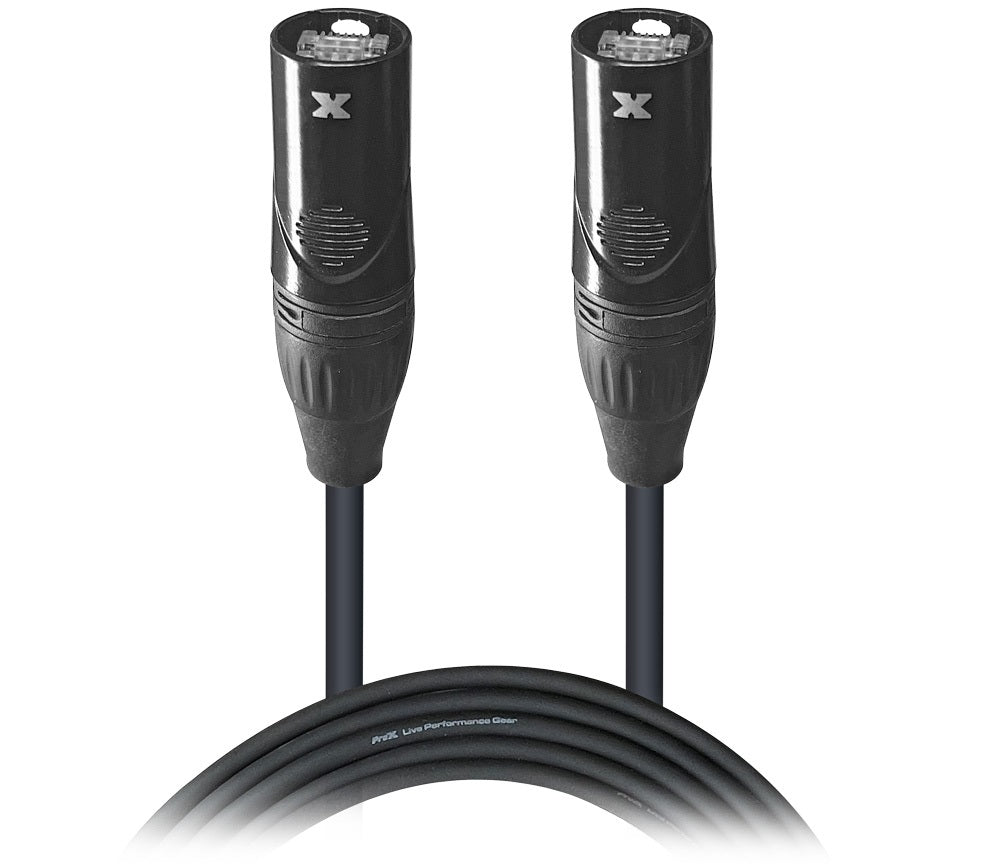

ProX XC-CAT6-50 | 50ft Shielded Cat 6 STP Cable with RJ45 for Network & Stagebox

ProX XC-CAT6-50 | 50ft Shielded Cat 6 STP Cable with RJ45 for Network & Stagebox

$54.99

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

High-Performance Shielded Cat 6 Cable for Network and Stage Connections

The ProX XC-CAT6-50 is a professional-grade 50 ft Shielded Twisted Pair (STP) Category 6 cable designed for touring sound, permanent installations, A/V stage technology, and DMX systems. It ensures uncompromised signal integrity, making it ideal for digital snakes, stageboxes, and data link applications. This cable delivers superior performance with enhanced shielding to minimize interference and maintain optimal data transmission.

ProX XC-CAT6-50 Competitive Differences

50 ft STP Cat 6 Ethernet cable with ProX RJ45 connectors
550MHz bandwidth for high-speed data transmission
Shielded system with aluminum foil and braided/woven screen for superior EMI protection
100% pure copper inner conductor for optimal signal integrity
Complies with CAT6 specifications (TIA/EIA 568B, ISO/IEC 11801, EN 50173)
Thermoplastic polyolefin insulation with no-lead jacket for durability
Compact cable diameter to reduce interference and improve performance
IP65-rated for dust and waterproof protection in mated condition
Individually tested for quality assurance

ProX XC-CAT6-50 Description

The ProX XC-CAT6-50 is built for professional audio, video, and data transmission applications. Compared to Cat 5 and Cat 5e cables, Cat 6 provides higher bandwidth and superior noise resistance, ensuring clean and uninterrupted signal flow. Designed for demanding live sound and installation environments, this cable meets industry standards and is UL Code 444 and National Electrical Code TIA-568-C.2 compliant. Whether used for networking, stage connections, or data transfer, this shielded Cat 6 cable offers high-speed performance and durability. With a rugged outer jacket and advanced shielding technology, it effectively minimizes crosstalk and external interference, making it an essential component for professionals in the entertainment, IT, and broadcast industries.

XC-CAT6-50 Features

Shielded Twisted Pair (STP) Category 6 Ethernet cable
Genuine ProX XC-RJ45M connectors
19 x 0.12 Copper OFC Inner Conductor for pure signal transfer
6 x 16 x 0.12 braided TC shield for superior noise reduction
Aluminum foil shielding for added external interference protection
Cotton & PP Cross shielding for enhanced durability
Thermoplastic polyolefin insulation with no lead jacket
Outer Diameter (O.D.): 6.8mm (1/4”+)
Capacitance: 46 pF/ft.
Bending Radius: 1” minimum
Pulling Tension: 25 ft-lb (110 N) maximum
IP65 rated for dust and water resistance
Complete Coil™ technology for accurate and detailed clarity
Individually tested to ensure quality and performance

XC-CAT6-50 Specifications

Bandwidth: 550MHz
Maximum 10GBASE-T length: 180 ft (55m)
Compliance: TIA/EIA 568B, ISO/IEC 11801, EN 50173
Material: 100% pure copper wire (not copper-clad aluminum)
UL Code 444 and National Electrical Code TIA-568-C.2 compliant
Product Dimensions: 50 ft length
Shipping Dimensions: 2.00"H x 3.00"W x 14.00"L
Shipping Weight: 3.00 lbs
UPC: 019372410072

This ProX STP Cat 6 cable ensures reliability, performance, and durability for all professional networking and stage applications.
