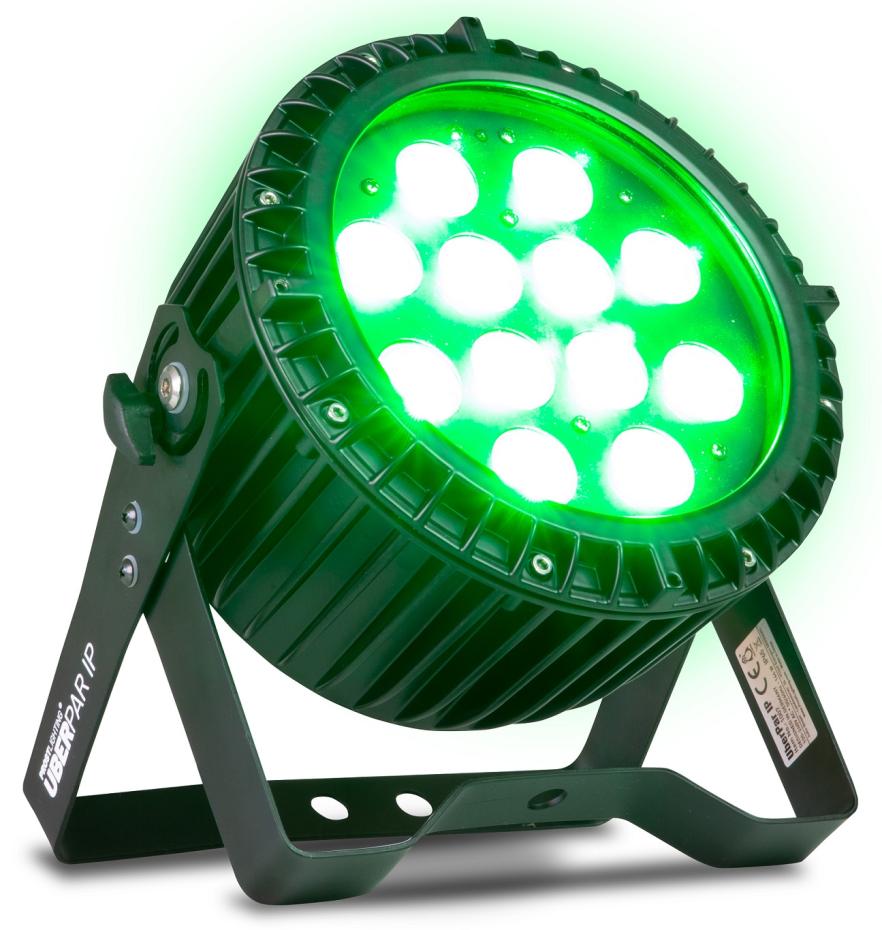

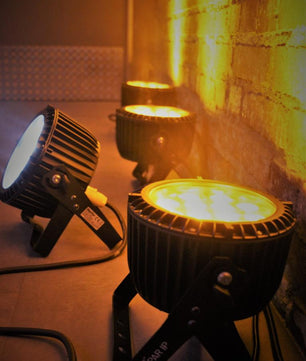

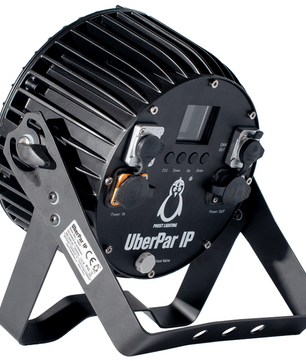

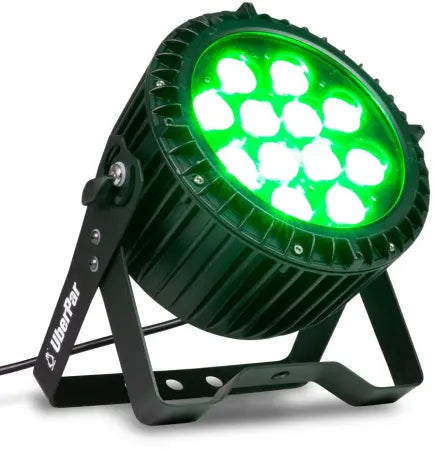

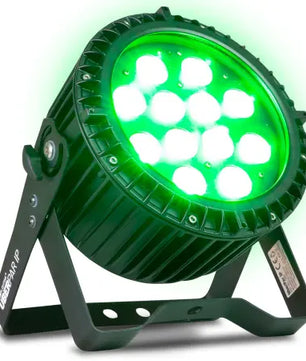

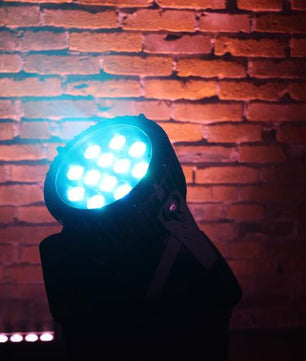

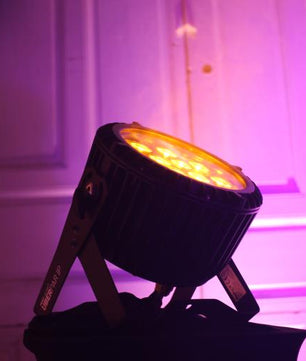

Prost Lighting UberPar IP | 216W Hex LED Outdoor Wash Par
Key Facts:
- Light source: 12x 18W RGBAW+UV (Hex) Color LEDs
- Beam angle: 25°
- Control: DMX-512, Sound Active, Auto Program, Presets, Remote Control
- Outdoor Rated: IP65
- Photometric Data: 13,700 Lux @ 1m / 3,635 Lux @ 2m
- Gel Frame & Barn Doors available
Competitive Differences:
- Built to CE & UL Specs
- "No Fan" Technology for Ultra Low Noise and Less Moving Parts
- No Pig-tails | Completely Removable Cords
- Compatible with both IP and standard (non-IP) Power/DMX cords
- IR Remote (included free)
- 3-Year USA Warranty
Description:

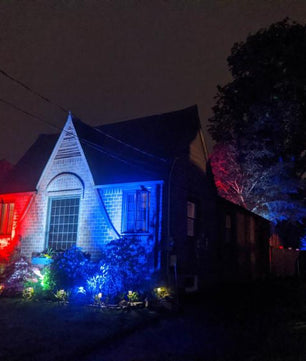

The Prost Lighting UberPar IP is an ultra-powerful, universal LED wash par for events, DJs, catering, and architectural applications, indoors or outside (check out the UberPar for indoor only version)! Sporting a total LED output of 216 Watts, this spotlight is the brightest in its class. The 12x 18 Watt Hex Color LEDs provide a lot of light! But don’t worry, you can always dim it down if necessary.
The UberPar IP was engineered and designed in Germany to UL and CE certification specs.
These can be controlled through standard DMX-512 or programmed directly on the unit to stand-alone, sound active, or auto program. The integrated RGBAW+UV LEDs offer advanced color mixing, as well as all the standard colors, pure white (6500K), amber (gold tone), and ultraviolet (black light).
Translation Note:
Uber Par: The German word “Uber” means “Above”. And “Par”, well, that can be taken two ways. We’re confident that you’ll find this Par Can, “Above Par”.
Features:
- 12x 18W RGBAW+UV (Hex) Color LEDs
- White Temperature: 6500 K
- Beam Angle: 25 degrees

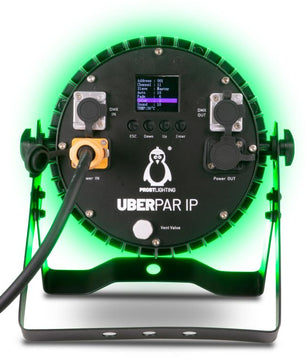

- TFT Digital Display in Plain English
- Stand Alone / Auto Mode Programs
- Sound Active Mode
- Built-in Preset Macro Colors
- 4 DMX Channel Modes: 3, 6, 8, 11
- Dimmer Mode: 16 Bit
- 4 Dimming Curves
- PWM: 16 Bit, PWM @ 5200 Hz, flicker-free
- DMX Protocol: DMX-512
- Tough Aluminum Housing
- Seetronic branded PowerCon Cable

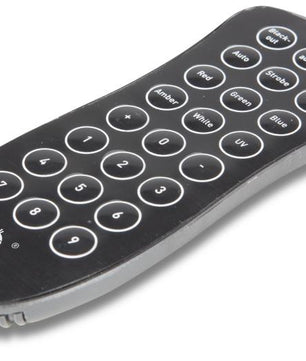

- Built-in: IR Remote Control Receiver (remote included)
- No Fan - Quiet!
- CE, RoHs
Specifications:
- Light source: 12x 18 Watt TyanShine LEDs
- Colour spectrum: RGBAW+UV
- Optical lens: 25°
- DMX mode: 3/6/8/11 CH
- Control Mode: DMX-512, IR Remote, Master/Slave, Standalone, Sound Active
- Dimming curves: Linear, Curve, Theatre, Studio
- Dimming resolution: 16-bit of 65536 Grades
- Refresh rate: 25,000Hz PWM Frequency
- Strobe: 0-20 Hz
- Housing material: Aluminum Die-casting
- Display: Digital TFT

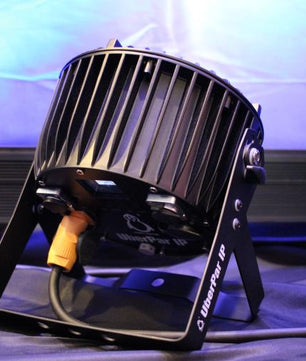

- Cooling: Fanless / Noiseless with highly efficient convection cooling
- Protection: Temperature Protection
- Security: Menu Lock
- Power cord: Rated for 16 Amps
- Frequency: 50/60 Hz
- Voltage: 100-240V
- Max Power Consumption: 144 Watts
- Luminous flux: 6480 lumens
- Photometric Data: 13,700 Lux @ 1m / 3,635 Lux @ 2m
- LUX Rating Breakdown:
| Color |
All |
All |
|
|
|
|
| Distance |
1m |
2m |
|
|
|
|
| 25° |
13,700 |
3,635 |
|
|
|
|
| Color |
R |
R |
G |
G |
B |
B |
| Distance |
1m |
2m |
1m |
2m |
1m |
2m |
| 25° |
2,280 |
610 |
2,770 |
760 |
3,250 |
860 |
| Color |
A |
A |
W |
W |
UV |
UV |
| Distance |
1m |
2m |
1m |
2m |
1m |
2m |
| 25° |
1,400 |
380 |
3,650 |
960 |
640 |
170 |
LED Measurements:
- Wavelength:
- Red: 620-625 nm
- Green: 525-530 nm
- Blue: 460-465 nm
- Amber: 590-594 nm
- UV: 398-403 nm
- White Color Temperature: 6500-7000 K
PWM Rate:
5200Hz

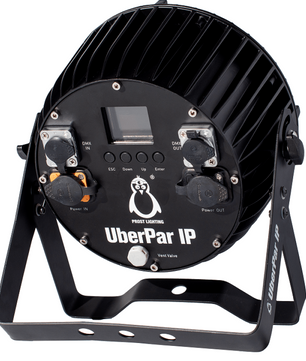

Power Specifications:
- Voltage Input: 100-240V AC, 50/60Hz

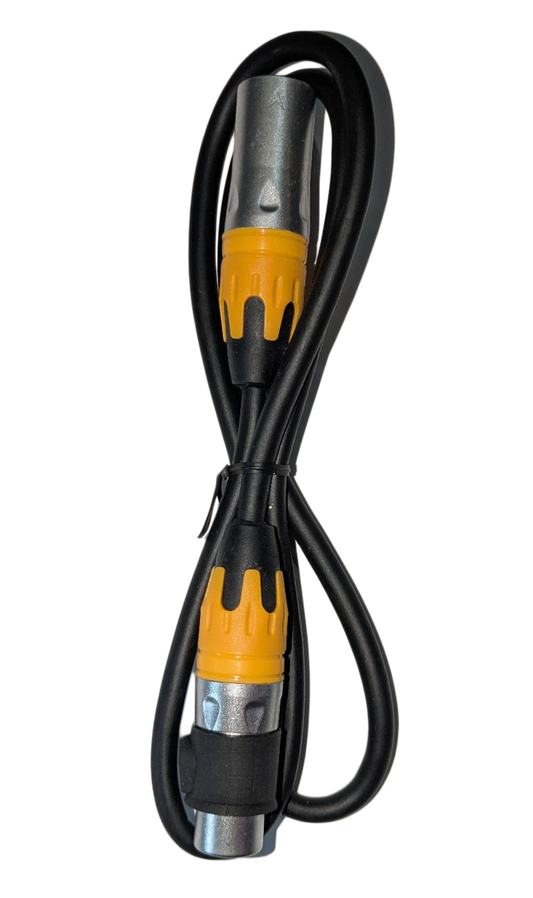

- 3 Pin XLR DMX in/out
- Dimensions: 8.5 x 8.5 x 4.75 inches, 11 lbs
- IP Rating: IP65
Included Accessories:

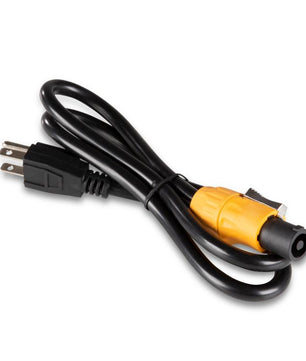

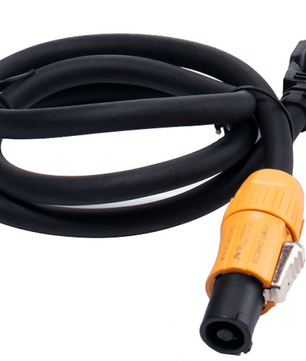

- IP PowerCon AC cable
- Double Bracket Yoke
- IR-Remote Control
