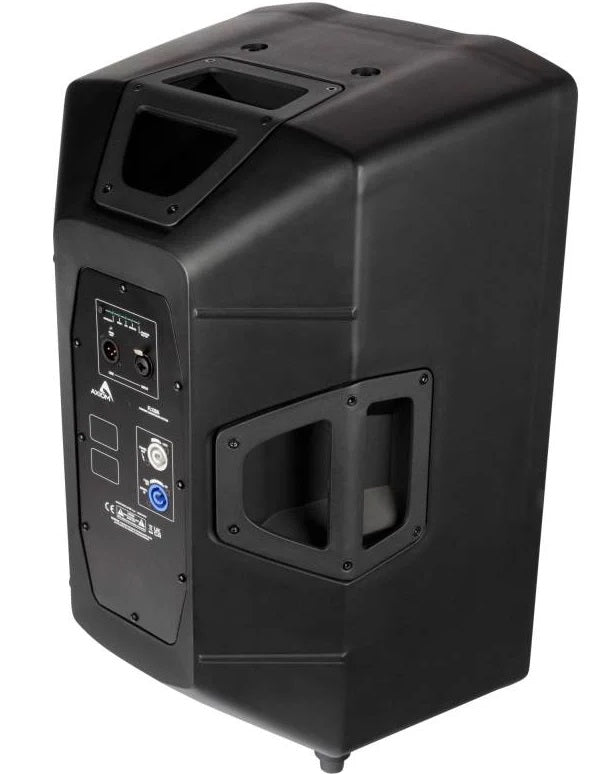

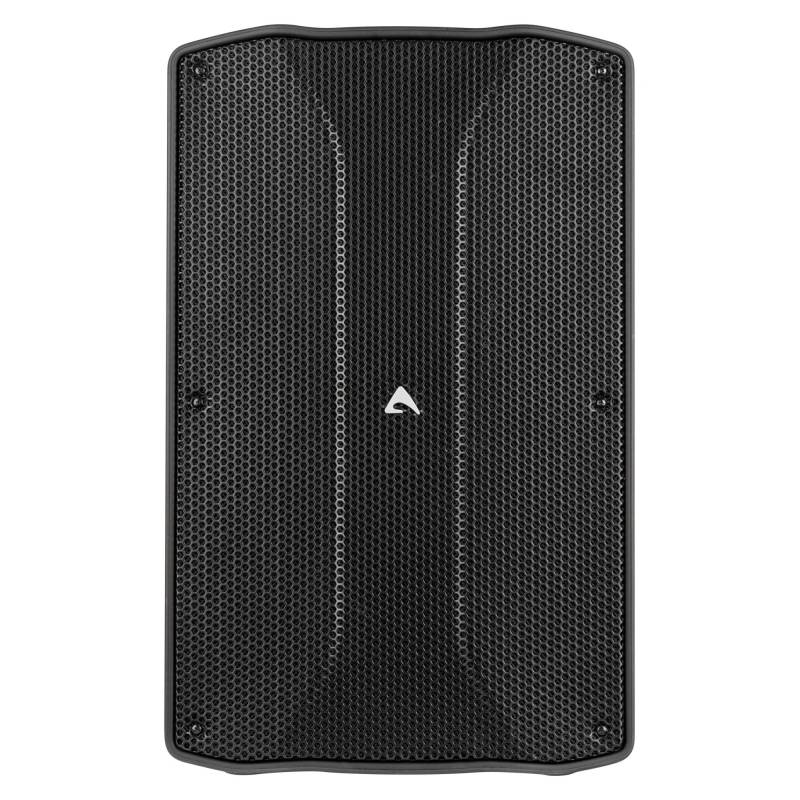

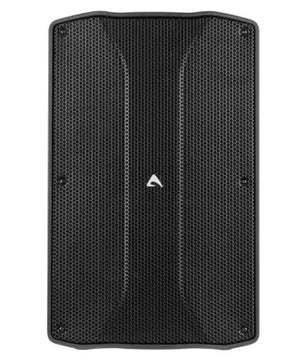

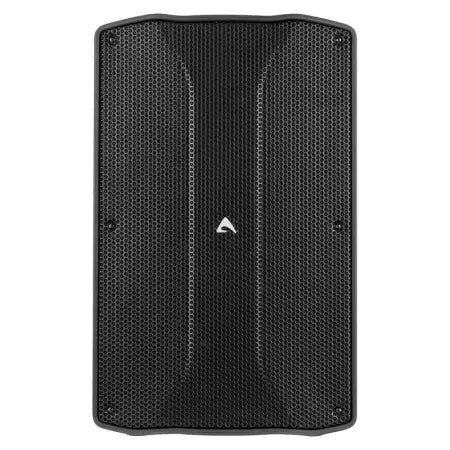

Proel FL120A Axiom | 12in - 132dB

High-Performance Powered Point Source Loudspeaker

The Proel Axiom FL120A is a versatile two-way powered point source loudspeaker designed for superior sound reinforcement. Featuring a 12” neodymium woofer and a 1” high-frequency compression driver, this compact yet powerful speaker delivers exceptional clarity, controlled dispersion, and high output. Whether used for live performances, installations, or stage monitoring, the FL120A provides high-quality sound in a lightweight and portable enclosure.

Proel Axiom FL120A Competitive Differences

• High-performance two-way powered loudspeaker with 12” neodymium woofer and 1” HF compression driver
• Custom-designed HF horn for precise 90° x 60° dispersion
• Advanced DSP processing with FIR filters for linear phase response and optimized crossover
• Five selectable EQ presets for versatile sound customization
• Class D amplifier with SMPS delivering 900W LF and 300W HF power
• Symmetrical 42° wedge angle for use as a stage monitor
• Lightweight and durable polypropylene enclosure with multiple mounting options
• PowerCon® input and output connectors for secure power linking
• Balanced XLR input and output for professional connectivity

Proel Axiom FL120A Description

The Proel Axiom FL120A is engineered for high-performance sound reinforcement across various applications, including live music venues, corporate events, and houses of worship. Its bi-amplified design utilizes a state-of-the-art Class D amplifier module, ensuring superior sound definition, high efficiency, and low distortion. Designed with a 12” low-frequency neodymium driver and a 1” exit high-frequency compression driver with a 1.75” aluminum voice coil, the FL120A provides excellent transient response and extended frequency range. The system’s custom-designed HF horn ensures even coverage, making it ideal for front-of-house applications, pole-mounted setups, or as a powerful stage monitor. A built-in DSP platform with 56-bit precision processing and FIR filters ensures precise crossover alignment and optimized phase response. Users can choose from five different EQ presets, tailoring the speaker’s performance to different environments. The rugged polypropylene enclosure features a 35mm pole mount, three recessed handles for portability, and M10 rigging points for easy installation. For enhanced low-frequency extension, the FL120A can be paired with Axiom SW series subwoofers, such as the SW18A. With its lightweight design, advanced DSP, and powerful Class D amplification, the FL120A is an exceptional choice for professional audio applications.

FL120A Features

• Powered two-way loudspeaker with 12” neodymium woofer
• 1” HF compression driver with 1.75” aluminum voice coil
• Custom HF horn providing 90° x 60° coverage
• Advanced DSP with FIR filtering for optimal phase response
• Class D amplifier with SMPS (900W LF + 300W HF)
• Five EQ presets for different applications
• Symmetrical 42° wedge angle for stage monitoring
• 35mm pole mount and M10 rigging points
• Balanced XLR input and link output
• Neutrik PowerCon® power input and link output

FL120A Specifications

• System: 2-way vented enclosure
• Frequency Response (-6dB): 50 Hz - 20 kHz
• Coverage Angle: 90° H x 60° V
• Max SPL (Peak): 132 dB SPL @ 1m
• LF Driver: 12” neodymium woofer, 2.5” voice coil
• HF Driver: 1” compression driver, 1.75” aluminum voice
